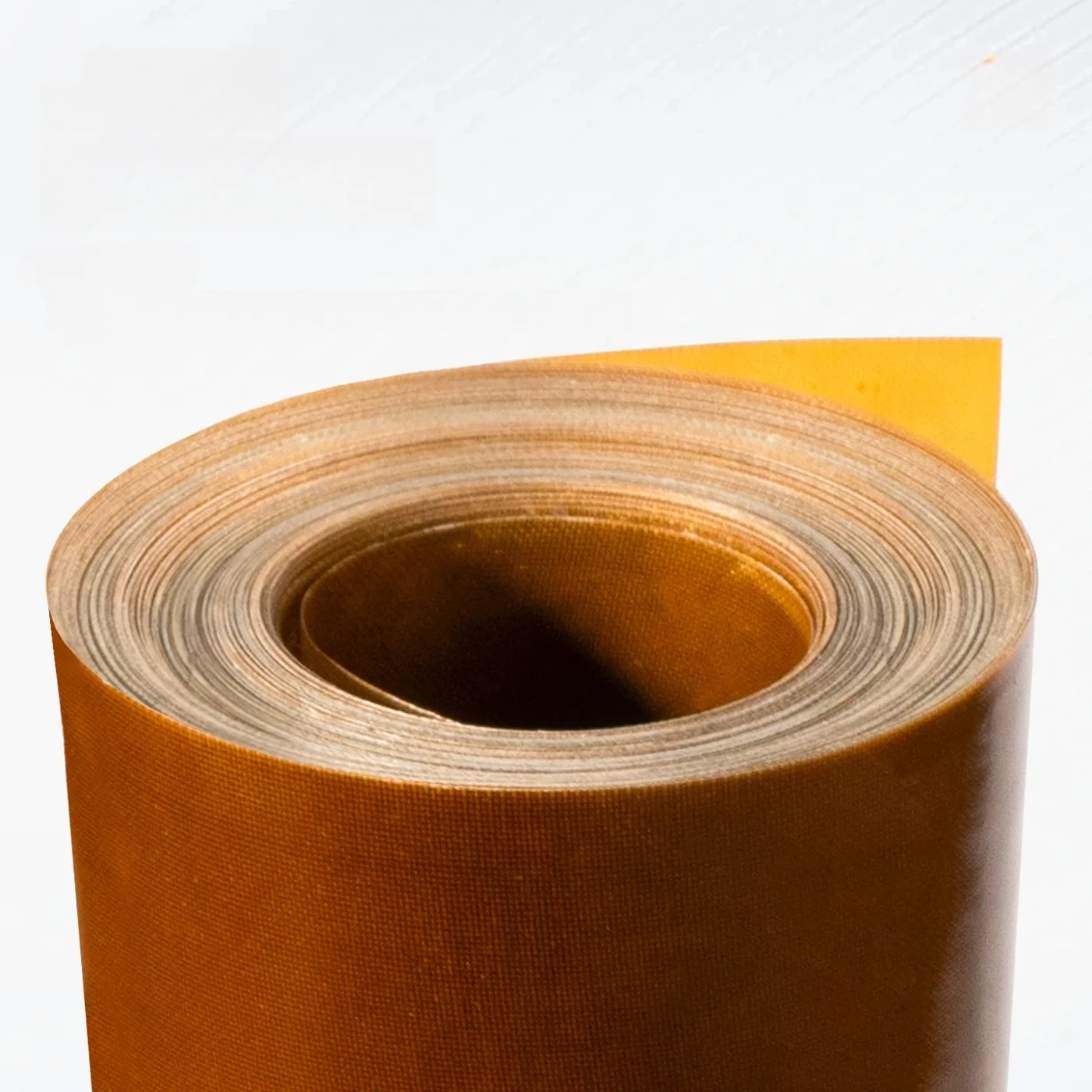

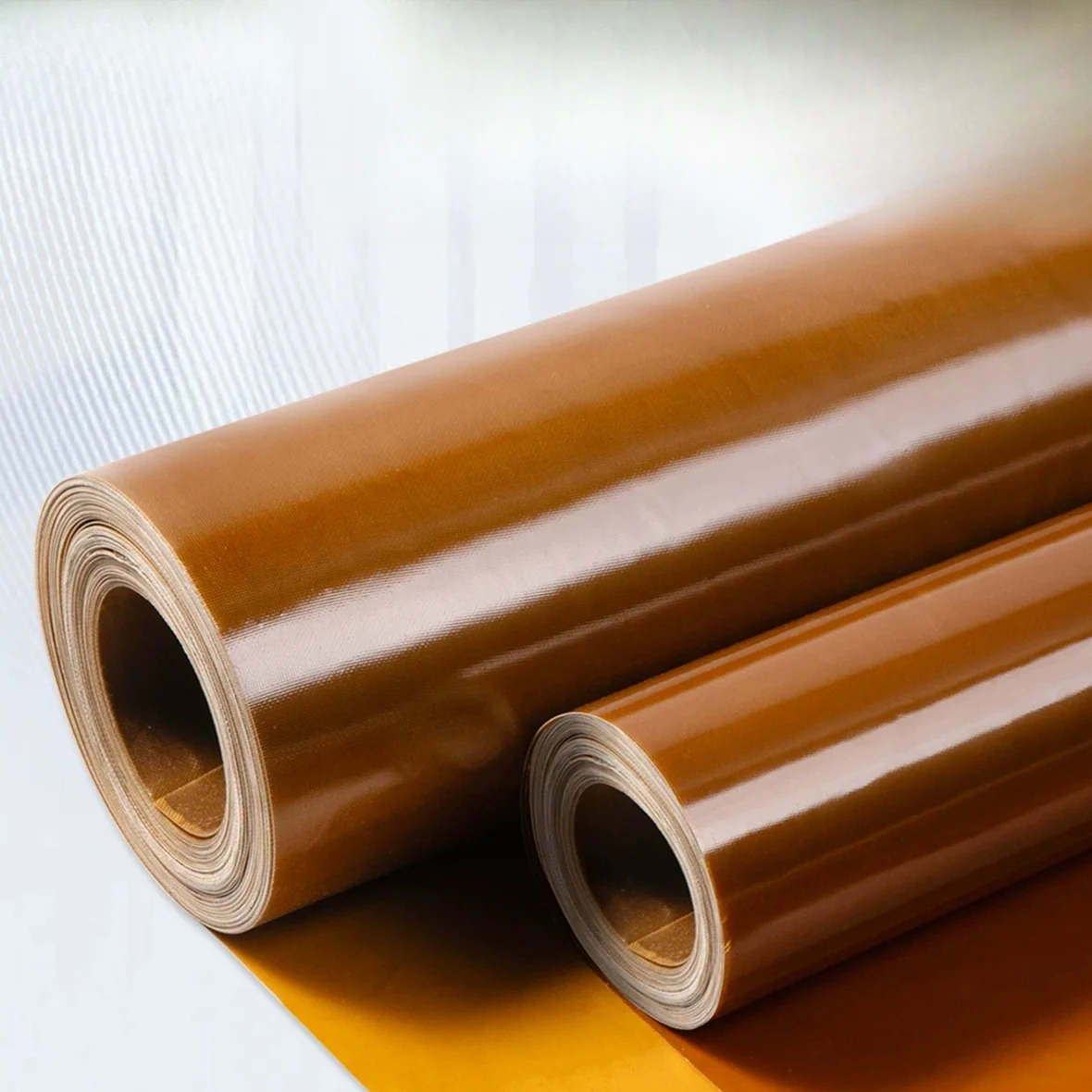

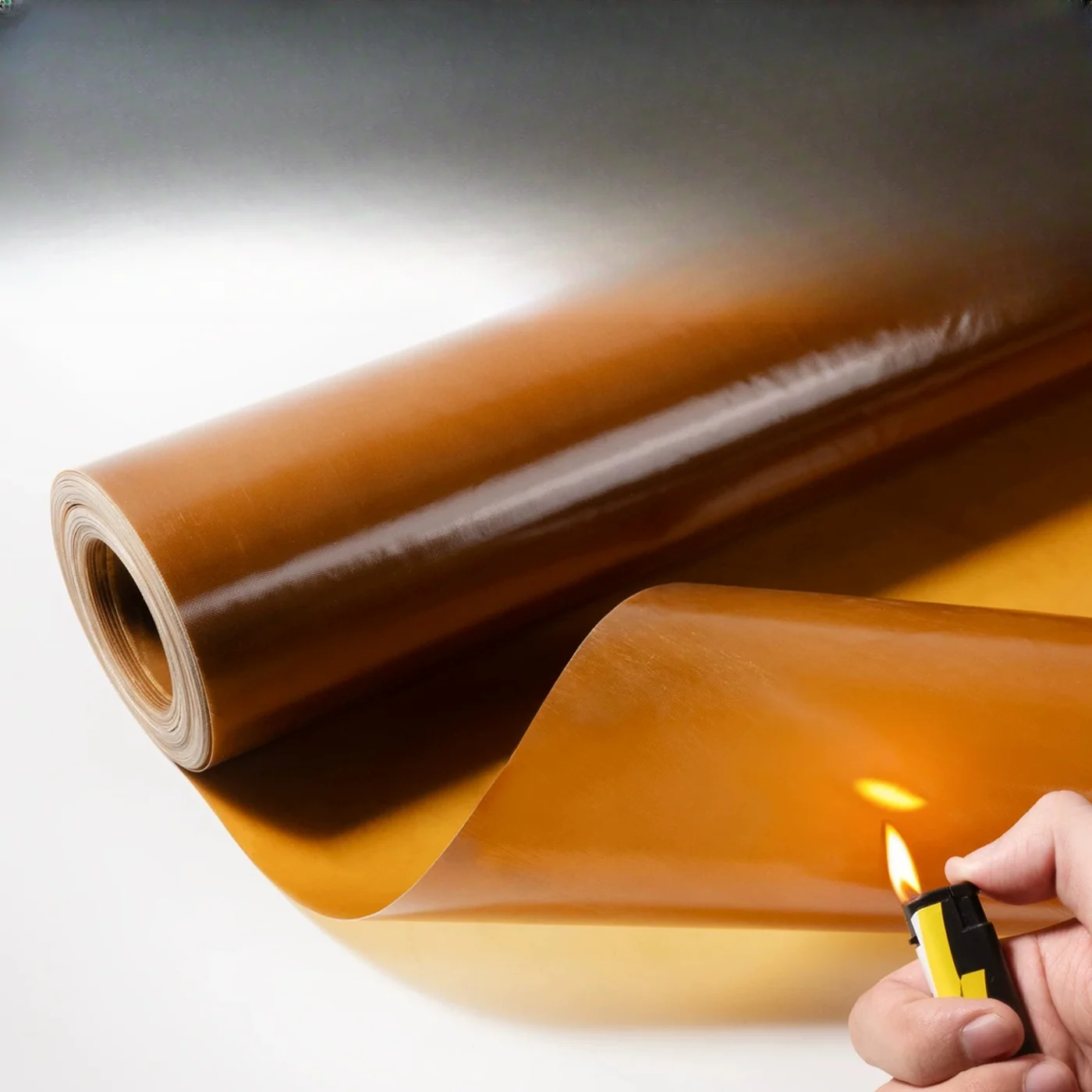

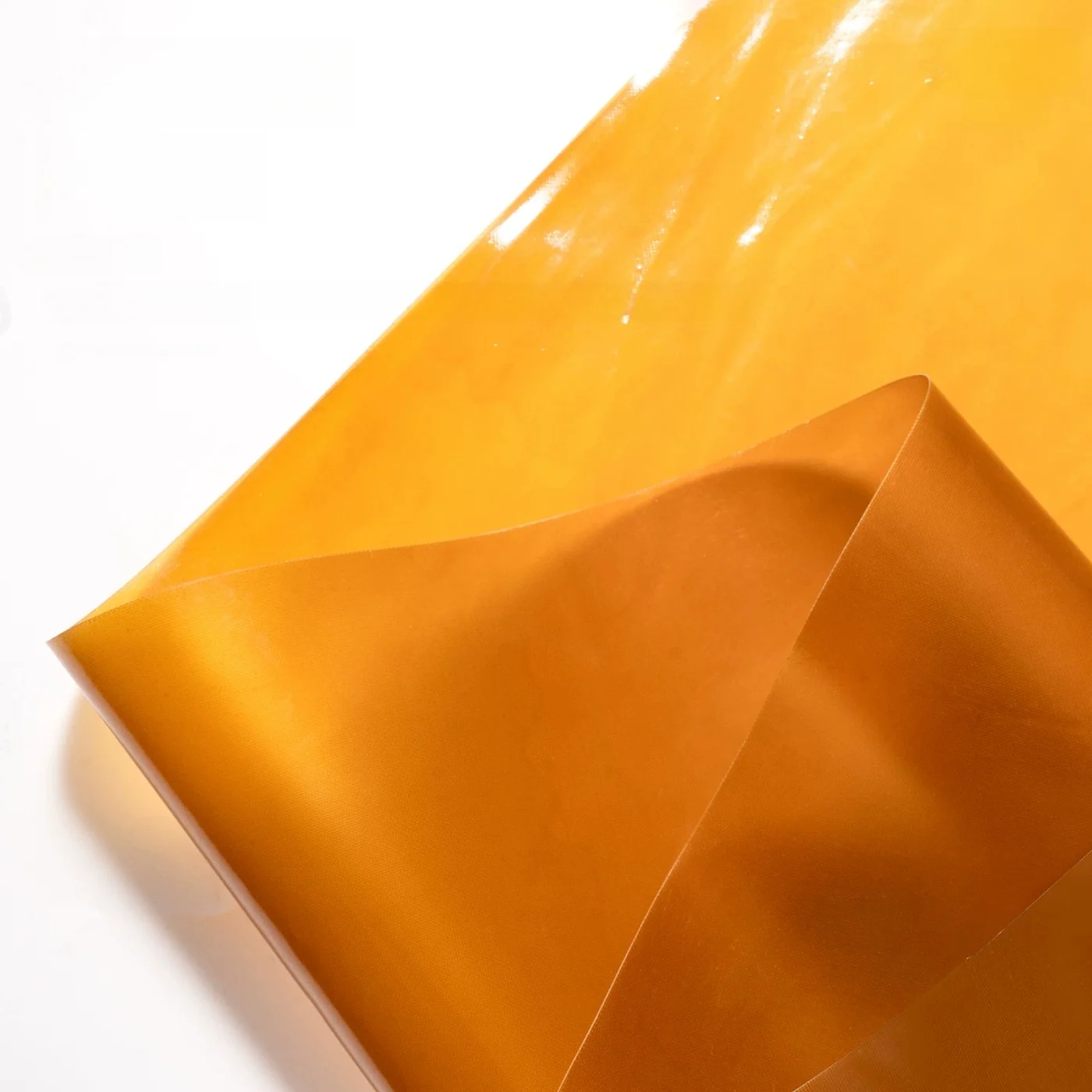

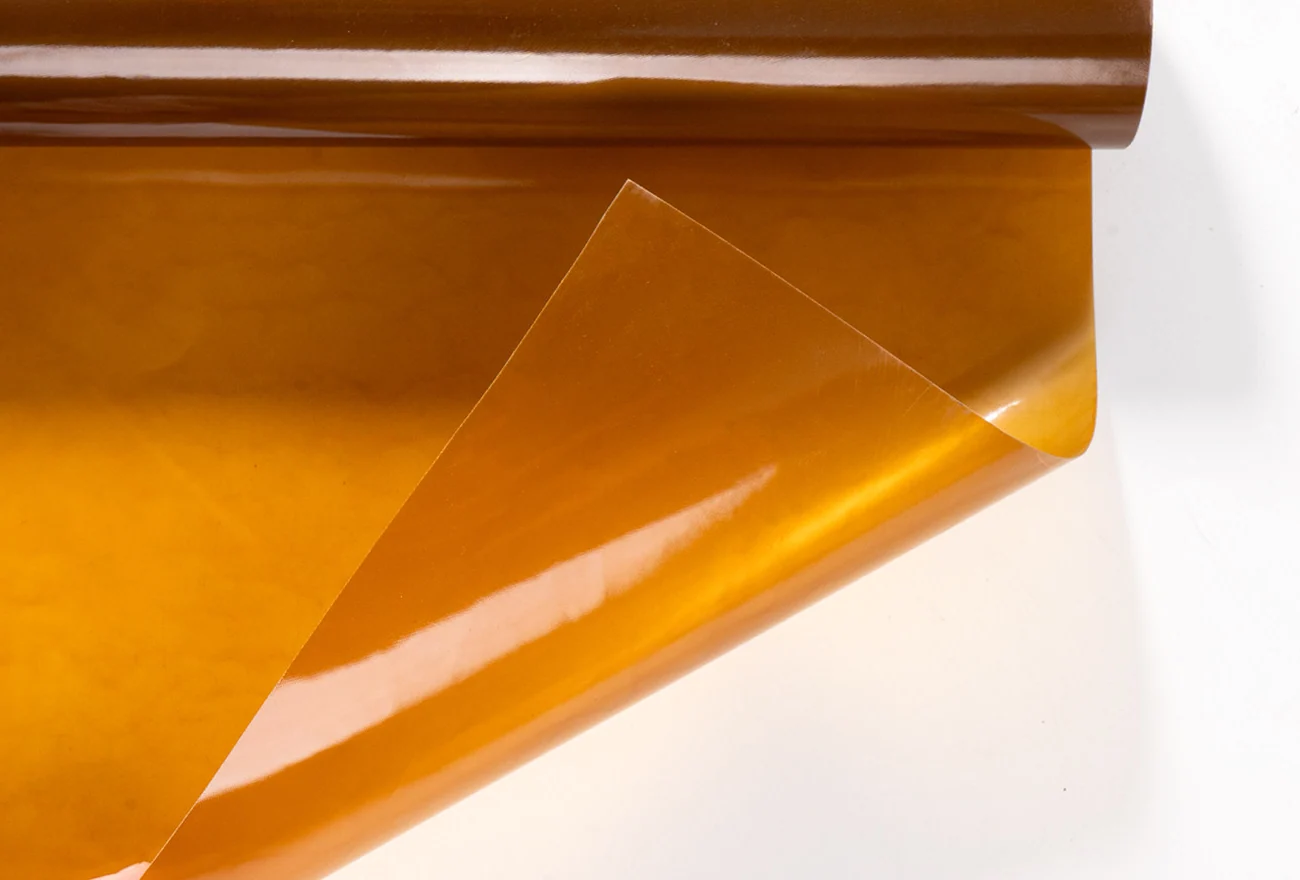

Yellow Varnished Electrical Insulation Cloth

Yellow varnished insulating cloth in 0.15–0.35 mm formats for coil wrapping, electrical liners and flexible separation layers.

  • Varnish-impregnated cloth
  • Meter and kilogram supply options
  • Flexible sheet and roll material
Request a Quote -> Custom Size ->
Product Overview

Yellow Varnished Electrical Insulation Cloth Supplier

The varnish binds the fabric and provides a continuous surface for insulating wraps. Thickness affects flexibility at corners and the build around a winding. Meter-based and weight-based supply options serve different cutting operations; include the required blank dimensions when ordering converted pieces.

Technical Specifications

Product Parameters

Material and construction Varnish-impregnated electrical fabric
Standard formats 0.35 mm Varnished cloth / kg; 0.25 mm Varnished cloth / kg; 0.20 mm Varnished cloth / kg; 8 listed formats
Ordering model HT-022
Price Request a Quote
Construction options Varnish-impregnated cloth; Meter and kilogram supply options; Flexible sheet and roll material
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-022-P001 0.35 mm Varnished cloth / kg Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P002 0.25 mm Varnished cloth / kg Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P003 0.20 mm Varnished cloth / kg Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P004 0.17 mm Varnished cloth / kg Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P005 0.17 mm thickness × 1.25 width Varnished cloth /1 m Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P006 0.2 mm thickness × 1.25 width Varnished cloth /1 m Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P007 0.25 mm thickness × 1.25 width Varnished cloth /1 m Varnish-impregnated electrical fabric Roll / cut length Request a Quote
HT-022-P008 0.15 mm thickness × 1.25 width Varnished cloth /1 m Varnish-impregnated electrical fabric Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Coil wrapping
  • Electrical equipment liners
  • Flexible insulating barriers
Customization Options

Yellow Varnished Electrical Insulation Cloth Ordering Options

Send Requirement ->

For Yellow Varnished Electrical Insulation Cloth, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Varnish-impregnated electrical fabric
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which gauges are listed for yellow varnished insulation cloth?

Weight-based entries list 0.17, 0.20, 0.25 and 0.35 mm cloth. Meter-based entries include 0.15, 0.17, 0.2 and 0.25 mm thicknesses. The required supply basis is part of the selected specification.

Can I treat the kilogram and meter entries as the same order unit?

No. The table has separate / kg and /1 m descriptions. Meter-based entries also give a width value of 1.25 without a stated unit; confirm that width unit and the order basis before quotation.

What material is used for Yellow Varnished Electrical Insulation Cloth?

The specified material is varnish-impregnated electrical fabric.

What should I include in a quotation request?

For model HT-022, send the selected SKU and order quantity. Include cloth thickness, meter or kilogram quantity basis and confirmed width. Pricing is by quotation for the selected specification and quantity.
