DMD and DM Motor Insulation Laminates

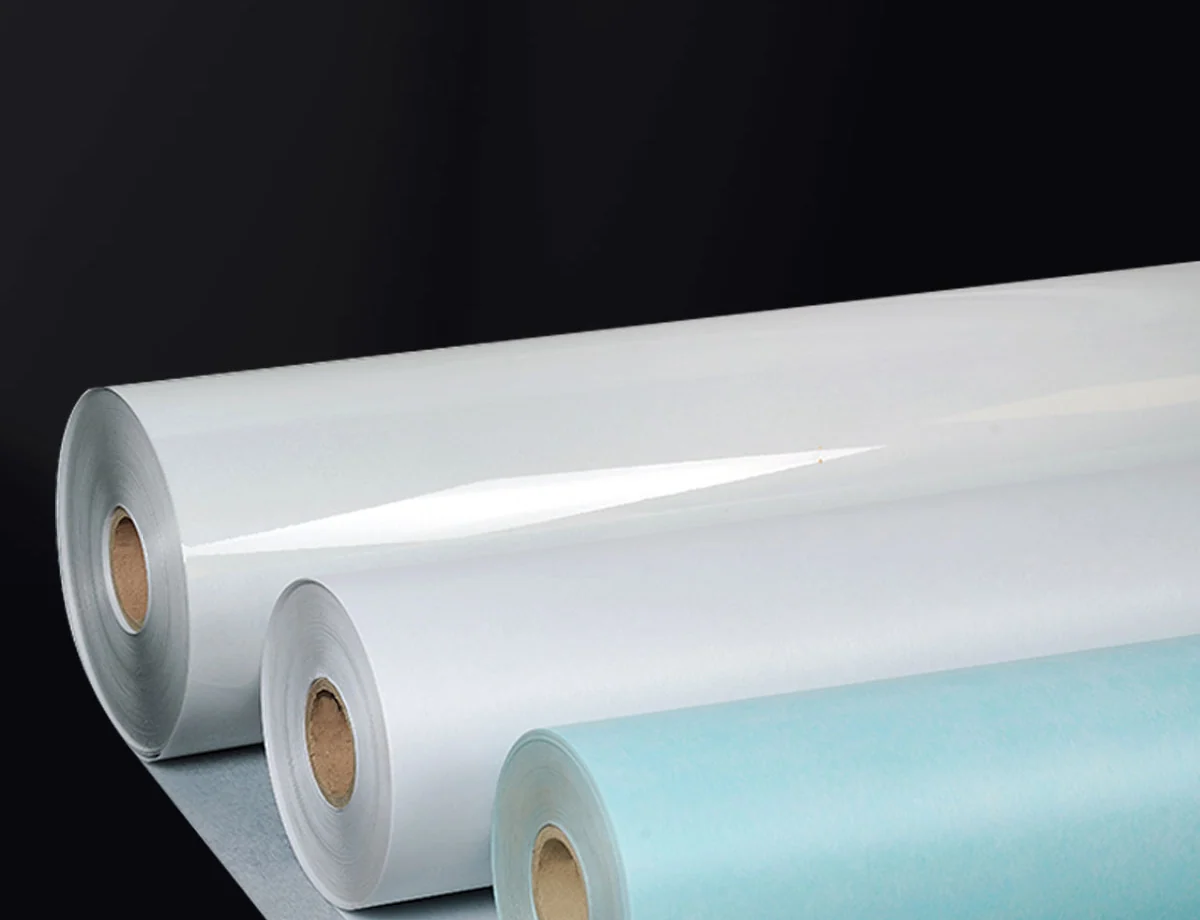

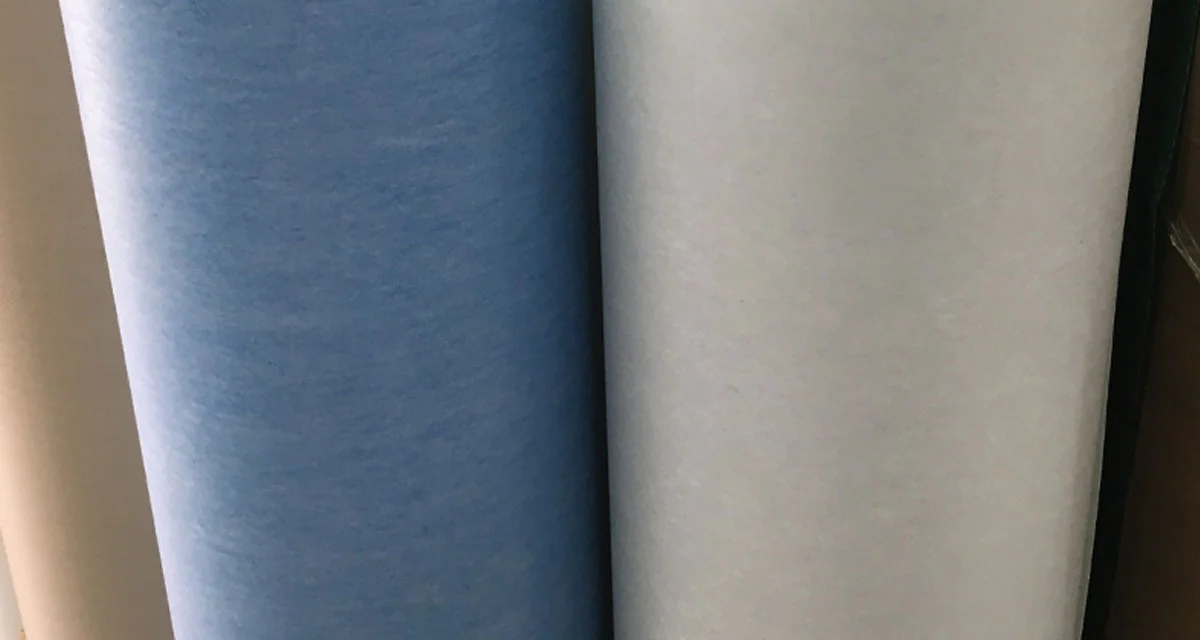

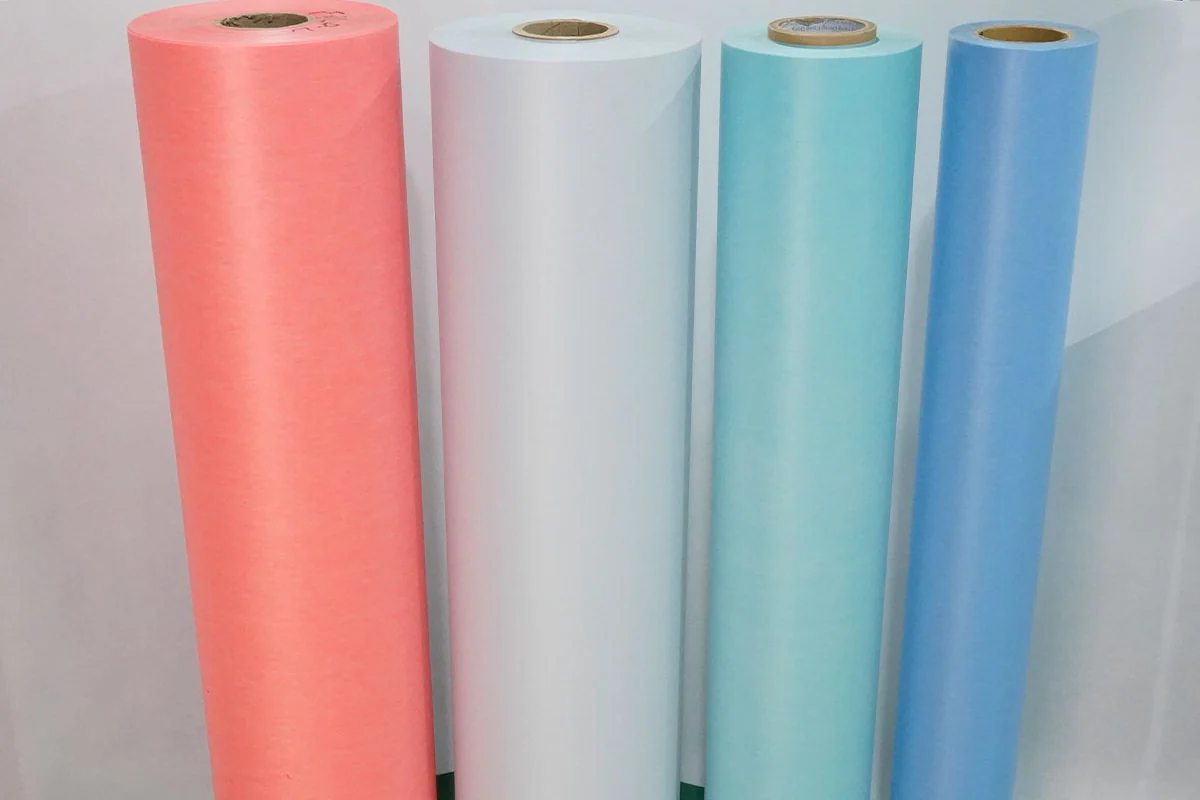

DMD and DM insulation laminates in white, pink and green formats for motor slots, phase separation and folded coil liners.

  • DM and DMD constructions

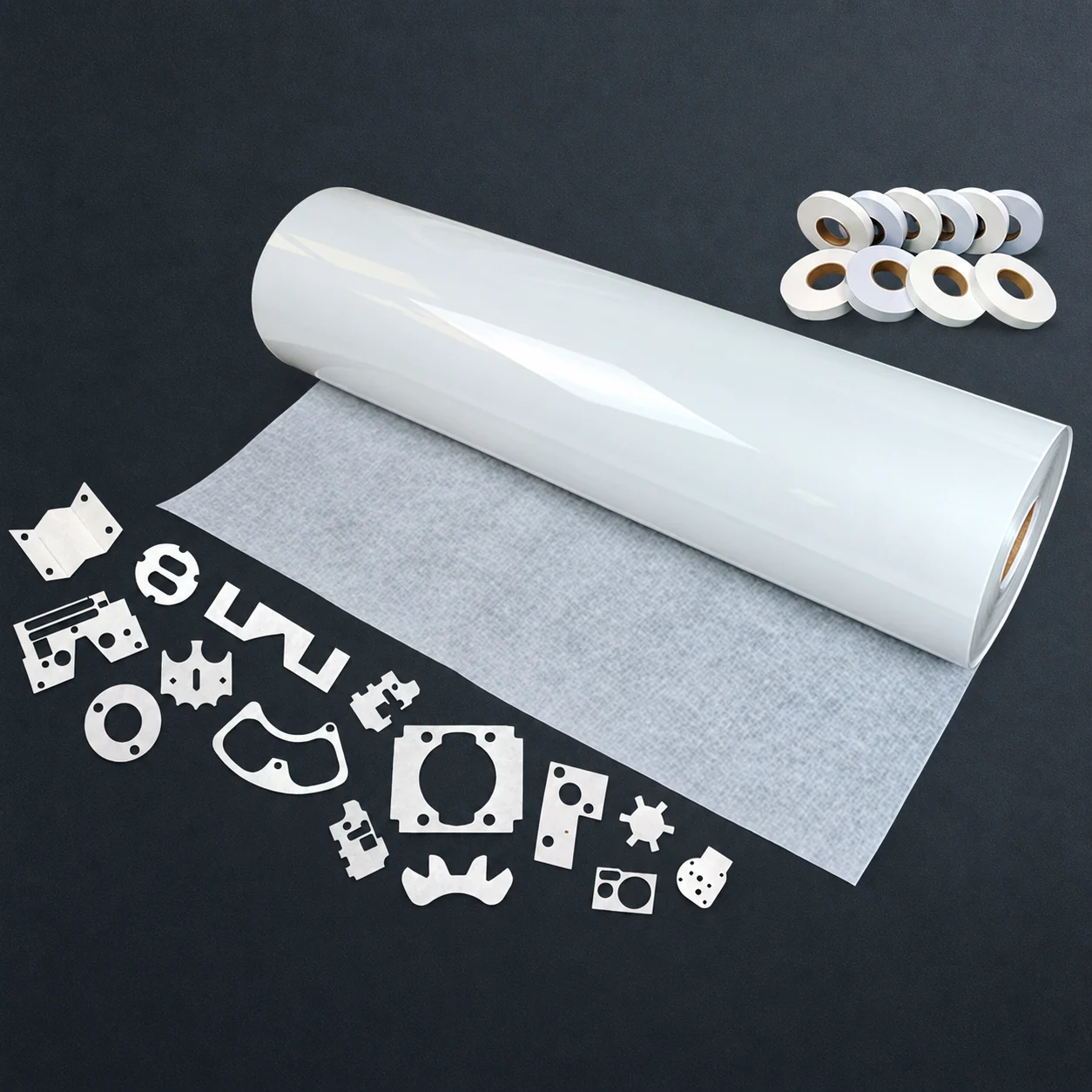

  • Sheet and slit-roll options
  • Adhesive-backed 0.25 mm variant
Request a Quote -> Custom Size ->
Product Overview

DMD and DM Motor Insulation Laminates Supplier

DMD combines nonwoven faces with a polyester-film core; DM has a different layer arrangement. The laminate thickness must fit the slot without crowding conductors or creating sharp folds. Order the construction and finish explicitly when replacing an existing insulation liner.

Technical Specifications

Product Parameters

Material and construction Polyester film laminated with polyester nonwoven
Standard formats DMD 0.15 mm × 1 m × 1 m; DMD 0.2 mm × 1 m × 1 m; DMD 0.25 mm × 1 m × 1 m; 22 listed formats
Ordering model HT-005
Price Request a Quote
Construction options DM and DMD constructions; Sheet and slit-roll options; Adhesive-backed 0.25 mm variant
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-005-001 DMD 0.15 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-002 DMD 0.2 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-003 DMD 0.25 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-004 DMD 0.3 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-005 DMD 0.4 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-006 DMD 0.5 mm × 1 m × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-007 DM 0.15 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-008 DM 0.2 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-009 DM 0.25mm1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-010 DM 0.3 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-011 F-grade variant DMD 0.15 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-012 DMD 0.17 mm × 1 M Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-013 F-grade variant DMD 0.2 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-014 F-grade variant DMD 0.25 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-015 F-grade variant DMD 0.3 mm × 1 m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote

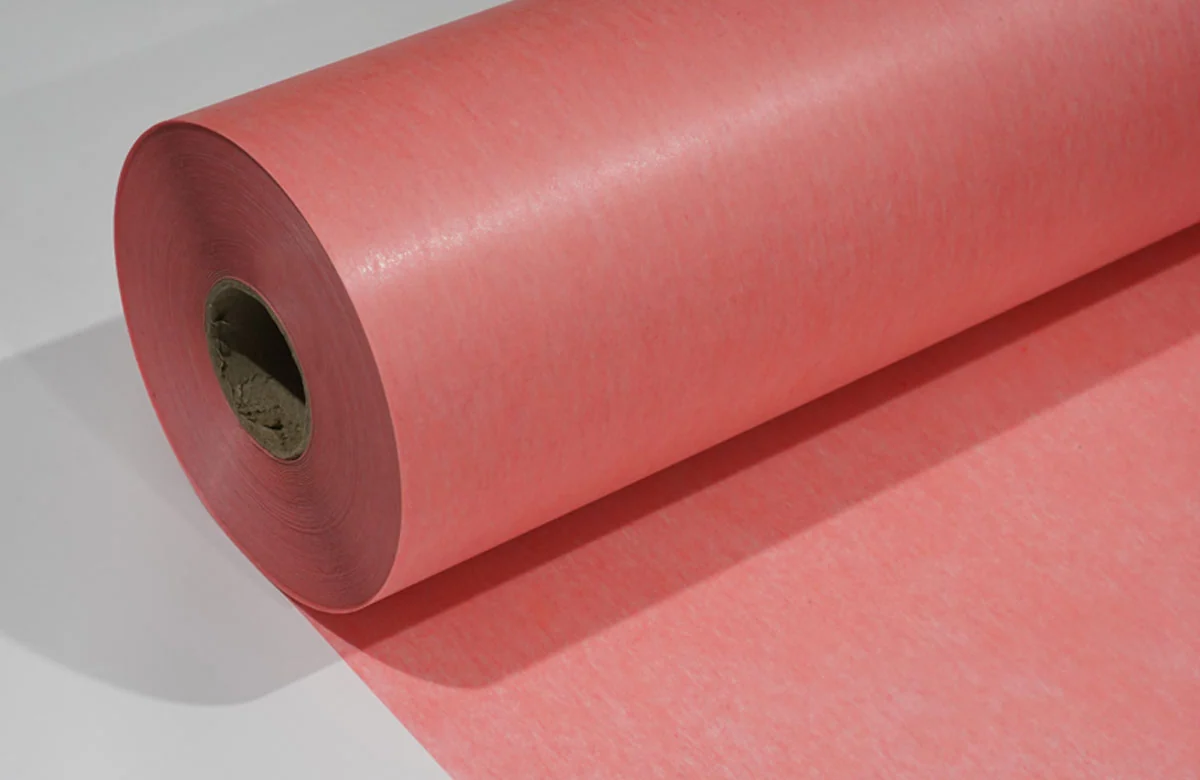

HT-005-016 F-grade variant DMD 0.15 mm × 1 m Pink Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-017 F-grade variant DMD 0.17 mm × 1 m Pink Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-018 F-grade variant DMD 0.2 mm × 1 m Pink Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-019 F-grade variant DMD 0.25 mm × 1 m Pink Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-020 F-grade variant DMD 0.3 mm × 1 m Pink Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-021 Green F-grade 0.4 mm × 1 square m Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote
HT-005-023 DMD 0.25 mm × 1 m Adhesive-backed Polyester film laminated with polyester nonwoven Pack / cut part Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Motor slot liners
  • Phase barriers
  • Coil winding insulation
Customization Options

DMD and DM Motor Insulation Laminates Ordering Options

Send Requirement ->

For DMD and DM Motor Insulation Laminates, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Polyester film laminated with polyester nonwoven
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which DM and DMD laminate formats are listed?

DMD entries include 1 m × 1 m sheets in 0.15, 0.2, 0.25, 0.3, 0.4 and 0.5 mm thicknesses. DM entries include 1 m-wide formats in 0.15, 0.2, 0.25 and 0.3 mm thicknesses. Other DMD variants are individually identified in the table.

Is adhesive backing included on every DMD laminate?

No. The table specifically identifies an adhesive-backed DMD entry at 0.25 mm × 1 m. Other entries have different construction or color descriptions; request the adhesive-backed SKU when that backing is required.

What material is used for DMD and DM Motor Insulation Laminates?

The specified material is polyester film laminated with polyester nonwoven.

What should I include in a quotation request?

For model HT-005, send the selected SKU and order quantity. Include DM or DMD construction, thickness, sheet or slit-roll dimensions and adhesive-backing requirement. Pricing is by quotation for the selected specification and quantity.
