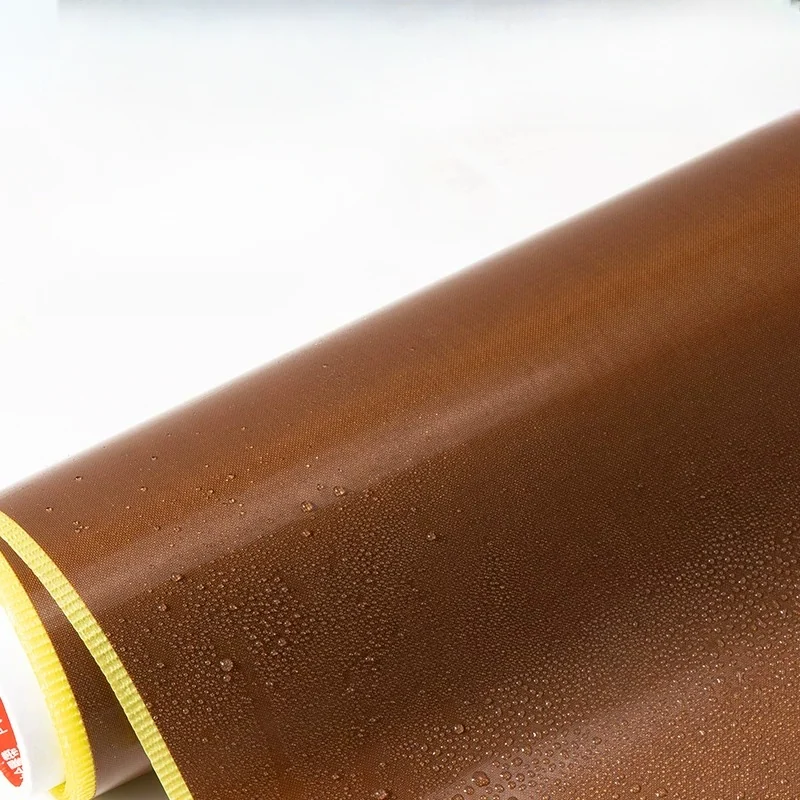

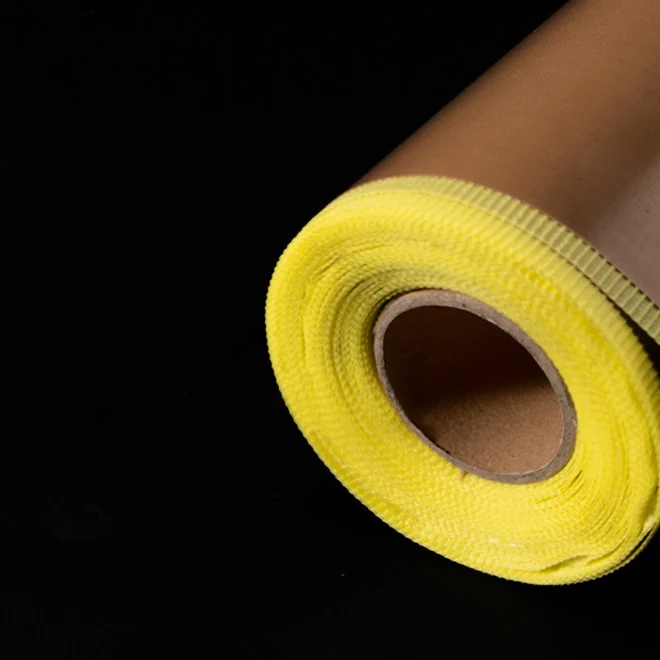

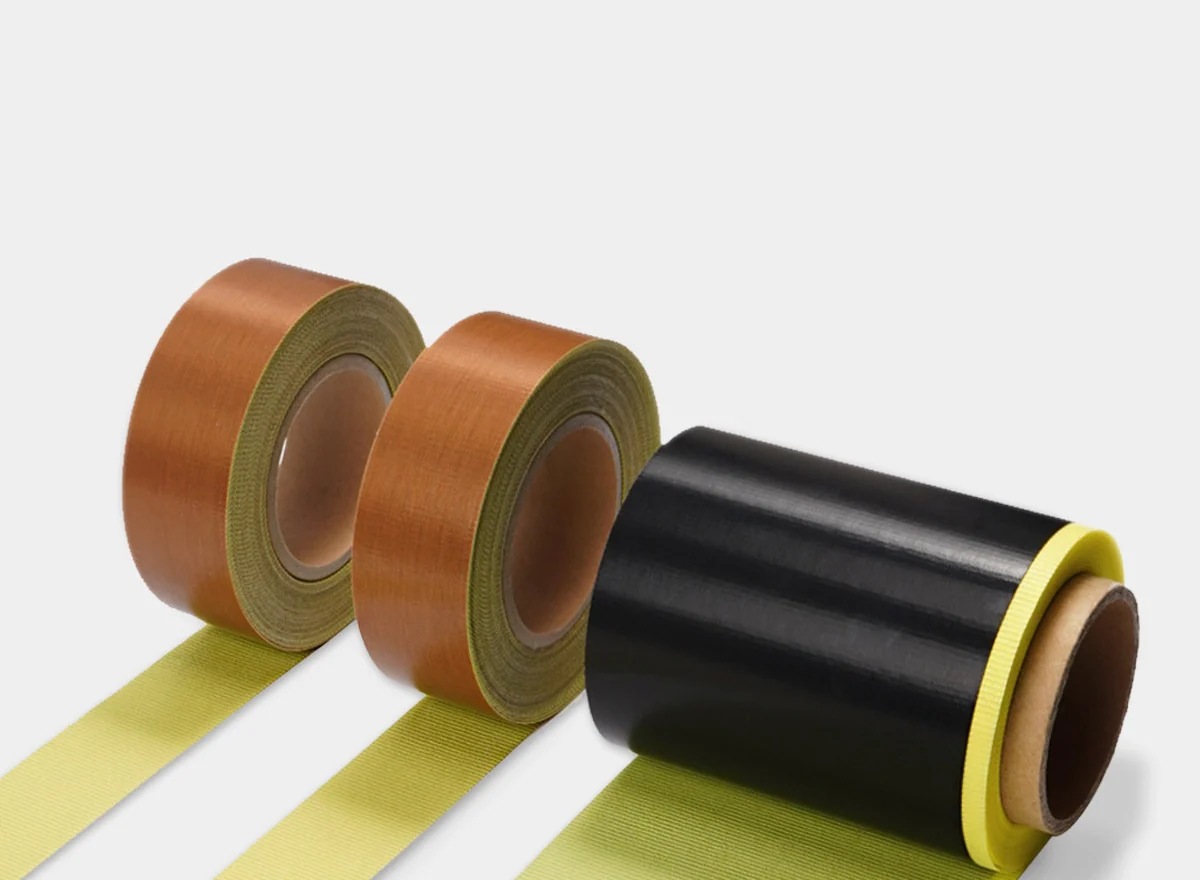

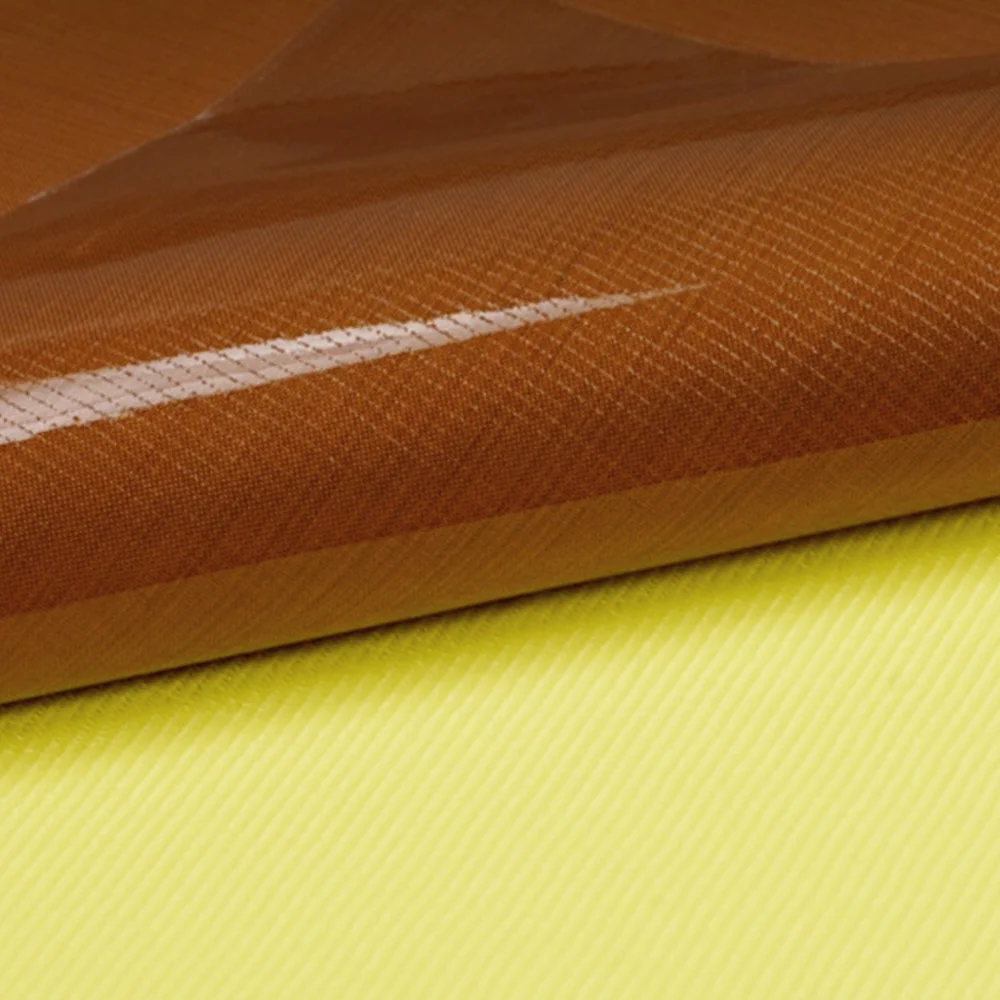

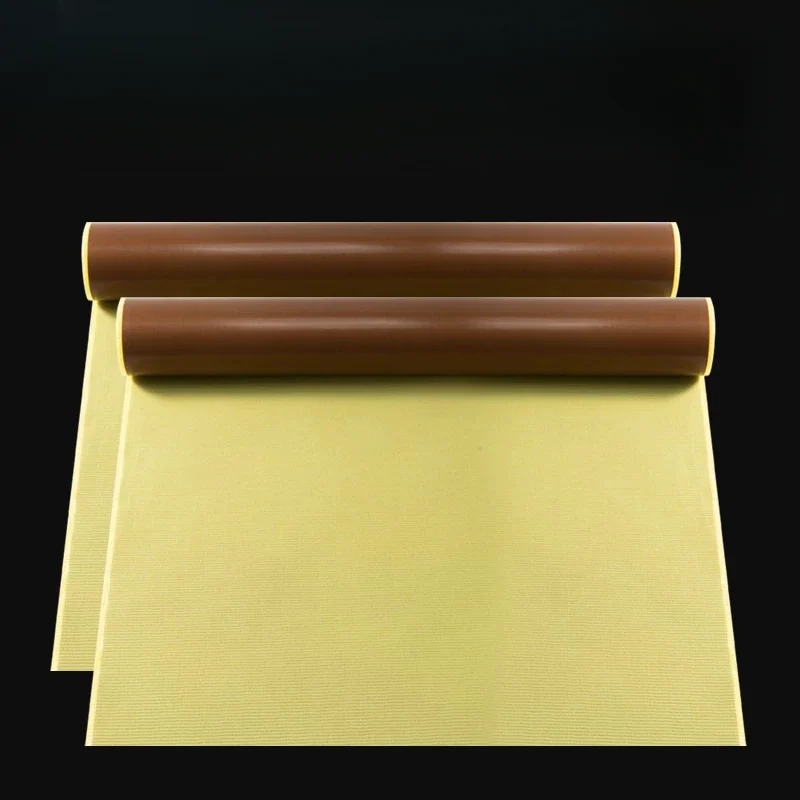

Wide PTFE Adhesive Cover Sheets

Wide PTFE adhesive cover sheets in multiple thicknesses for bonded heat press covers and equipment surface replacement.

  • Wide bonded cover formats
  • Several backing thicknesses
  • Brown, white and black options
Request a Quote -> Custom Size ->
Product Overview

Wide PTFE Adhesive Cover Sheets Supplier

A full-width cover reduces seams on a platen or equipment face. The selected adhesive bonds the textile-backed release layer to its support. Include overlap, fixing clearance and the edge layout when sizing the sheet; apply the cover without stretching so it remains flat across the working face.

Technical Specifications

Product Parameters

Material and construction Adhesive-backed PTFE-coated fiberglass fabric
Standard formats Adhesive-backed 0.13 mm thickness × 1 m width × 1 m length Brown; Adhesive-backed 0.13 mm thickness × 1.2 m width × 1 m length Brown; Adhesive-backed 0.18 mm thickness × 1 m width × 1 m length Brown; 20 listed formats
Ordering model HT-063
Price Request a Quote
Construction options Wide bonded cover formats; Several backing thicknesses; Brown, white and black options
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-063-P001 Adhesive-backed 0.13 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P002 Adhesive-backed 0.13 mm thickness × 1.2 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P003 Adhesive-backed 0.18 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P004 Adhesive-backed 0.18 mm thickness × 1.2 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P005 Adhesive-backed 0.25 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P006 Adhesive-backed 0.3 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P007 Adhesive-backed 0.13 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P008 Adhesive-backed 0.18 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P009 Adhesive-backed 0.25 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P010 Adhesive-backed 0.25 mm thickness × 1.22 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P011 Adhesive-backed 0.13 mm thickness × 1 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P012 Adhesive-backed, black variant; 0.13 mm thickness × 1 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P013 Adhesive-backed 0.18 mm thickness × 1 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P014 Adhesive-backed, black variant; 0.18 mm thickness × 1 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P015 Adhesive-backed 0.18 mm thickness × 1.2 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P016 Adhesive-backed, black variant; 0.18 mm thickness × 1.2 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P017 Adhesive-backed 0.18 mm thickness × 1 m width × 1 m length White Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P018 Adhesive-backed 0.13 mm thickness × 1 m width × 1 m length White Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P019 Adhesive-backed 0.35 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P020 Adhesive-backed 0.4 mm thickness × 1 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P021 Adhesive-backed 0.2 mm thickness × 1 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P022 Adhesive-backed 0.2 mm thickness × 1.2 m width × 1 m length Black Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote
HT-063-P023 Adhesive-backed 0.3 mm thickness × 1.2 m width × 1 m length Brown Adhesive-backed PTFE-coated fiberglass fabric Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Bonded platen covers
  • Equipment face refurbishment
  • Converted adhesive panels
Customization Options

Wide PTFE Adhesive Cover Sheets Ordering Options

Send Requirement ->

For Wide PTFE Adhesive Cover Sheets, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Adhesive-backed PTFE-coated fiberglass fabric
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which colors and widths are listed for wide PTFE adhesive cover sheets?

The table includes brown, black and white variants in selected gauges, with many 1 m-wide entries and some 1.2 m-wide entries. A brown 0.25 mm entry is 1.22 m wide. The full color, gauge and width combination identifies the format.

Are these cover sheets adhesive-backed or non-adhesive?

The entries and material description explicitly identify adhesive-backed PTFE-coated fiberglass. A non-adhesive version is not the construction named for these cover-sheet entries.

What material is used for Wide PTFE Adhesive Cover Sheets?

The specified material is adhesive-backed PTFE-coated fiberglass fabric.

What should I include in a quotation request?

For model HT-063, send the selected SKU and order quantity. Include cover color, thickness, width and required length. Pricing is by quotation for the selected specification and quantity.
