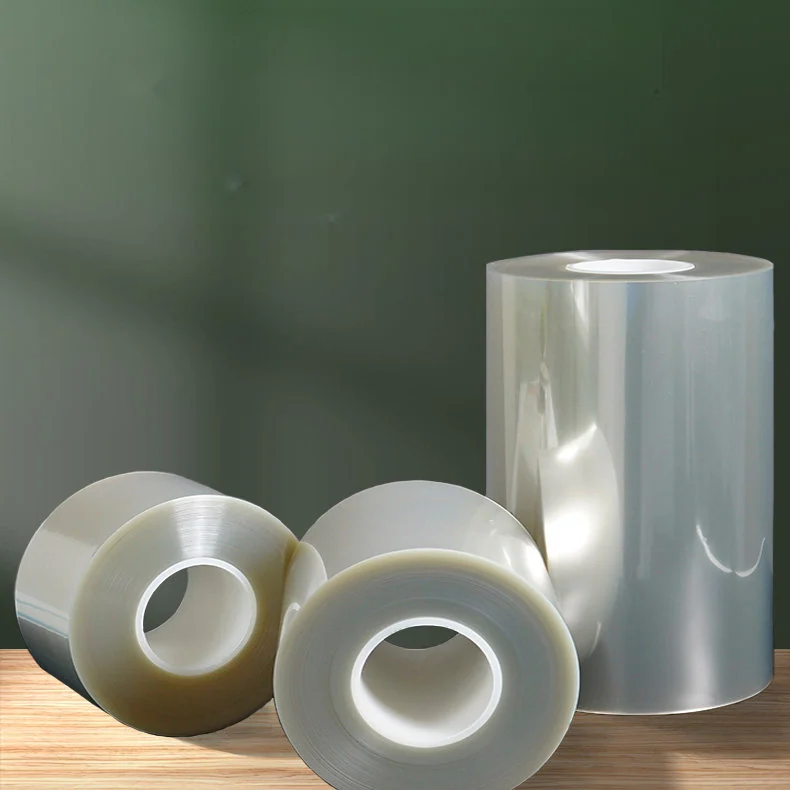

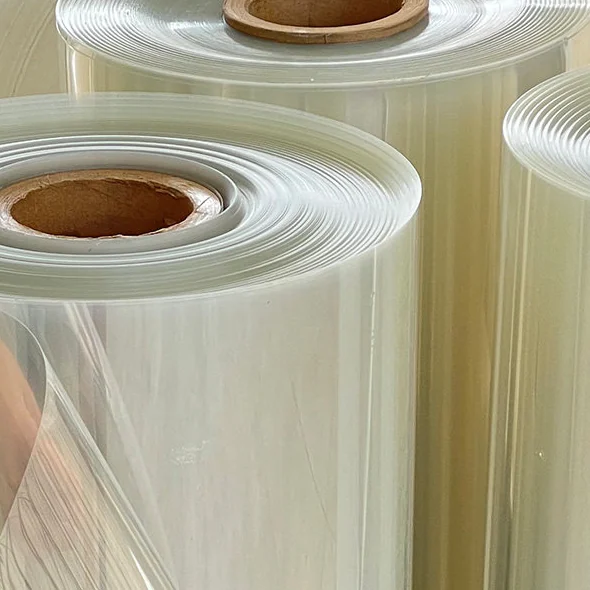

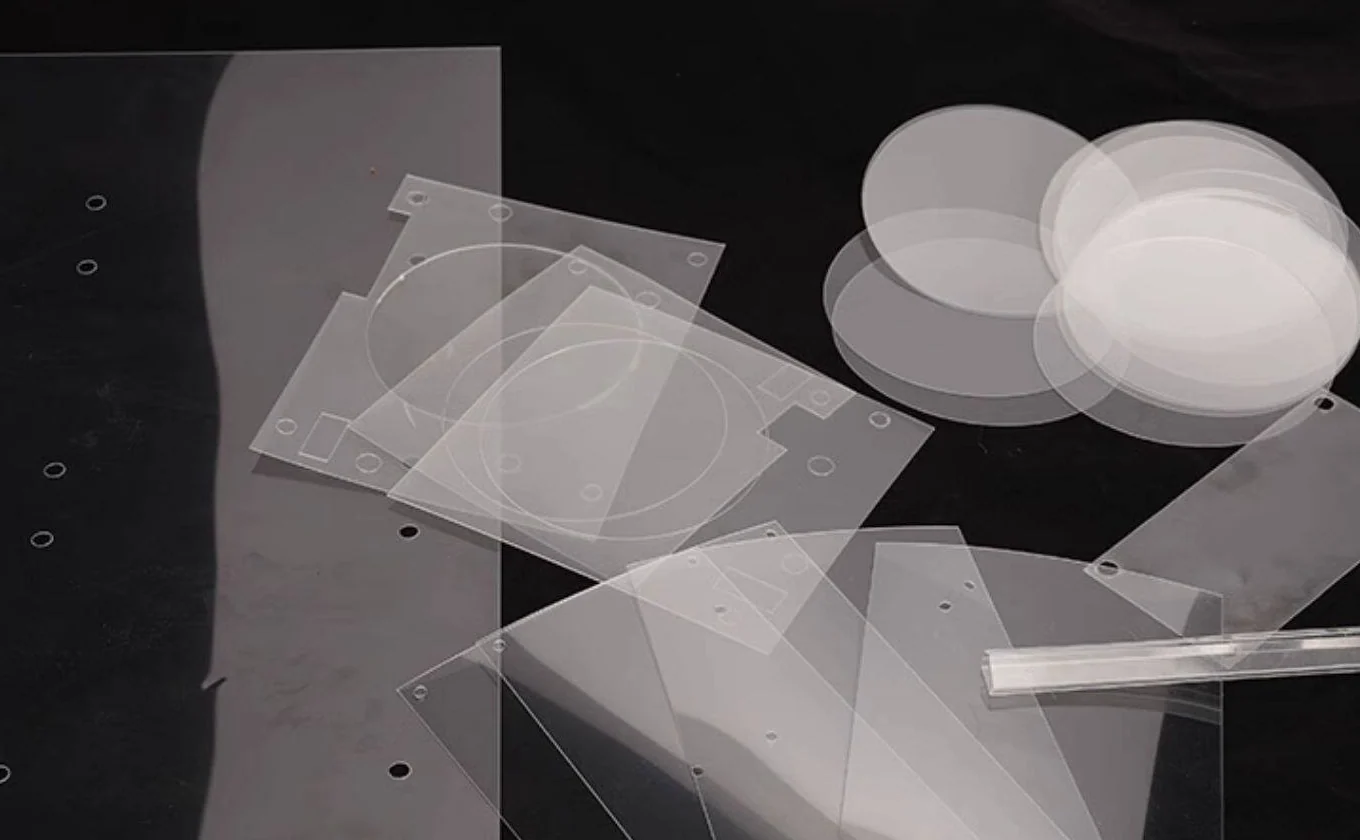

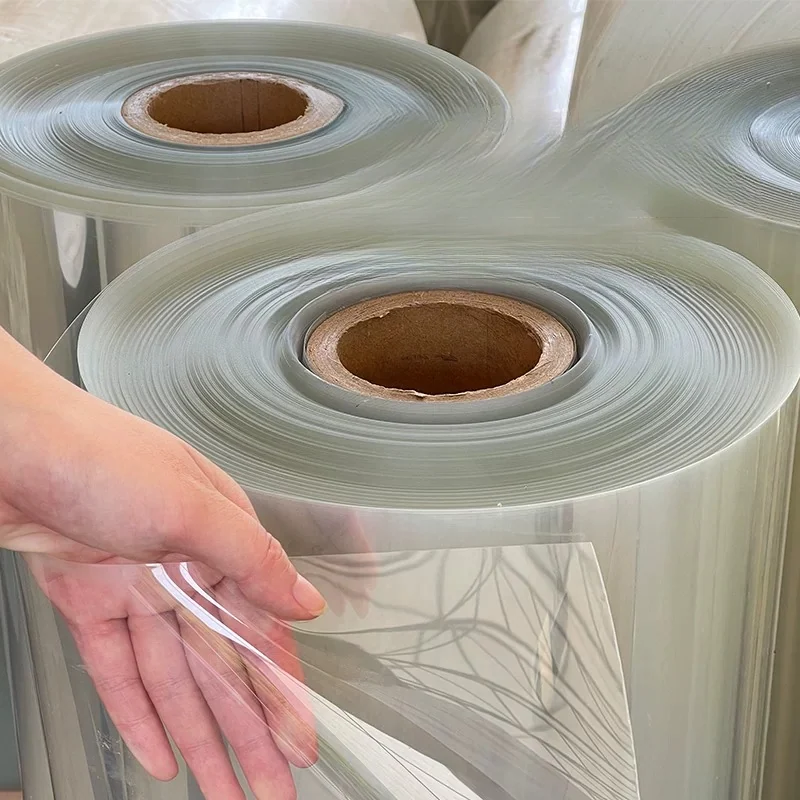

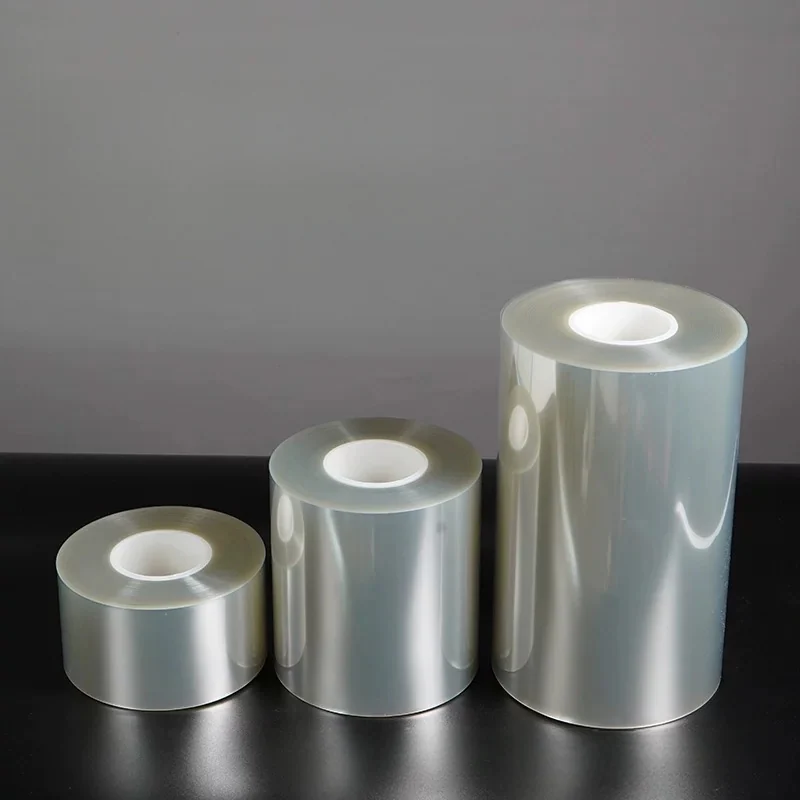

Silicone Release Coated PET Film

Single- and double-sided silicone release PET film for adhesive converting, protective liners and process separation.

  • Single or double release faces
  • 25–250 micrometer listed film
  • Sheet and long-roll formats
Request a Quote -> Custom Size ->
Product Overview

Silicone Release Coated PET Film Supplier

The coating allows an adhesive or processed layer to separate from its carrier. A double-sided format serves assemblies needing release on both faces; single-sided stock provides one working release face. Specify coating side and film thickness when replacing a liner in a converting operation.

Technical Specifications

Product Parameters

Material and construction PET film with silicone release coating
Standard formats 0.025 mm × 1 m width × 1 m length Release film; 0.05 mm × 1 m width × 1 m length Release film; 0.08 mm × 1 m width × 1 m length Release film; 24 listed formats
Ordering model HT-009
Price Request a Quote
Construction options Single or double release faces; 25–250 micrometer listed film; Sheet and long-roll formats
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-009-P002 0.025 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P003 0.05 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P004 0.08 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P005 0.1 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P006 0.188 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P007 0.25 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P008 0.038 mm × 1 m width × 1 m length Release film PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P009 0.125 mm thickness × 1 m width / per meter; single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P010 0.025 mm thickness × 10 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P011 0.025 mm thickness × 20 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P012 0.025 mm thickness × 30 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P013 0.038 mm thickness × 20 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P014 0.038 mm thickness × 30 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P015 0.05 mm thickness × 20 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P016 0.05 mm thickness × 30 cm width × 200 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P017 0.1 mm thickness × 20 cm width × 100 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P018 0.1 mm thickness × 30 cm width × 100 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P019 0.025 mm thickness × 25 cm width × 50 m Single-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P020 0.038 mm thickness × 20 cm width × 200 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P021 0.038 mm thickness × 30 cm width × 200 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P022 0.05 mm thickness × 20 cm width × 200 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P023 0.05 mm thickness × 30 cm width × 200 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P024 0.1 mm thickness × 20 cm width × 100 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote
HT-009-P025 0.1 mm thickness × 30 cm width × 100 m Double-sided release PET film with silicone release coating Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Adhesive converting
  • Transfer carriers
  • Composite separation liners
Customization Options

Silicone Release Coated PET Film Ordering Options

Send Requirement ->

For Silicone Release Coated PET Film, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material PET film with silicone release coating
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which sheet and roll formats are listed for silicone-release PET film?

Entries include 1 m-wide × 1 m-long film in several gauges, as well as narrower long rolls. Examples are single-sided 0.025 mm × 10 cm × 200 m film and double-sided 0.1 mm × 30 cm × 100 m film. Thickness, width, length and release-side description must be selected together.

Are single-sided and double-sided release films both listed?

Yes. The table explicitly labels single-sided and double-sided release options. Some sheet entries are described only as release film; if the number of coated faces matters, request an explicitly labelled construction or ask for it to be confirmed.

What material is used for Silicone Release Coated PET Film?

The specified material is PET film with silicone release coating.

What should I include in a quotation request?

For model HT-009, send the selected SKU and order quantity. Include thickness, width, length and single-sided or double-sided release construction. Pricing is by quotation for the selected specification and quantity.
