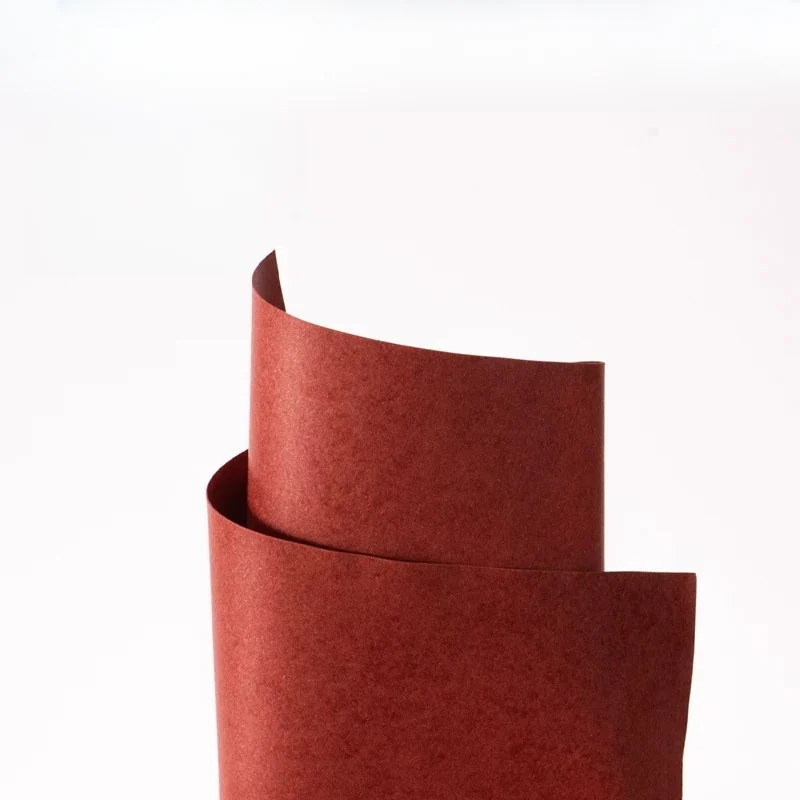

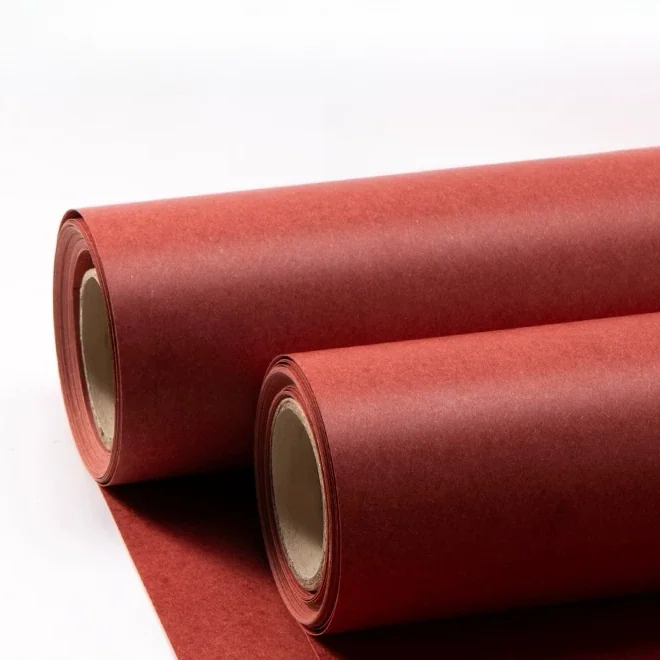

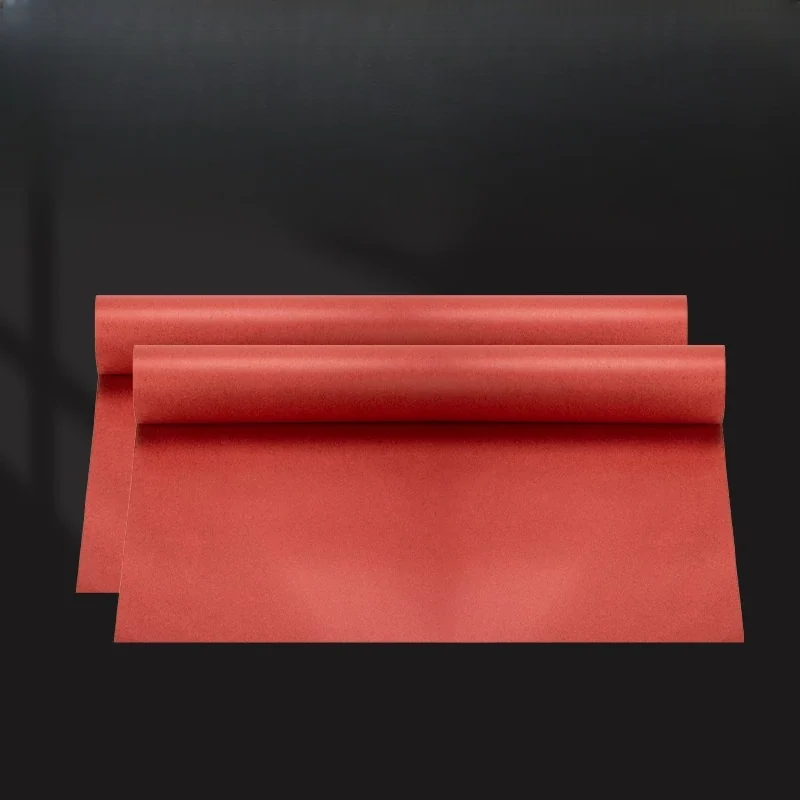

Red Unlaminated Electrical Insulation Paper

Red unlaminated electrical paper in 0.2 and 0.5 mm sheet formats for cut barriers, separators and insulating liners.

  • Unlaminated red paper
  • 1 m × 1 m listed formats
  • Two standard gauges
Request a Quote -> Custom Size ->
Product Overview

Red Unlaminated Electrical Insulation Paper Supplier

The red face makes this material easy to identify during assembly. The unlaminated construction differs from film-faced stock and remains a paper-based barrier. Specify the cut outline, thickness and edge coverage so the part separates conductors from adjacent metal without crowding the assembly.

Technical Specifications

Product Parameters

Material and construction Red cellulose electrical insulation paper
Standard formats 0.2 mm thickness × 1 m width × 1 m length; 0.5 mm thickness × 1 m width × 1 m length
Ordering model HT-049
Price Request a Quote
Construction options Unlaminated red paper; 1 m × 1 m listed formats; Two standard gauges
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-049-P001 0.2 mm thickness × 1 m width × 1 m length Red cellulose electrical insulation paper Roll / cut length Request a Quote
HT-049-P002 0.5 mm thickness × 1 m width × 1 m length Red cellulose electrical insulation paper Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Electrical barrier inserts
  • Cut insulating separators
  • Equipment lining parts
Customization Options

Red Unlaminated Electrical Insulation Paper Ordering Options

Send Requirement ->

For Red Unlaminated Electrical Insulation Paper, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Red cellulose electrical insulation paper
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

What are the two listed red insulation-paper formats?

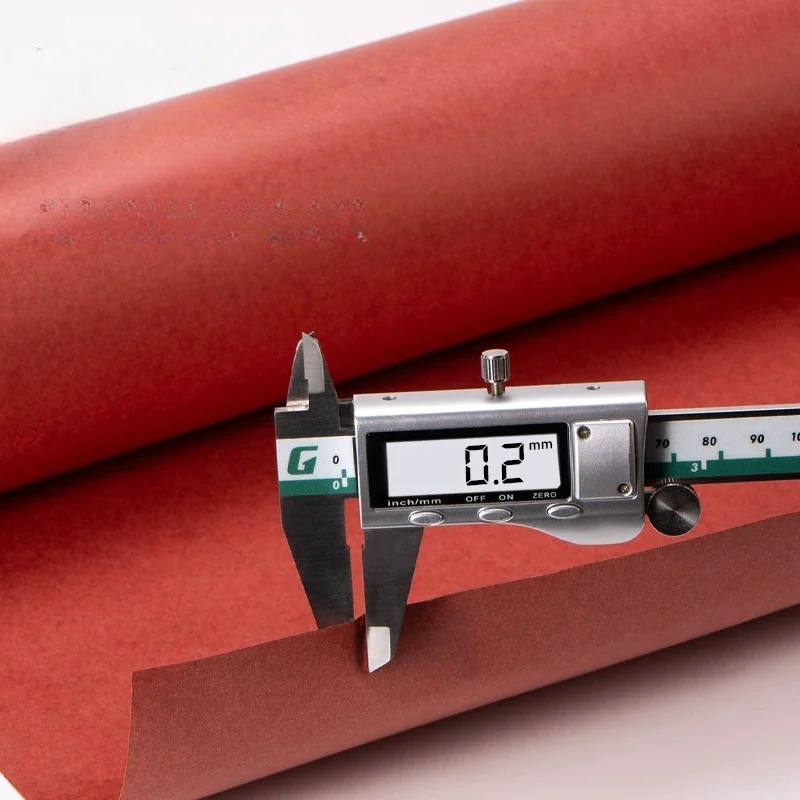

The two entries are 0.2 mm and 0.5 mm thickness, each at 1 m width × 1 m length. Select the corresponding SKU for the required gauge.

Is this red insulation paper film-laminated?

The construction is specifically described as unlaminated red cellulose electrical insulation paper. A film-laminated or adhesive-backed version is not identified in these two entries.

What material is used for Red Unlaminated Electrical Insulation Paper?

The specified material is red cellulose electrical insulation paper.

What should I include in a quotation request?

For model HT-049, send the selected SKU and order quantity. Include 0.2 or 0.5 mm thickness, 1 m × 1 m reference format and quantity. Pricing is by quotation for the selected specification and quantity.
