Polyimide Circuit Masking Tape

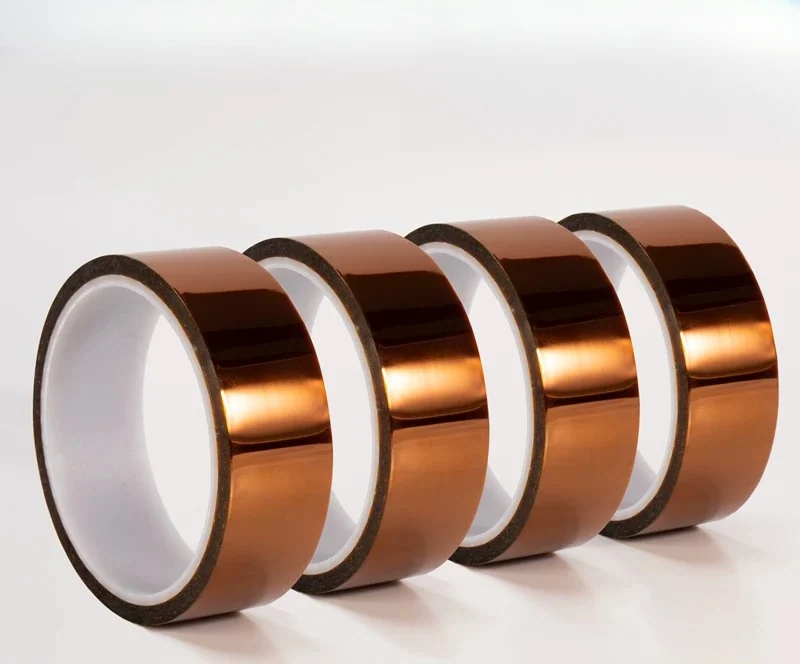

Amber polyimide tape in 3–100 mm widths and 33 m rolls for circuit masking and compact insulating wraps.

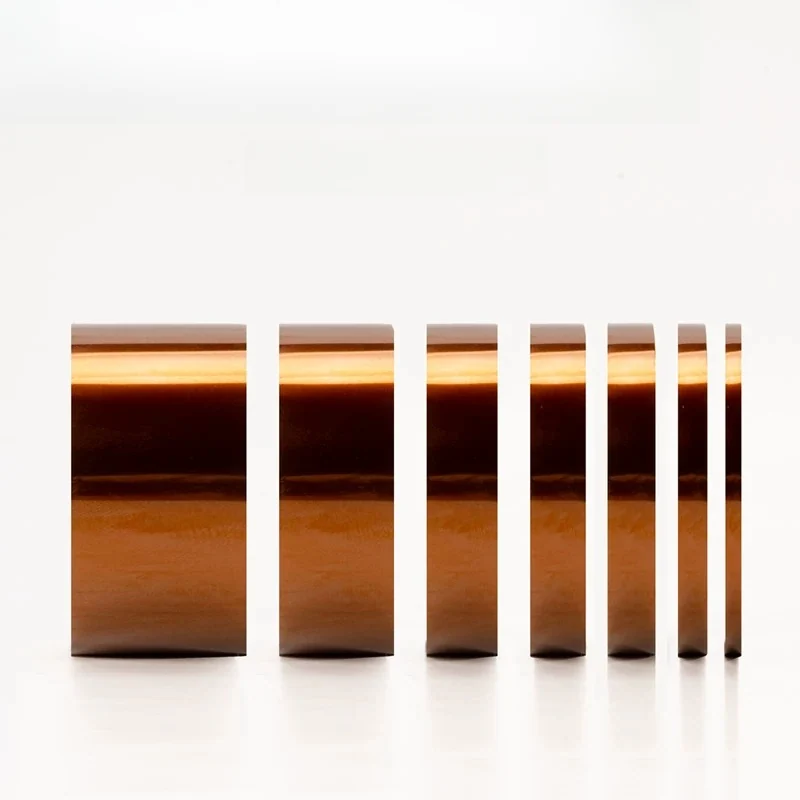

  • 3–100 mm listed widths
  • 33 m rolls
  • Narrow and wide circuit masking formats
Request a Quote -> Custom Size ->
Product Overview

Polyimide Circuit Masking Tape Supplier

The film masks selected circuit areas or forms a positioned insulating strip. Narrow widths follow traces and small terminals; wider rolls cover larger areas. Select the adhesive system for the process and removal method, and keep masking edges firmly seated where the masked boundary is important.

Technical Specifications

Product Parameters

Material and construction PI film with heat-resistant adhesive
Standard formats 3 mm × 33 m × 3 roll; 4 mm × 33 m × 3 roll; 5 mm × 33 m × 3 roll; 20 listed formats
Ordering model HT-062
Price Request a Quote
Construction options 3–100 mm listed widths; 33 m rolls; Narrow and wide circuit masking formats
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-062-P001 3 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P002 4 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P003 5 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P004 6 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P005 7 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P006 10 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P007 12 mm × 33 m × 3 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P008 14 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P009 15 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P010 18 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P011 20 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P012 24 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P013 25 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P014 30 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P015 35 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P016 40 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P017 50 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P018 60 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P019 80 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote
HT-062-P020 100 mm × 33 m × 1 roll PI film with heat-resistant adhesive Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Circuit process masking
  • Terminal insulation wraps
  • Electrical assembly positioning
Customization Options

Polyimide Circuit Masking Tape Ordering Options

Send Requirement ->

For Polyimide Circuit Masking Tape, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material PI film with heat-resistant adhesive
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which widths and roll lengths are listed for polyimide masking tape?

The listed widths range from 3 to 100 mm as discrete entries. Every entry states 33 m roll length. Use the table to select the exact width and pack quantity.

Do all polyimide masking-tape entries contain one roll?

No. The listed 3, 4, 5, 6, 7, 10 and 12 mm widths use three-roll packs. The listed widths from 14 mm onward use one-roll entries. Pack quantity is part of the selected specification.

What material is used for Polyimide Circuit Masking Tape?

The specified material is PI film with heat-resistant adhesive.

What should I include in a quotation request?

For model HT-062, send the selected SKU and order quantity. Include masking-tape width, 33 m roll length and selected one-roll or three-roll pack. Pricing is by quotation for the selected specification and quantity.
