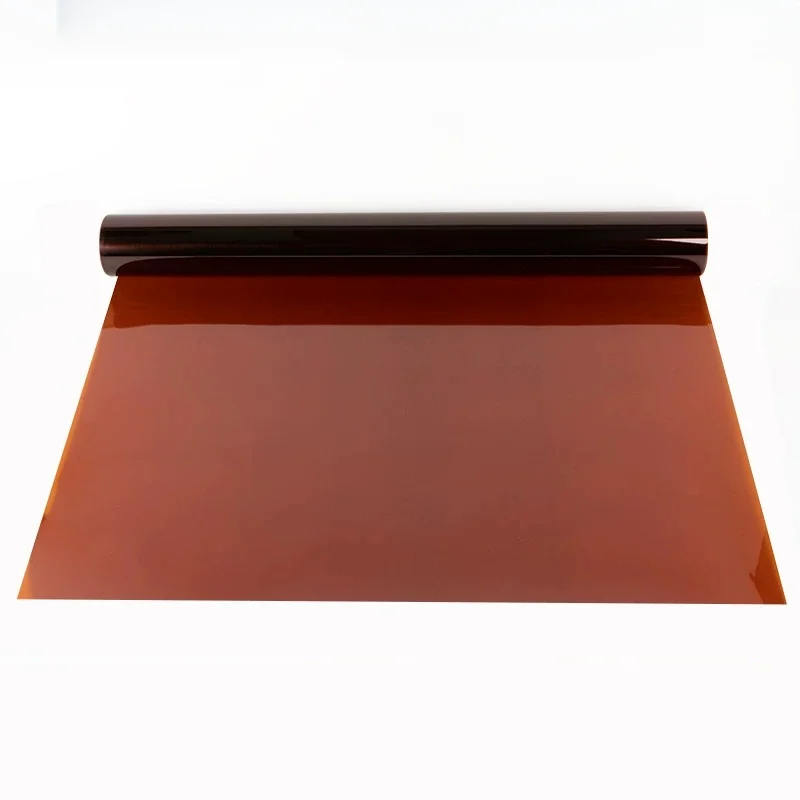

Non Adhesive Polyimide Insulation Film

Amber non-adhesive polyimide film in 25–250 micrometer listed formats for electrical barriers and heat-facing insulating parts.

  • Bare non-adhesive PI film

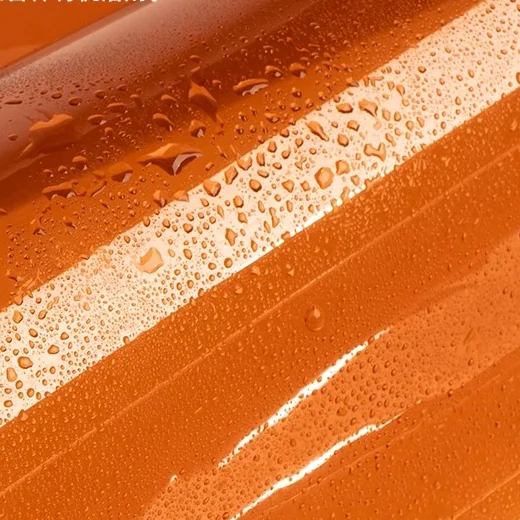

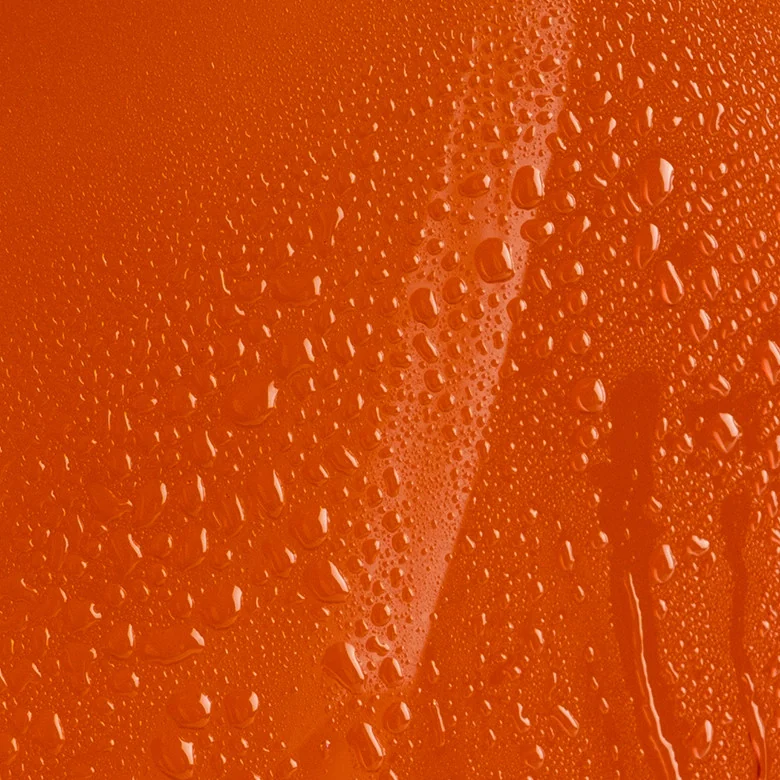

  • Amber translucent surface
  • 500 and 930 mm width options
Request a Quote -> Custom Size ->
Product Overview

Non Adhesive Polyimide Insulation Film Supplier

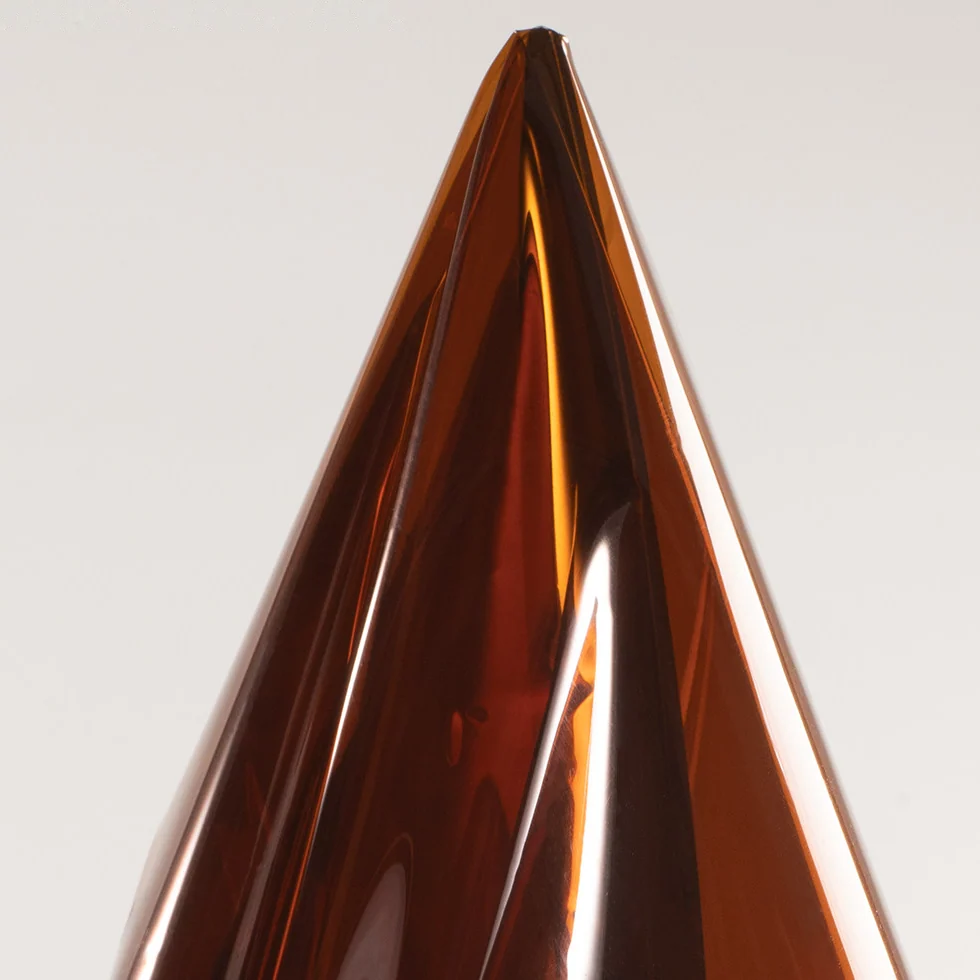

This is bare film rather than polyimide tape. It supplies an insulating layer without a pressure-sensitive adhesive and can be cut, folded or held by the assembly. Choose thickness for bend geometry and clearance, and specify a separate fixing method where the film cannot be captured mechanically.

Technical Specifications

Product Parameters

Material and construction PI polyimide film
Standard formats thickness 0.025 mm × width 500 mm/ per meter; thickness 0.05 mm × width 500 mm/ per meter; thickness 0.075 mm × width 500 mm/ per meter; 12 listed formats
Ordering model HT-054
Price Request a Quote
Construction options Bare non-adhesive PI film; Amber translucent surface; 500 and 930 mm width options
MOQ Quoted by the selected supply unit and quantity

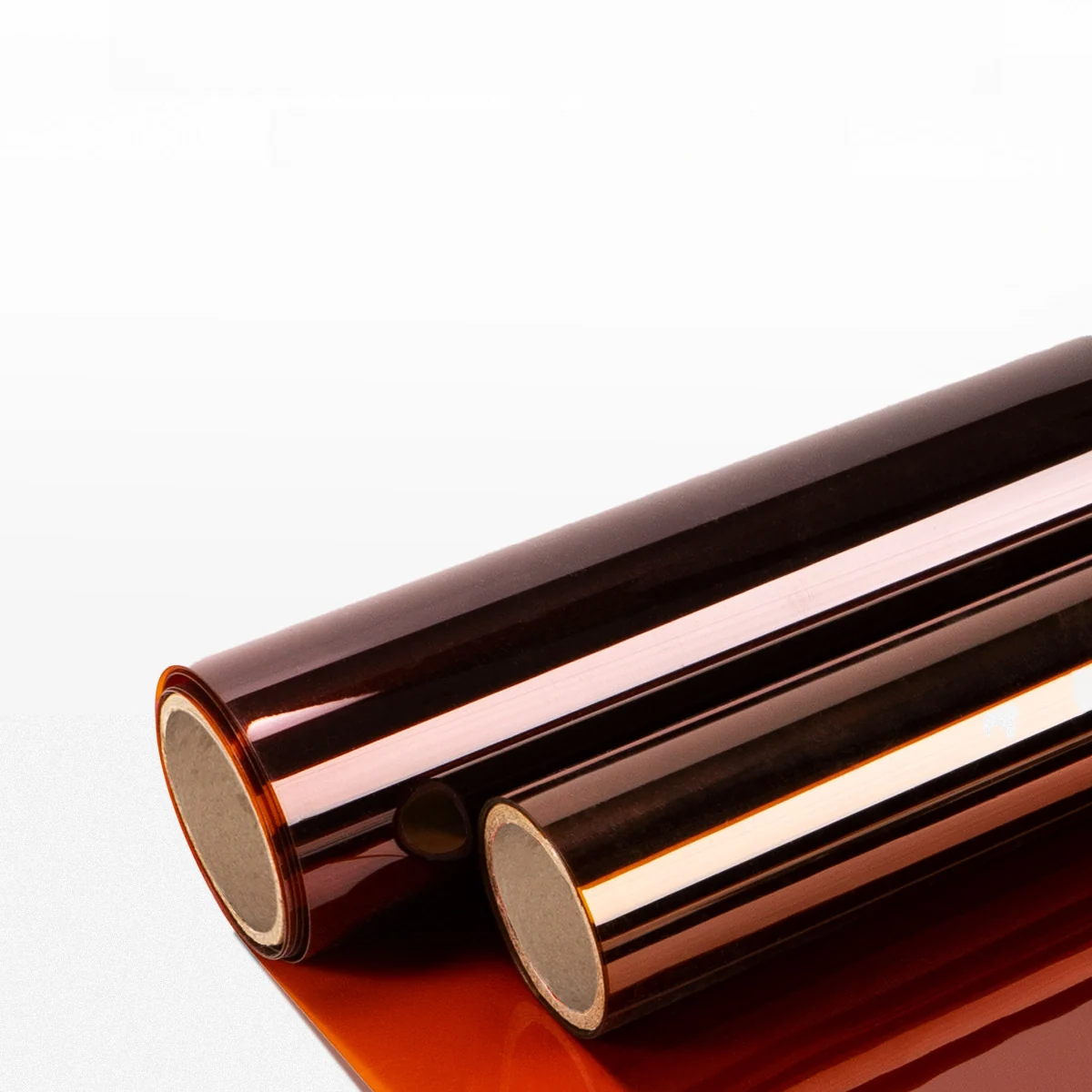

Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-054-P001 thickness 0.025 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P002 thickness 0.05 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P003 thickness 0.075 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P004 thickness 0.1 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P005 thickness 0.125 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P006 thickness 0.15 mm × width 435 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P007 thickness 0.18 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P008 thickness 0.25 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P009 thickness 0.05 mm × width 910 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P010 thickness 0.05 mm × width 1.05 m/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P011 thickness 0.2 mm × width 500 mm/ per meter PI polyimide film Roll / cut length Request a Quote
HT-054-P012 thickness 0.25 mm × width 930 mm/ per meter PI polyimide film Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Electrical barrier films
  • Heater insulation layers
  • Die-cut circuit separators
Customization Options

Non Adhesive Polyimide Insulation Film Ordering Options

Send Requirement ->

For Non Adhesive Polyimide Insulation Film, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material PI polyimide film
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which polyimide film widths are listed?

Several entries use 500 mm width, with additional widths including 435 mm at 0.15 mm thickness, 910 mm and 1.05 m at 0.05 mm, and 930 mm at 0.25 mm. Select a listed thickness-and-width pair.

Does this polyimide film include an adhesive layer?

No. The parameters explicitly describe bare non-adhesive PI film with an amber translucent surface. An adhesive-backed masking-tape construction is not listed for this product.

What material is used for Non Adhesive Polyimide Insulation Film?

The specified material is PI polyimide film.

What should I include in a quotation request?

For model HT-054, send the selected SKU and order quantity. Include bare PI film thickness, width and required length. Pricing is by quotation for the selected specification and quantity.
