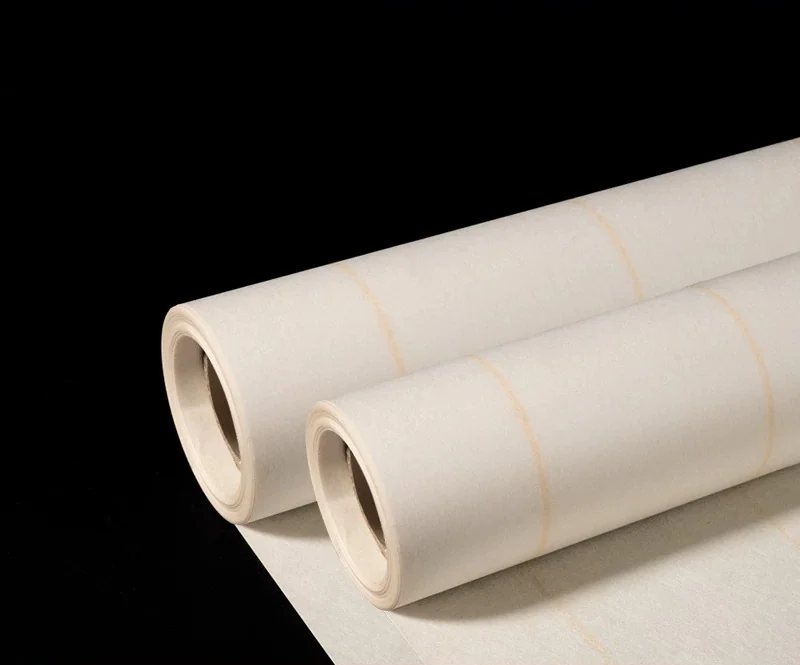

NMN Composite Motor Slot Insulation

NMN composite insulation for motor slot liners, phase barriers and formed electrical insulating pieces.

  • Three-layer NMN construction

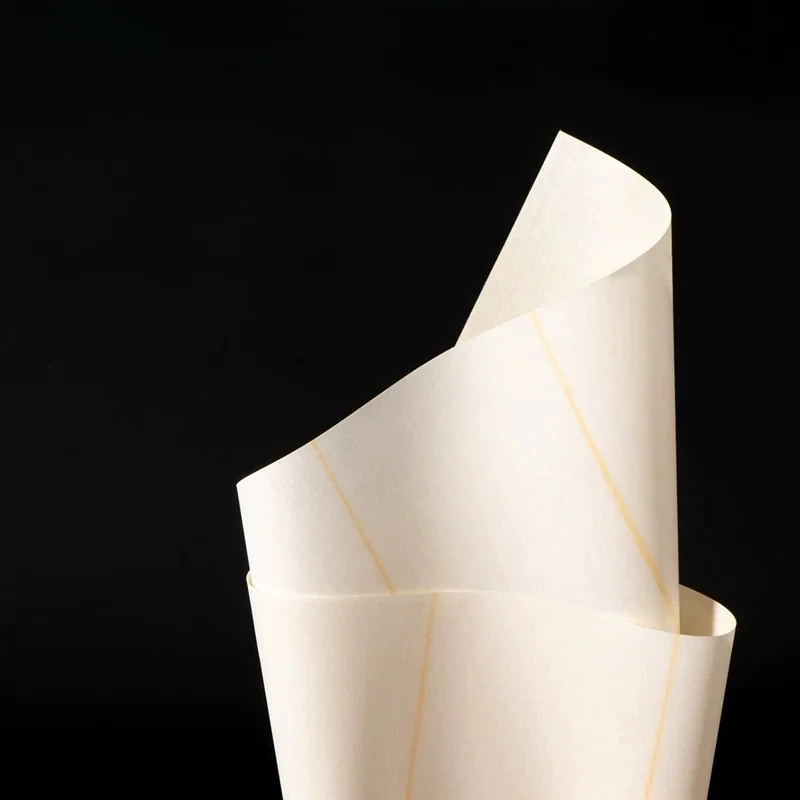

  • Foldable insulating laminate
  • Slit and shaped liner formats
Request a Quote -> Custom Size ->
Product Overview

NMN Composite Motor Slot Insulation Supplier

NMN places aramid-paper faces around a polyester-film core. The faces support handling and folding while the film provides a continuous insulating layer. Select finished thickness for the slot geometry and keep cut edges clear of burrs on the metal core during installation.

Technical Specifications

Product Parameters

Material and construction Aramid paper and polyester film laminate
Standard formats 0.30 mm × 600 mm width
Ordering model HT-008
Price Request a Quote
Construction options Three-layer NMN construction; Foldable insulating laminate; Slit and shaped liner formats
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

The following reference formats and drawing-based configurations are available for quotation. Specify the finished dimensions and quantity in your inquiry.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-008-REF01 0.30 mm × 600 mm width Aramid paper and polyester film laminate Pack / cut part Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Motor rewinding
  • Generator slot insulation
  • Electrical phase barriers
Customization Options

NMN Composite Motor Slot Insulation Ordering Options

Send Requirement ->

For NMN Composite Motor Slot Insulation, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Aramid paper and polyester film laminate
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

What size is listed for NMN motor-slot insulation?

The listed reference format is 0.30 mm thickness × 600 mm width, under SKU HT-008-REF01. It is the only entry in this parameter file; slit dimensions or shaped liner details need to be included in the quotation request.

What construction and converted formats are described for NMN?

The parameters identify a three-layer aramid paper and polyester film laminate. Slit and shaped liner formats are described as options; provide the liner dimensions or drawing for the requested format.

What material is used for NMN Composite Motor Slot Insulation?

The specified material is aramid paper and polyester film laminate.

What should I include in a quotation request?

For model HT-008, send the selected SKU and order quantity. Include 0.30 mm reference thickness, required slit width or liner outline and drawing details. Pricing is by quotation for the selected specification and quantity.
