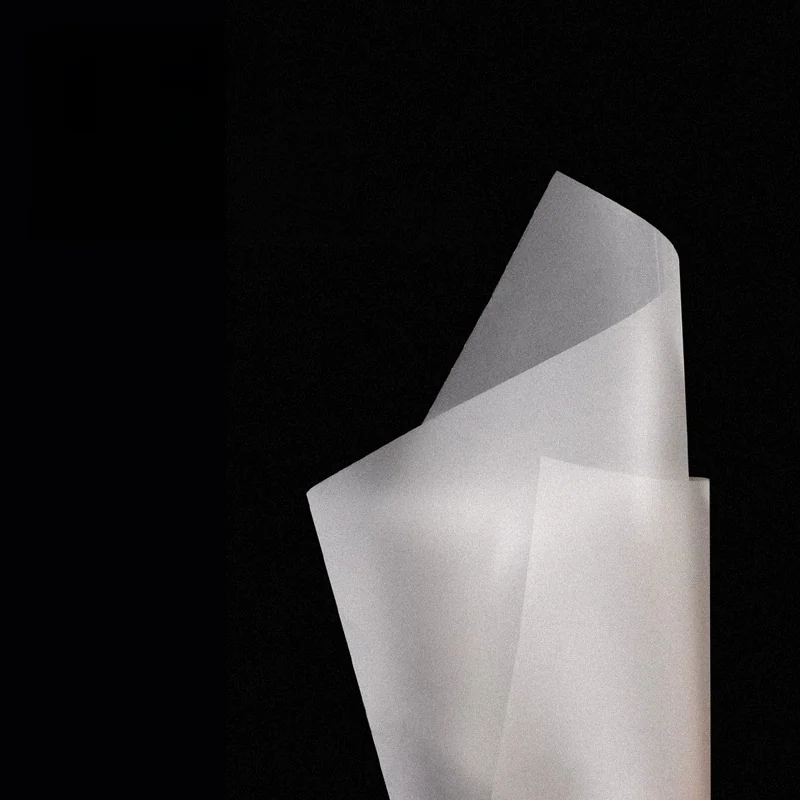

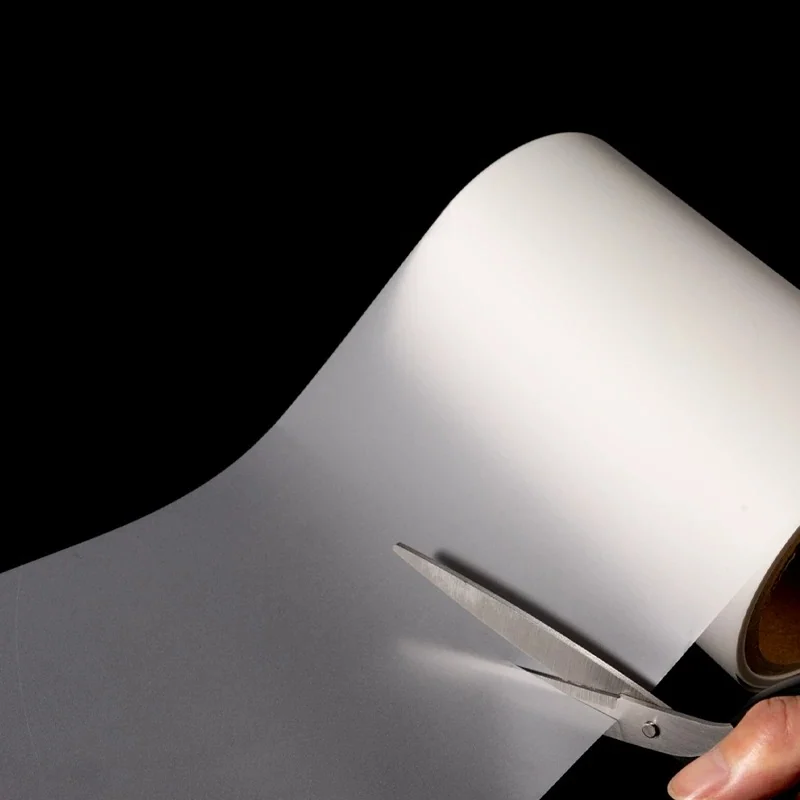

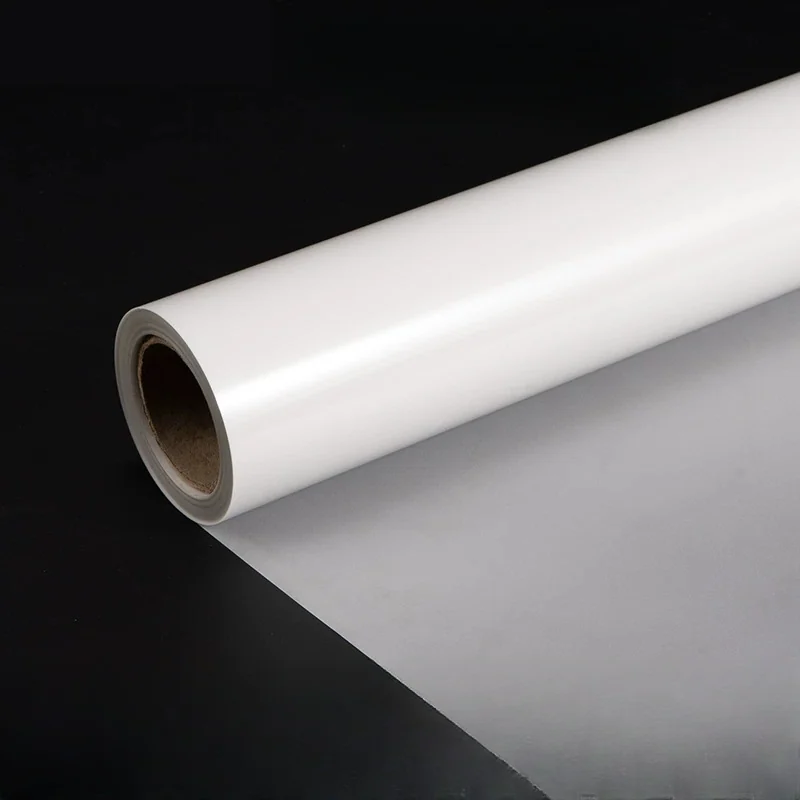

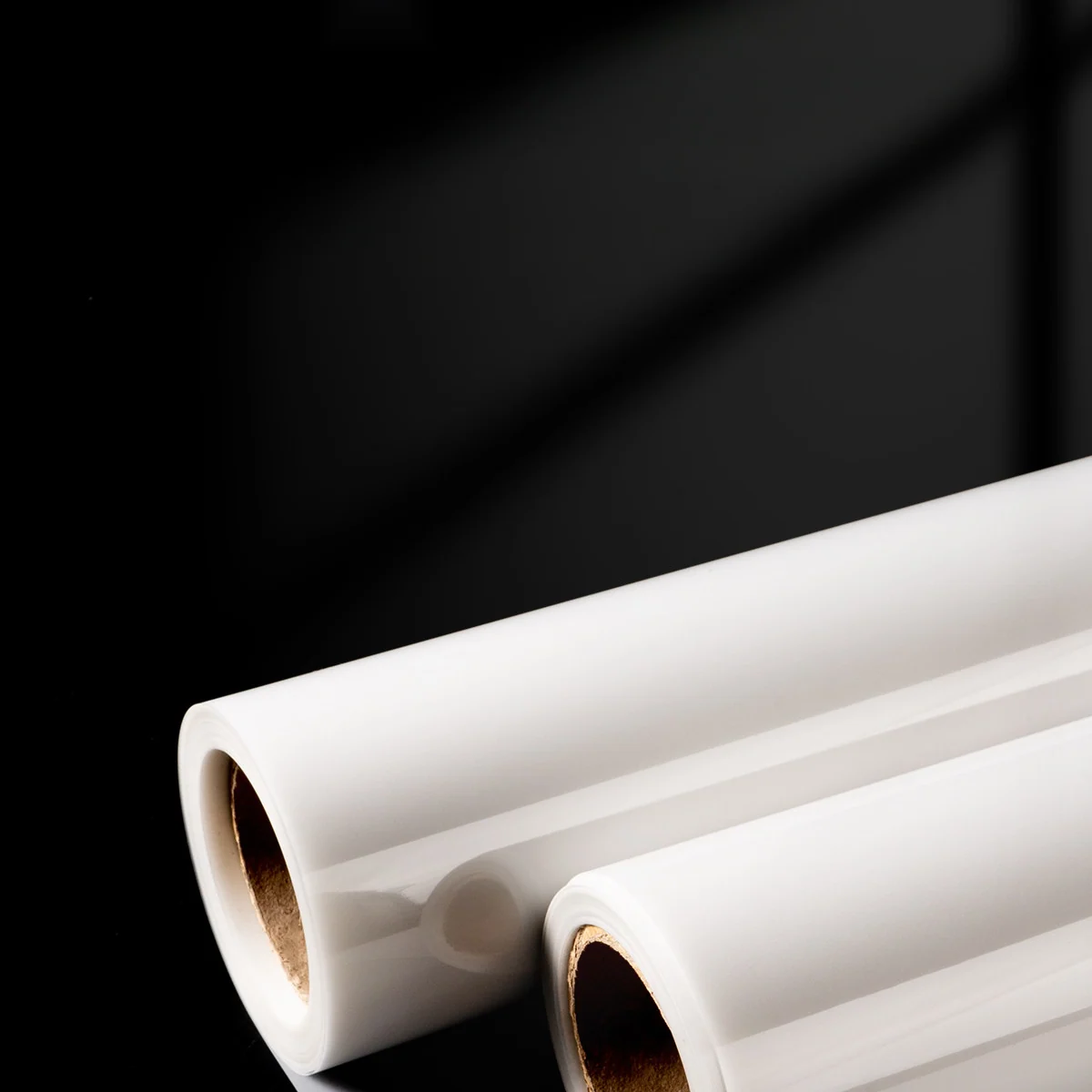

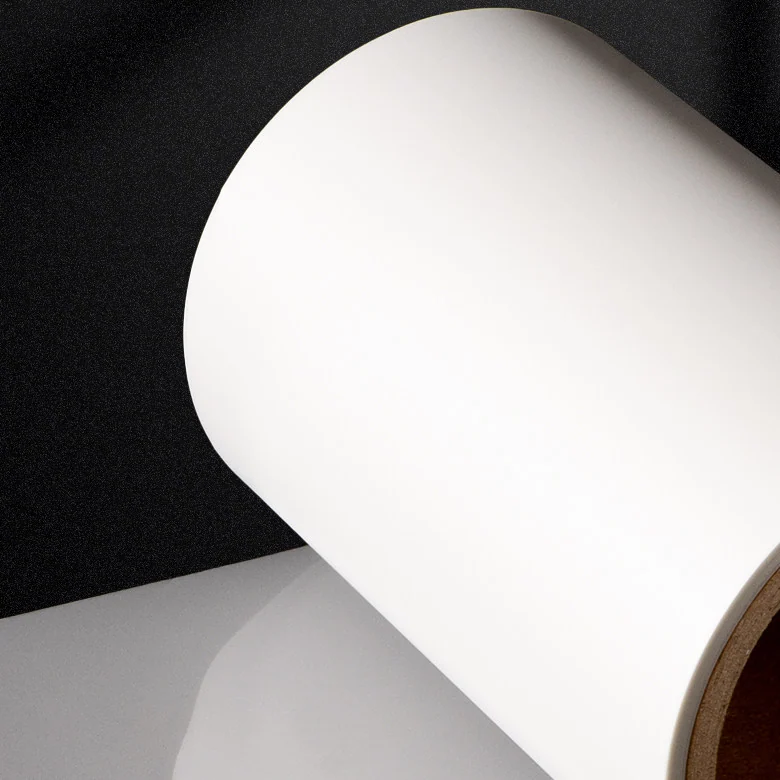

Matte PET Drafting and Insulation Film

Matte PET film in 0.05–0.188 mm options for drafting overlays, diffusing liners and cut electrical insulation.

  • Matte contact surface
  • 600 and 1200 mm-wide formats
  • Meter and weight-based supply options
Request a Quote -> Custom Size ->
Product Overview

Matte PET Drafting and Insulation Film Supplier

The matte surface changes reflection and handling compared with clear glossy PET. Wider formats suit continuous cutting; the narrow 95 mm format suits strips and small parts. Keep the specified face orientation consistent when a drawing overlay or optical assembly depends on the surface finish.

Technical Specifications

Product Parameters

Material and construction Matte-finished PET polyester film
Standard formats 0.05 mm × 60 cm/ per meter; 0.18 mm × 60 cm/ per meter; 0.1 mm × 1.2 m × 1 m length; 22 listed formats
Ordering model HT-011
Price Request a Quote
Construction options Matte contact surface; 600 and 1200 mm-wide formats; Meter and weight-based supply options
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-011-P001 0.05 mm × 60 cm/ per meter Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P002 0.18 mm × 60 cm/ per meter Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P003 0.1 mm × 1.2 m × 1 m length Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P004 0.1 mm × 60 cm × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P005 0.1 mm × 60 cm × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P006 0.18 mm × 60 cm × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P007 0.05 mm × 15 cm/ per meter Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P008 0.08 mm × 1.2 m × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P009 0.08 mm × 60 cm × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P010 0.1 mm × 1.2 m × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P011 0.1 mm × 1.2 m × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P012 0.18 mm × 1.2 m × 1 m length Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P013 0.05 mm × 1.2 m × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P014 0.05 mm × 60 cm × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P015 0.12 mm × 1.2 m × 1 m Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P016 0.12 mm × 60 cm × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P017 0.12 mm × 60 cm × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P018 0.05 mm × 1.2 m × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P019 0.18 mm × 1.2 m × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P020 0.12 mm × 1.2 m × 5 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P021 0.05 mm × 60 cm × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote
HT-011-P022 0.125 mm × 95 mm width × 1 kg Matte-finished PET polyester film Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Drafting overlays
  • Glare-reducing inserts
  • Die-cut electrical liners
Customization Options

Matte PET Drafting and Insulation Film Ordering Options

Send Requirement ->

For Matte PET Drafting and Insulation Film, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Matte-finished PET polyester film
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which widths are listed for matte PET film?

Listed widths include 60 cm and 1.2 m in several thicknesses, plus a 0.05 mm × 15 cm per-meter entry and a 0.125 mm × 95 mm × 1 kg entry. The available thickness and supply basis depend on the chosen width and SKU.

Is matte PET film quoted by length or by weight?

Both formats appear in the table. Some entries specify a per-meter or 1 m length basis; others specify 1 kg or 5 kg. State the selected entry and whether your requested quantity is in meters or kilograms.

What material is used for Matte PET Drafting and Insulation Film?

The specified material is matte-finished PET polyester film.

What should I include in a quotation request?

For model HT-011, send the selected SKU and order quantity. Include matte film thickness, width and the selected meter or kilogram supply basis. Pricing is by quotation for the selected specification and quantity.
