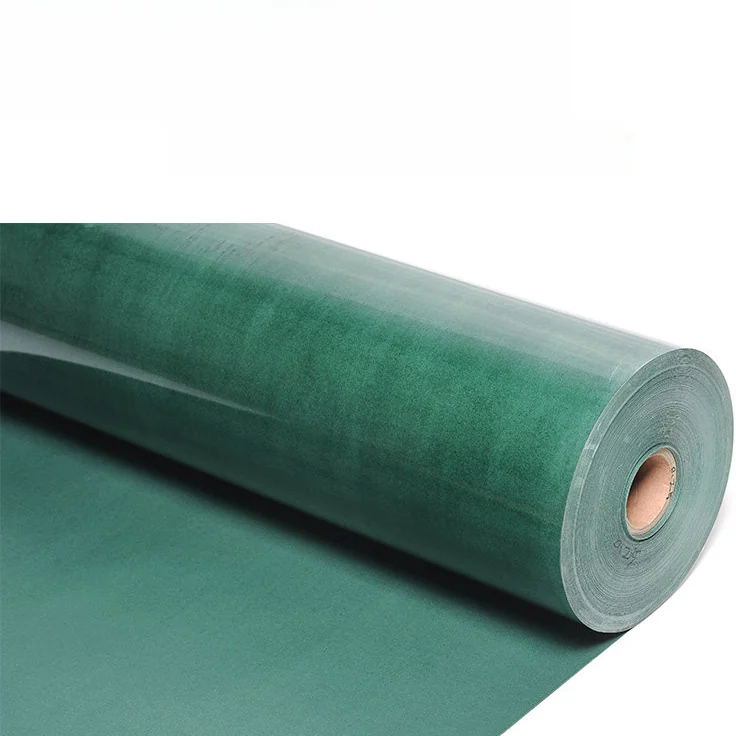

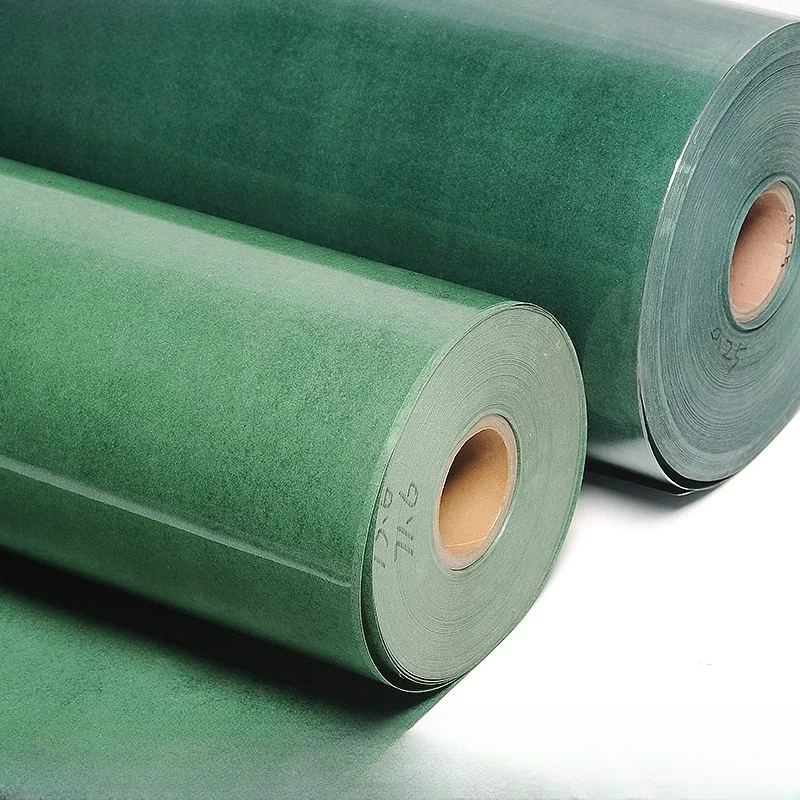

Laminated Green Electrical Fish Paper

Green electrical fish paper in laminated and unlaminated formats for battery barriers, converted pads and insulation liners.

  • Film-laminated green paper options
  • Separate unlaminated variants

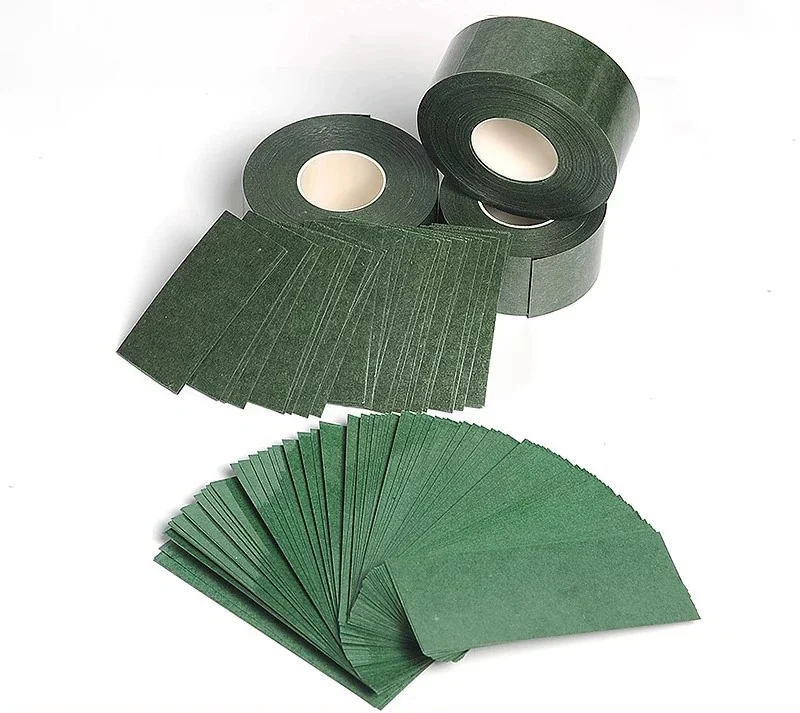

  • Sheet and converted part supply
Request a Quote -> Custom Size ->
Product Overview

Laminated Green Electrical Fish Paper Supplier

The film-faced construction changes the contact surface compared with plain paper. This range also includes clearly separated unlaminated options. Keep construction and thickness together in the order, and specify the outline and overlap around cell cans or metal edges when sourcing cut insulating pieces.

Technical Specifications

Product Parameters

Material and construction Cellulose fish paper with film-laminated options
Standard formats Film-laminated; 0.15 mm thickness × 1 m width × 1 m length; Film-laminated; 0.2 mm thickness × 1 m width × 1 m length; Film-laminated; 0.25 mm thickness × 1 m width × 1 m length; 20 listed formats
Ordering model HT-073
Price Request a Quote
Construction options Film-laminated green paper options; Separate unlaminated variants; Sheet and converted part supply
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-073-P001 Film-laminated; 0.15 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P002 Film-laminated; 0.2 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P003 Film-laminated; 0.25 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P004 Film-laminated; 0.3 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P005 Film-laminated; 0.4 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P006 Film-laminated; 0.5 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P007 Laminated, adhesive-backed; 0.15 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P008 Laminated, adhesive-backed; 0.2 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P009 Laminated, adhesive-backed; 0.3 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P010 Laminated, adhesive-backed; 0.4 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P011 Laminated, adhesive-backed; 0.5 mm thickness × 1 m width × 1 m length Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P012 Unlaminated, heavy gauge; 780 × 910 × 0.8 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P013 Unlaminated, heavy gauge; 780 × 910 × 1 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P014 Unlaminated, heavy gauge; 780 × 910 × 1.5 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P015 Unlaminated, heavy gauge; 780 × 910 × 2 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P016 Unlaminated, heavy gauge; 780 × 910 × 2.5 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P017 Unlaminated, heavy gauge; 780 × 910 × 3 mm/ per sheet Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P018 Unlaminated variant; 0.2 mm thickness / per square meter Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P019 Unlaminated variant; 0.3 mm thickness / per square meter Cellulose fish paper with film-laminated options Roll / cut length Request a Quote
HT-073-P020 Unlaminated variant; 0.25 mm thickness / per square meter Cellulose fish paper with film-laminated options Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Battery assembly barriers
  • Equipment insulation liners

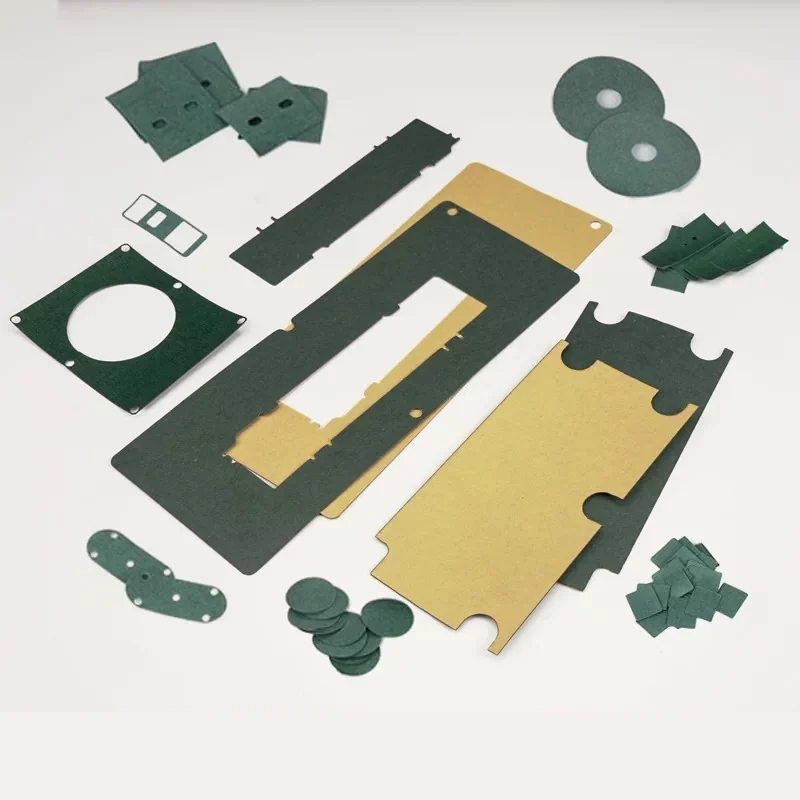

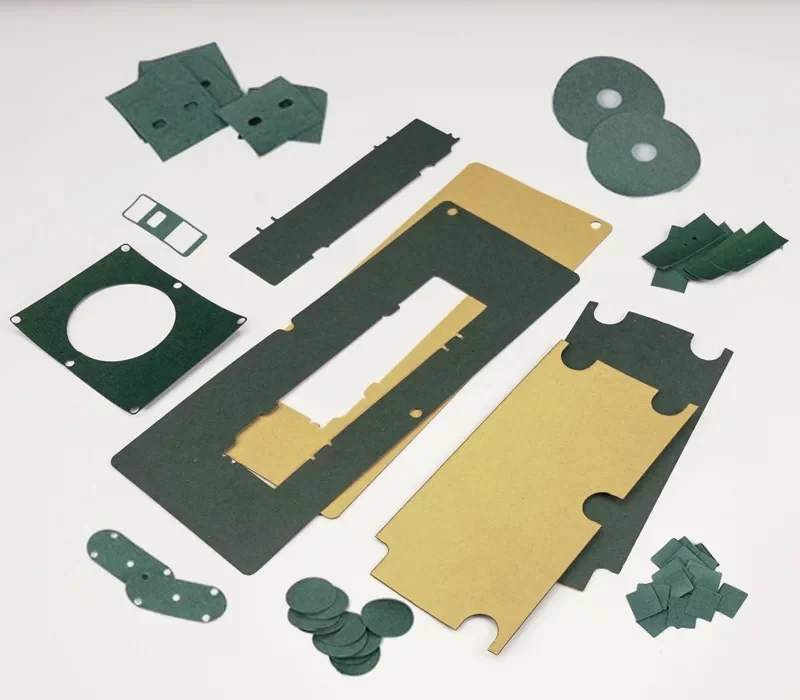

  • Die-cut protective separators
Customization Options

Laminated Green Electrical Fish Paper Ordering Options

Send Requirement ->

For Laminated Green Electrical Fish Paper, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Cellulose fish paper with film-laminated options
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which laminated and plain green fish-paper formats are listed?

The table includes film-laminated 1 m × 1 m entries, separately identified laminated adhesive-backed entries, and unlaminated variants. Heavy-gauge unlaminated sheets include 780 × 910 mm formats in selected thicknesses.

Does every entry in this green fish-paper table include adhesive?

No. Only the entries explicitly labelled laminated, adhesive-backed identify that backing. Film-laminated and unlaminated entries are separate constructions; select the full face-and-backing description rather than relying on the product title.

What material is used for Laminated Green Electrical Fish Paper?

The specified material is cellulose fish paper with film-laminated options.

What should I include in a quotation request?

For model HT-073, send the selected SKU and order quantity. Include laminated or unlaminated construction, adhesive requirement, thickness and sheet dimensions. Pricing is by quotation for the selected specification and quantity.
