Frequently Asked Questions

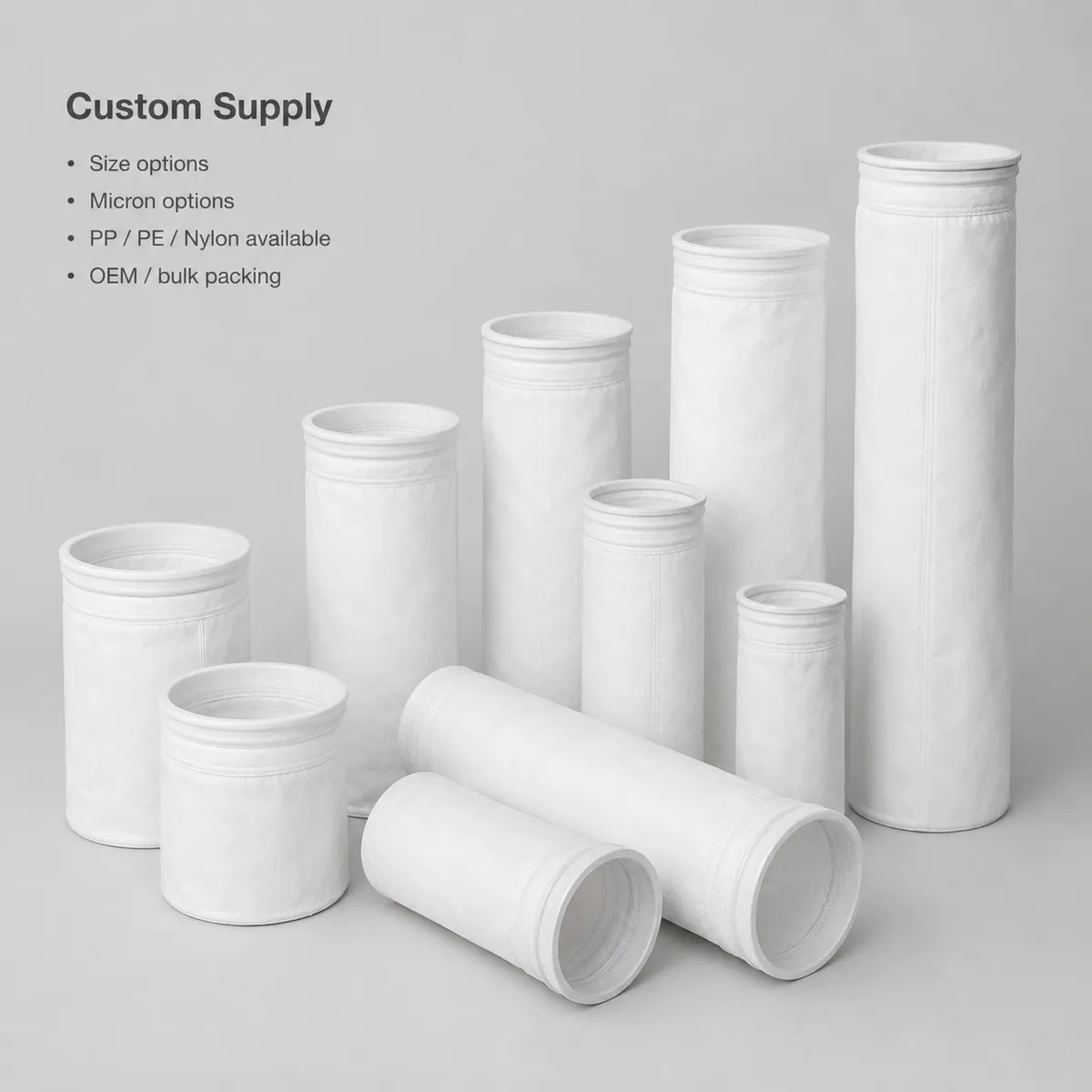

What are the common industrial liquid filter bag sizes?
Common cylindrical-housing formats include Size 1 at 180 mm x 430 mm, Size 2 at 180 mm x 810 mm, Size 3 at 105 mm x 380 mm, and Size 4 at 105 mm x 230 mm. Collar diameter and housing fit should be checked against the installed basket or restrainer.
Can this filter bag be supplied from 1 to 200 micron?
Yes. Standard options cover 1, 5, 10, 25, 50, 75, 100, 150, and 200 micron according to the selected felt or mesh media. Choose the rating with the target particle size, flow rate, and acceptable pressure drop in mind.

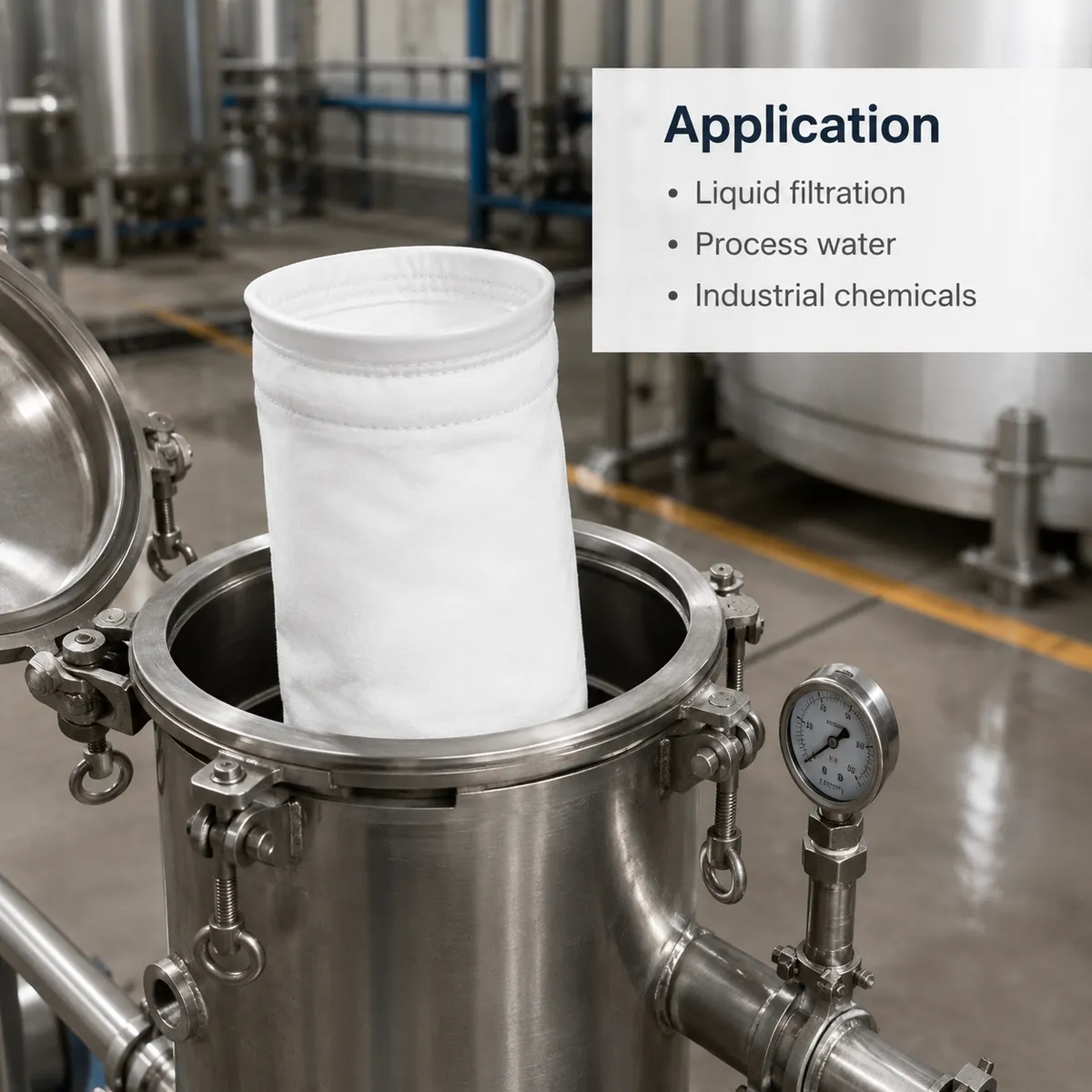

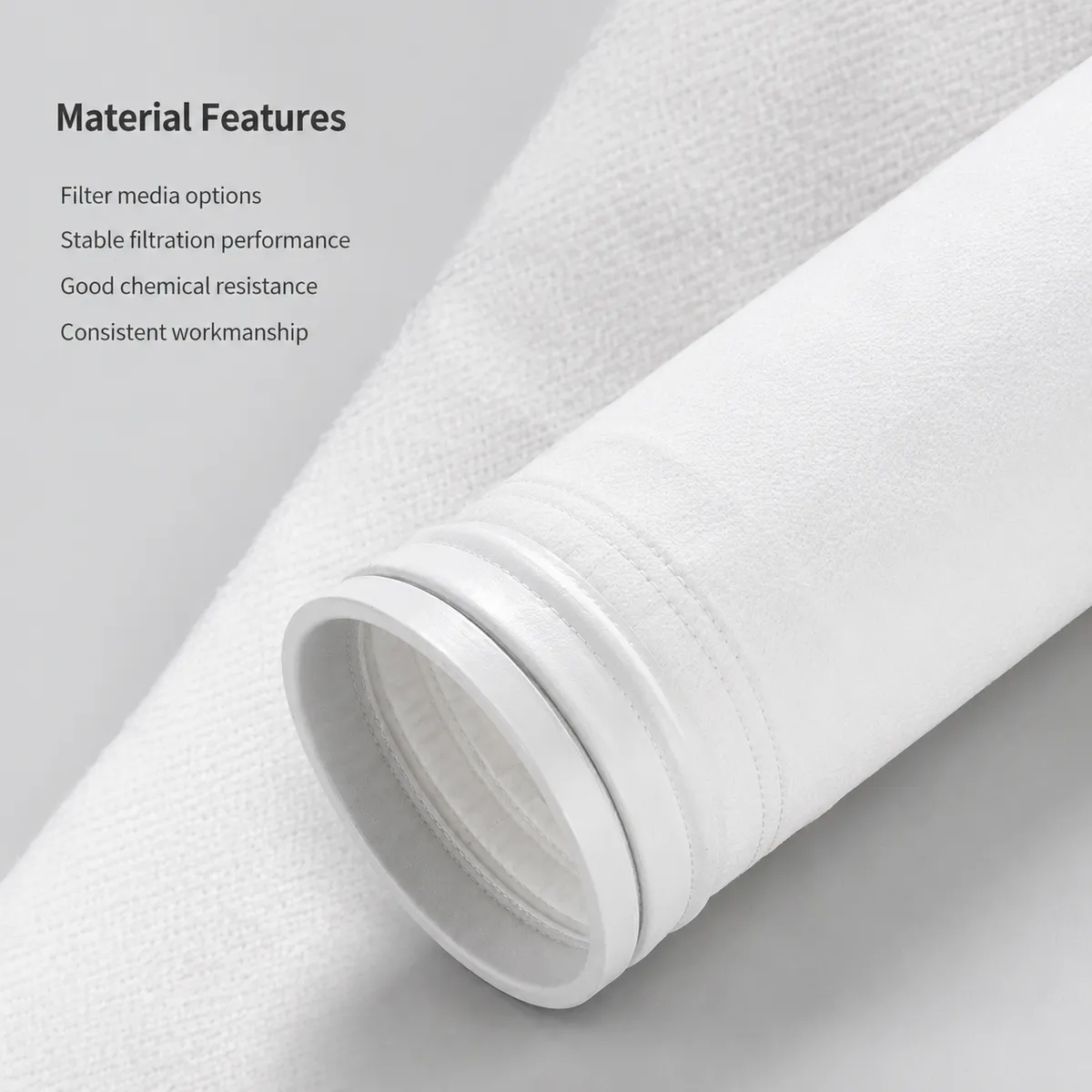

Which filter-bag material is suitable for process water, coatings, or solvent-containing liquids?
Polypropylene is commonly selected for many aqueous process streams, polyester is often chosen where a higher temperature allowance is needed, and nylon monofilament mesh is useful for coarse reusable screening. Confirm the exact liquid chemistry, temperature, and cleaning method before selecting media.
Are the nylon mesh bags reusable?
Nylon monofilament mesh bags can be cleaned and reused when the captured solids, process liquid, and cleaning procedure permit it. Needle-felt bags are normally selected for depth filtration and are generally replaced after loading.
What information is needed to quote a replacement filter bag?
Provide the housing or basket size, bag diameter and length, micron rating, filter media, collar or ring style, liquid and operating temperature, quantity, and any packaging or labeling requirement.
What are the order quantity and lead time requirements for Industrial Liquid Filter Bag with Plastic Snap Ring?
Standard stocked specifications: 25 pieces; custom micron, collar, or private-label program: 500 pieces Lead time: Stocked Size 1, Size 2, and Size 4 PP bags: 3-5 days; polyester and nylon mesh selections: 5-7 days; custom collar, seam, label, or special size: 10-15 days. Confirm the selected model and quantity in the quotation.
