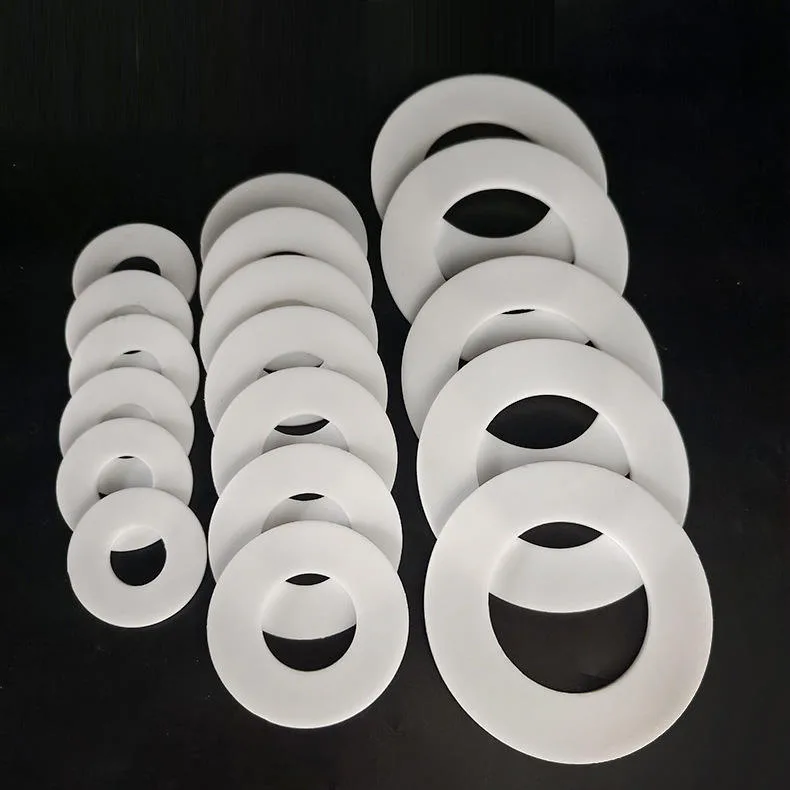

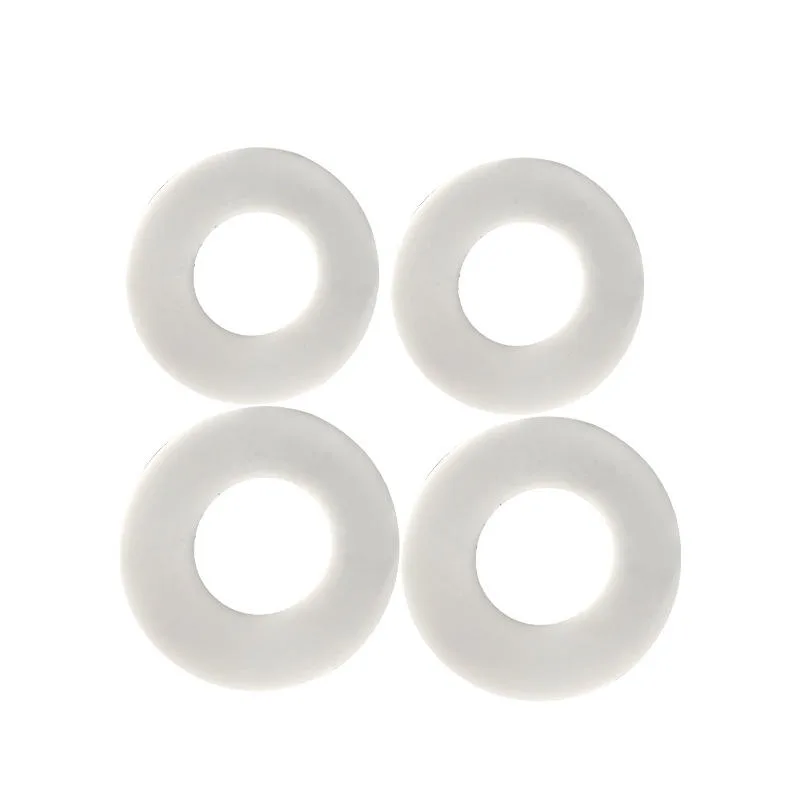

Custom PTFE Gaskets

PTFE sealing parts produced from virgin, modified or filled grades and matched to the fluid, temperature, pressure and flange geometry of the application.

  • Broad chemical resistance
  • low friction
  • heat resistance
  • custom geometry
  • non-contaminating virgin options
Request a Quote -> Custom Size ->
Product Overview

Custom PTFE Gaskets Supplier

PTFE sealing parts produced from virgin, modified or filled grades and matched to the fluid, temperature, pressure and flange geometry of the application. Typical use includes Chemical flanges, pumps, valves. Material: Virgin, modified or filled polytetrafluoroethylene (PTFE). Confirm the required surface and edge finish in the quotation. Stated operating range: -200°C to +260°C for PTFE grades; pressure and creep must be evaluated with the joint

Technical Specifications

Product Parameters

Material Virgin, modified or filled polytetrafluoroethylene (PTFE)
Temperature Range -200°C to +260°C for PTFE grades; pressure and creep must be evaluated with the joint
Size Options Custom OD, ID, bolt pattern, thickness and profile from drawing or sample
Color Options White virgin PTFE; black carbon-filled; tan etched; custom compound colors
Lead Time 7–20 working days after drawing and material approval
Customization Material grade, filler, geometry, thickness, surface treatment, tolerance, cleanliness and traceability
MOQ 100 pieces for die-cut parts; 10 pieces for machined prototypes
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Purchasing and Engineering Notes

Custom PTFE Gaskets Procurement Details

Applicable sizes and tolerance Custom OD, ID, bolt pattern, thickness and profile from drawing or sample Confirm dimensional tolerances against the selected format or drawing before ordering.
Structure, surface and edge Material: Virgin, modified or filled polytetrafluoroethylene (PTFE). Confirm the required surface and edge finish in the quotation.
Material selection Virgin, modified or filled polytetrafluoroethylene (PTFE)
Recommended use temperature -200°C to +260°C for PTFE grades; pressure and creep must be evaluated with the joint
Packing and carton reference Carton packing, bulk packing or export packing can be discussed by order requirement.
Order quantity 100 pieces for die-cut parts; 10 pieces for machined prototypes
Sample policy Request a sample quotation specifying the model, quantity, delivery address and freight requirements.
Production cycle 7–20 working days after drawing and material approval
Models & Available Formats

Standard Format Options

Select a listed specification to request a quotation. Stock availability, order quantity and lead time are confirmed for the selected format.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
0.5–3 mm 0.5–3 mm · die-cut flat gasket · virgin PTFE Virgin, modified or filled polytetrafluoroethylene (PTFE) Confirm by selected format Request a Quote
3–25 mm 3–25 mm · waterjet or CNC gasket · virgin or modified PTFE Virgin, modified or filled polytetrafluoroethylene (PTFE) Confirm by selected format Request a Quote
custom profile custom profile · machined seal · filled PTFE Virgin, modified or filled polytetrafluoroethylene (PTFE) Confirm by selected format Request a Quote

Note: These are format references, not supplier-assigned SKUs. Confirm dimensions, material, availability and order quantity in the quotation.

Send specification for quotation ->
Applications

Typical Applications

  • Chemical flanges
  • pumps
  • valves
  • laboratory equipment
  • thermal processing
  • electrical isolation
Customization Options

Custom PTFE Gaskets Ordering Options

Send Requirement ->

Custom programme: Material grade, filler, geometry, thickness, surface treatment, tolerance, cleanliness and traceability. Size and tolerance reference: Custom OD, ID, bolt pattern, thickness and profile from drawing or sample Confirm dimensional tolerances against the selected format or drawing before ordering. Packing and production reference: Carton packing, bulk packing or export packing can be discussed by order requirement. 7–20 working days after drawing and material approval

  • Size Custom OD, ID, bolt pattern, thickness and profile from drawing or sample
  • Material Virgin, modified or filled polytetrafluoroethylene (PTFE)
  • Color White virgin PTFE; black carbon-filled; tan etched; custom compound colors
  • Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
  • Logo Logo, label or buyer mark can be discussed by order requirement
FAQ

Frequently Asked Questions

Is virgin PTFE right for every gasket?

No, high load or pressure may require modified or filled PTFE.

What is needed to quote?

Send the drawing, medium, pressure, temperature and quantity.

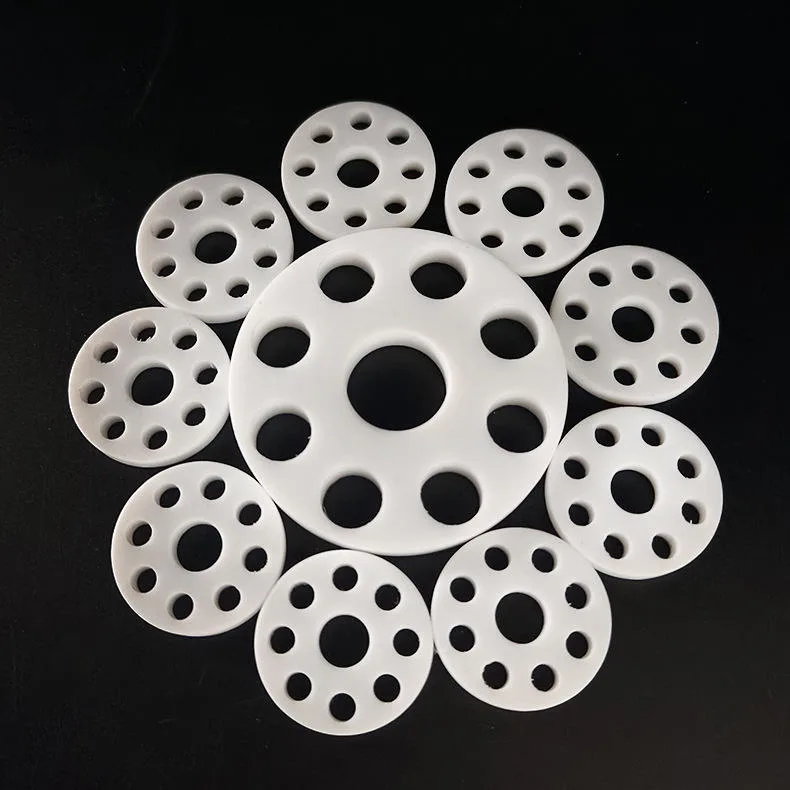

Can bolt holes be cut?

Yes, bolt patterns and complex profiles are produced from drawing.

What are the order quantity and lead time requirements for Custom PTFE Gaskets?

100 pieces for die-cut parts; 10 pieces for machined prototypes Lead time: 7–20 working days after drawing and material approval. Confirm the selected model and quantity in the quotation.
