WOLTOOL
Request a Quote ->

PTFE Tube

PTFE tube for chemical fluid handling, electrical insulation, and custom machined industrial components.

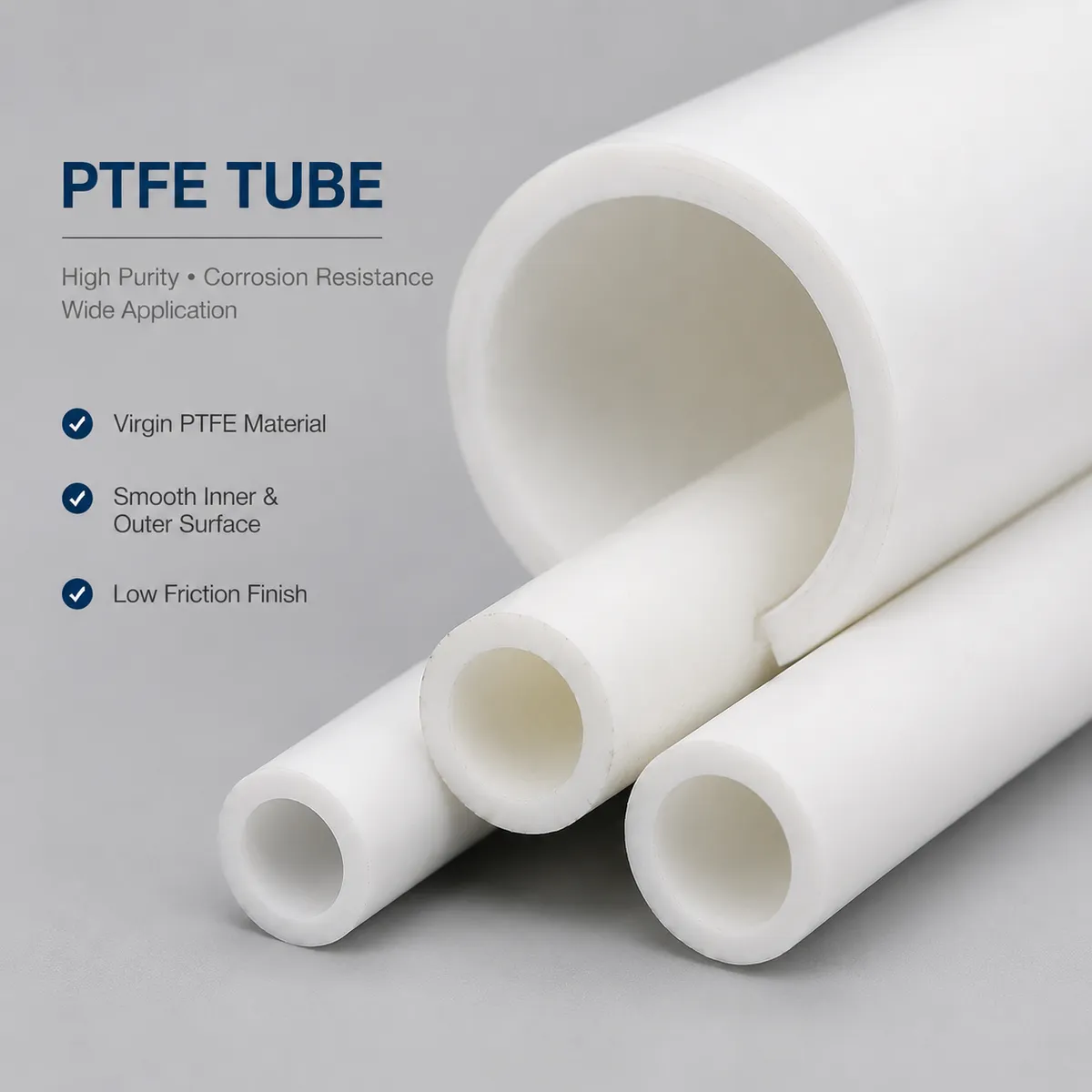

  • Chemical resistant
  • heat resistant
  • low friction surface

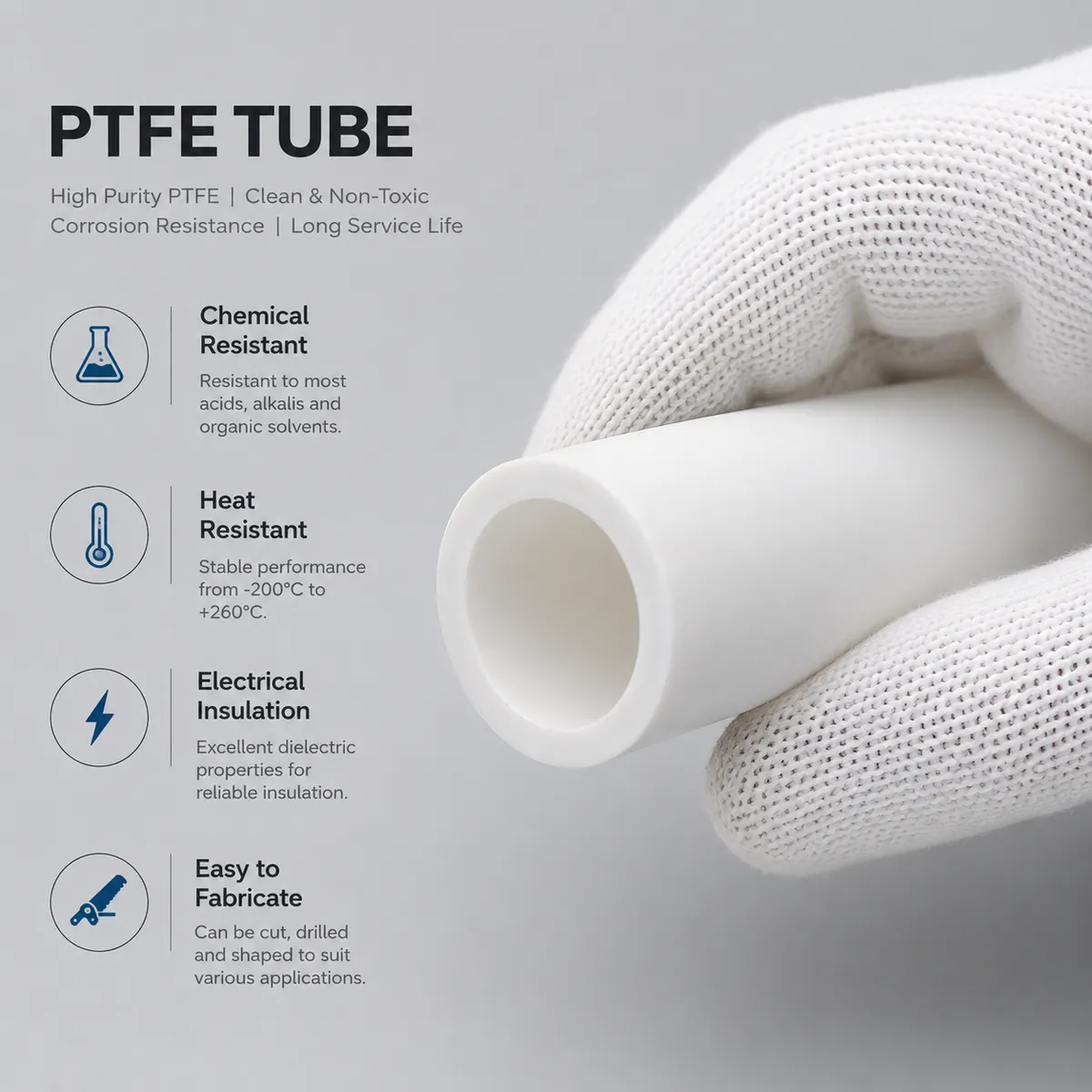

  • smooth inner and outer surface
  • electrical insulation
Request a Quote -> Custom Size ->
Product Overview

PTFE Tube Supplier

PTFE tube for chemical fluid handling, electrical insulation, and custom machined industrial components. Typical use includes Fluid handling, chemical equipment, electrical insulation, laboratory tubing, machined sleeves, bushings, and corrosion-resistant components.. Solid engineering material with a machined, cut or sintered industrial profile. Clean-cut or lightly chamfered edges; fragile ceramic parts use protective separation during packing. Recommended operating range: -200°C to +260°C

Technical Specifications

Product Parameters

Material Virgin PTFE (Polytetrafluoroethylene)
Temperature Range -200°C to +260°C

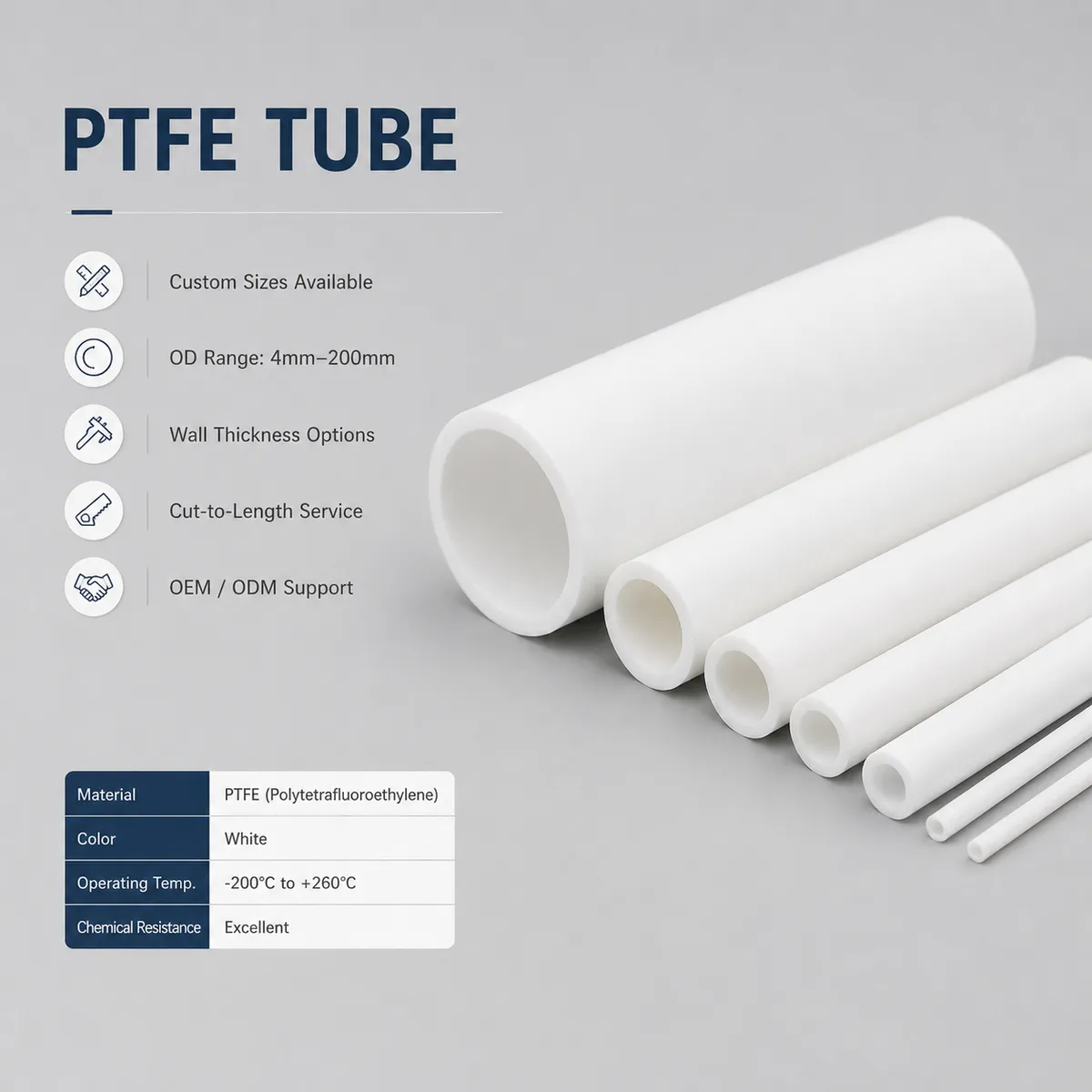

Size Options OD 4mm-200mm; wall thickness and ID can be customized; standard length 1000mm or cut-to-length service.
Color Options White; custom colors available for bulk orders on request.
Lead Time Ready stock sizes: 3-7 days; custom production: 10-20 days.
Customization Custom OD, ID, wall thickness, cut length, tolerance, machining, packaging, and OEM/ODM support.
MOQ Small trial orders available; custom sizes and modified materials subject to MOQ confirmation.
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Purchasing and Engineering Notes

PTFE Tube Procurement Details

Applicable sizes and tolerance OD 4mm-200mm; wall thickness and ID can be customized; standard length 1000mm or cut-to-length service.. Typical cut or machined tolerance: +/-0.2 mm; tighter drawing tolerances are available for suitable dimensions.
Structure, surface and edge Solid engineering material with a machined, cut or sintered industrial profile. Clean-cut or lightly chamfered edges; fragile ceramic parts use protective separation during packing.
Reinforcement Fiberglass reinforcement: not used unless stated in the selected material construction.
Material selection PTFE offers lower friction and broader chemical resistance than rubber; choose filled PTFE only when higher wear resistance is needed.
Recommended use temperature -200°C to +260°C

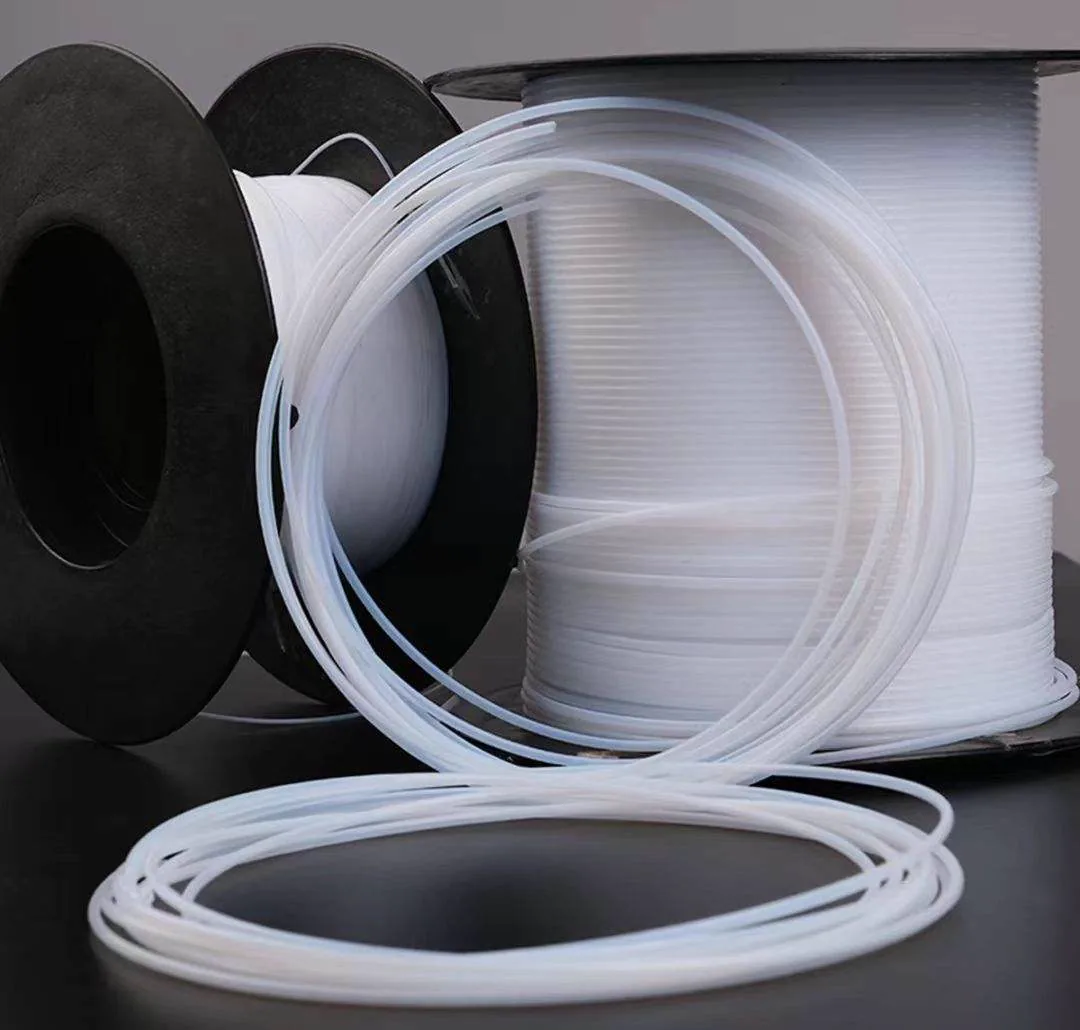

Packing and carton reference Coils or straight lengths in PE sleeves; 50-100 m per carton
Standard MOQ 100 m
Custom MOQ 500 m
Sample policy USD 15-30 plus freight for a standard coil
Production cycle Stock: 3-7 days; custom dimensions: 10-15 days
Available test and inspection files Material declaration, dimensional inspection record, batch traceability label and packing list.
Typical purchasing teams Electrical-equipment makers, process-equipment OEMs, maintenance teams and technical distributors.
Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote
SKU / Model Size Available Specification Material MOQ Lead Time Quotation Note
PTT-OD06-ID03-1000 OD 6mm x ID 3mm x 1000mm PTFE Tube Virgin PTFE Small trial orders available; custom sizes and modified materials subject to MOQ confirmation. Ready stock sizes: 3-7 days; custom production: 10-20 days. Small diameter standard stock option
PTT-OD10-ID06-1000 OD 10mm x ID 6mm x 1000mm PTFE Tube Virgin PTFE Small trial orders available; custom sizes and modified materials subject to MOQ confirmation. Ready stock sizes: 3-7 days; custom production: 10-20 days. Common size for fluid handling and insulation
PTT-OD20-ID14-1000 OD 20mm x ID 14mm x 1000mm PTFE Tube Virgin PTFE Small trial orders available; custom sizes and modified materials subject to MOQ confirmation. Ready stock sizes: 3-7 days; custom production: 10-20 days. Medium wall tube for industrial use
PTT-OD50-ID40-1000 OD 50mm x ID 40mm x 1000mm PTFE Tube Virgin PTFE Small trial orders available; custom sizes and modified materials subject to MOQ confirmation. Ready stock sizes: 3-7 days; custom production: 10-20 days. Large diameter standard option
PTT-CUSTOM Custom OD, ID, wall thickness, and length Custom PTFE Tube Virgin PTFE or modified PTFE on request Small trial orders available; custom sizes and modified materials subject to MOQ confirmation. Ready stock sizes: 3-7 days; custom production: 10-20 days. Subject to drawing, tolerance, and quantity confirmation

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->

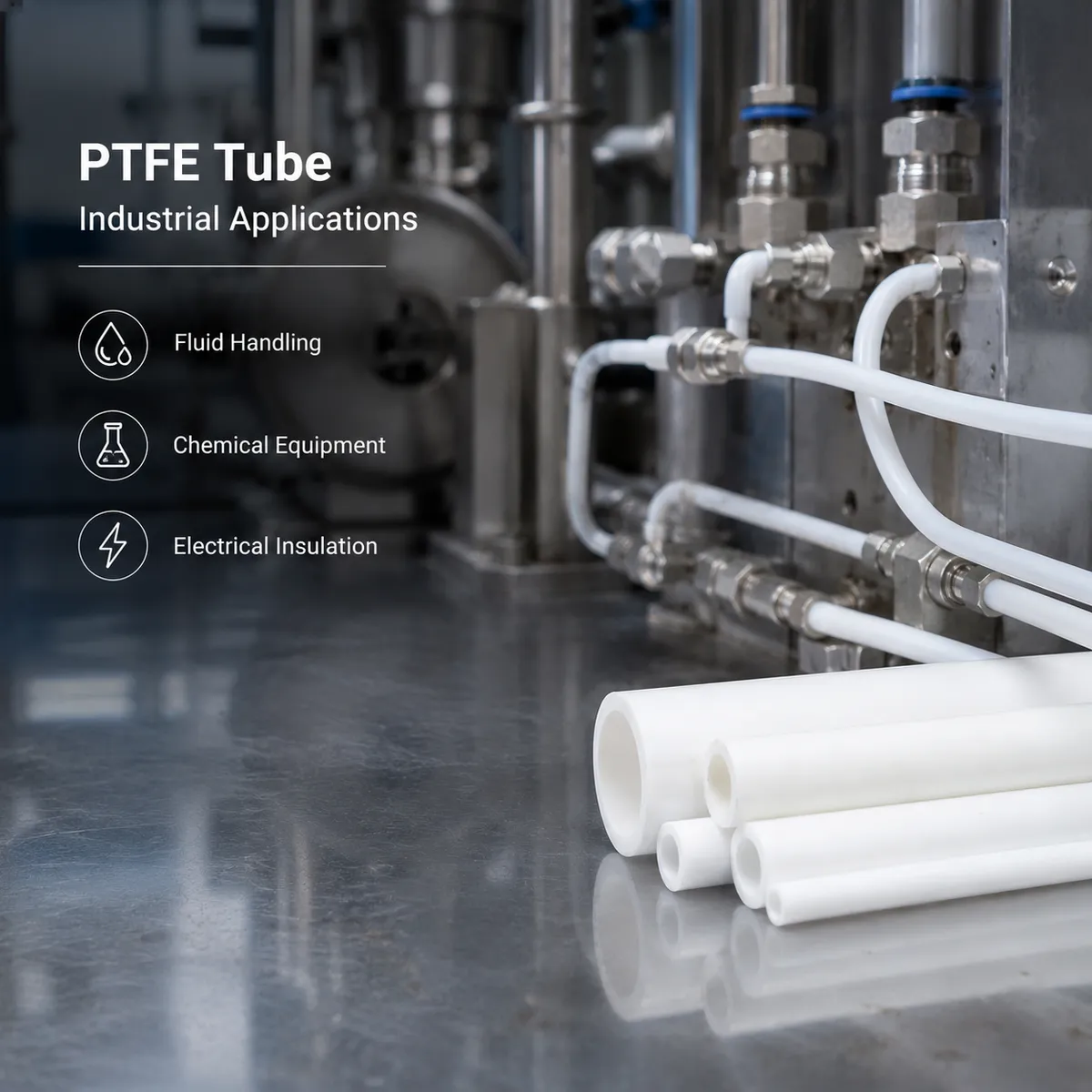

Applications

Typical Applications

  • Fluid handling, chemical equipment, electrical insulation, laboratory tubing, machined sleeves, bushings, and corrosion-resistant components.
Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Custom OD, ID, wall thickness, cut length, tolerance, machining, packaging, and OEM/ODM support.. Size and tolerance reference: OD 4mm-200mm; wall thickness and ID can be customized; standard length 1000mm or cut-to-length service.. Typical cut or machined tolerance: +/-0.2 mm; tighter drawing tolerances are available for suitable dimensions. Packing and production reference: Coils or straight lengths in PE sleeves; 50-100 m per carton Stock: 3-7 days; custom dimensions: 10-15 days

  • Size OD 4mm-200mm, wall thickness and ID can be customized, standard length 1000mm or cut-to-length service.
  • Material Virgin PTFE (Polytetrafluoroethylene)
  • Color White; custom colors available for bulk orders on request.
  • Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
  • Logo Logo, label or buyer mark can be discussed by order requirement
FAQ

Frequently Asked Questions

Can you supply PTFE tubes with custom OD and ID?

Yes. Custom outer diameter, inner diameter, wall thickness, and cut length can be arranged based on drawings or samples.

What information is needed for quotation?

Please provide OD, ID, length, quantity, tolerance requirement, material grade, and intended application.

Do you offer cut-to-length service for PTFE tubes?

Yes. Standard 1000mm lengths and custom cut lengths are available depending on order quantity and tolerance needs.

Can PTFE tubes be used for chemical fluid handling?

PTFE has strong chemical resistance and is commonly used for chemical equipment, fluid transfer, and corrosion-resistant applications.

What is the usual lead time?

Standard stock sizes are usually prepared within 3-7 days. Custom sizes or bulk production normally require about 10-20 days.

What are the standard and custom order quantities for PTFE Tube?

Standard MOQ: 100 m. Custom MOQ: 500 m. Stock: 3-7 days; custom dimensions: 10-15 days.

What packing and technical files can be supplied with PTFE Tube?

Coils or straight lengths in PE sleeves; 50-100 m per carton Available files include: Material declaration, dimensional inspection record, batch traceability label and packing list.
