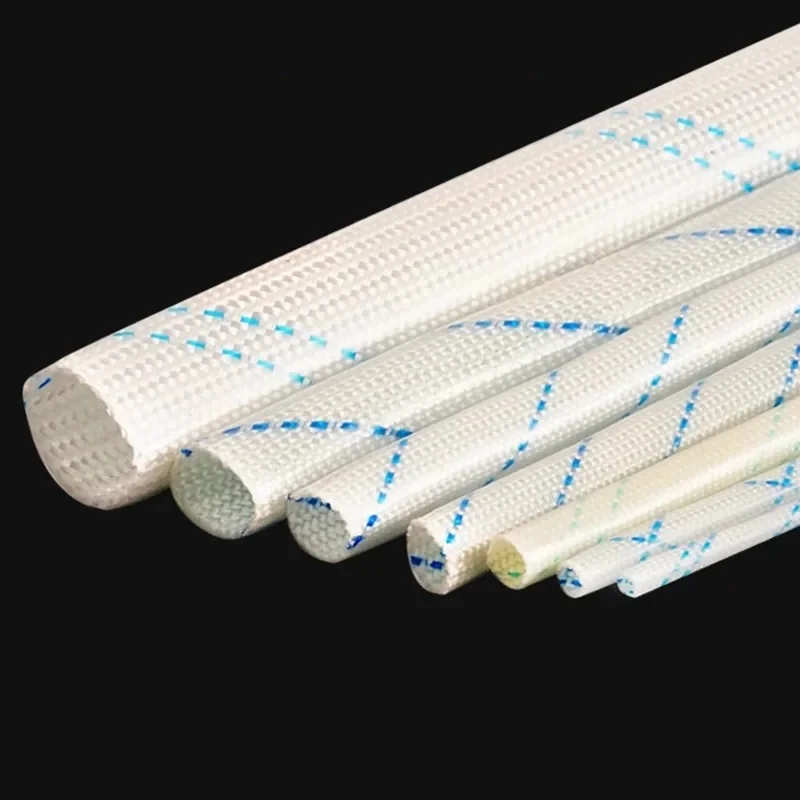

Heavy Wall Varnished Fiberglass Wire Sleeves

Heavy-wall varnished fiberglass wire sleeves with stated internal and flattened dimensions for harness and winding lead protection.

  • Inside and flattened dimensions
  • Cut-piece and coil options

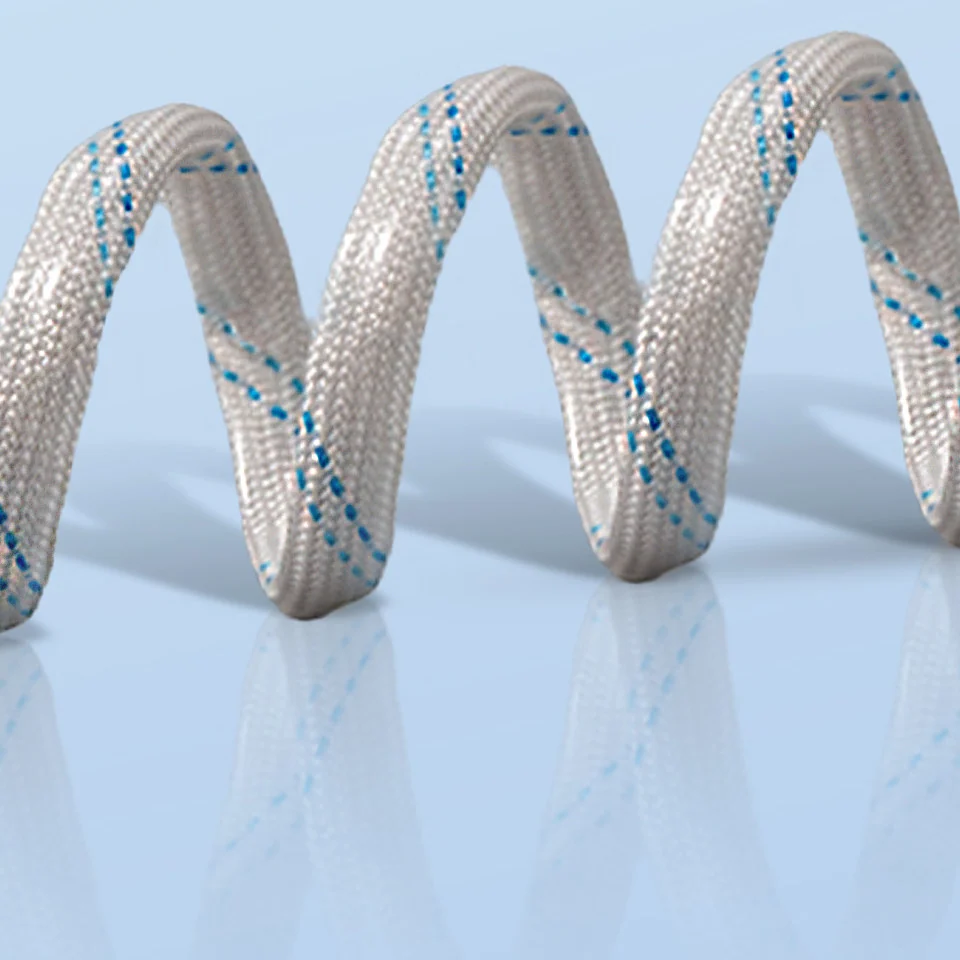

  • Flexible heavy-wall braid
Request a Quote -> Custom Size ->
Product Overview

Heavy Wall Varnished Fiberglass Wire Sleeves Supplier

The listed sleeve options describe round inside diameter and, on many variants, flattened width. These are different measurements of the same flexible tube. Select the diameter for the finished bundle and use flattened width as a handling reference; do not size a round conductor from the flat measurement alone.

Technical Specifications

Product Parameters

Material and construction Varnished braided fiberglass
Standard formats Φ1 mm 10 pieces Flattened width 2.5 mm; Φ1.5 mm 10 pieces Flattened width 3.5 mm; Φ2 mm 10 pieces Flattened width 4 mm; 54 listed formats
Ordering model HT-079
Price Request a Quote
Construction options Inside and flattened dimensions; Cut-piece and coil options; Flexible heavy-wall braid
MOQ Quoted by the selected supply unit and quantity
Packaging Coils or matched sets protected against sharp bends and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-079-003 Φ1 mm 10 pieces Flattened width 2.5 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-004 Φ1.5 mm 10 pieces Flattened width 3.5 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-005 Φ2 mm 10 pieces Flattened width 4 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-006 Φ2.5 mm 10 pieces Flattened width 5 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-007 Φ3 mm 10 pieces Flattened width 6 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-008 Φ3.5 mm 10 pieces Flattened width 6 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-009 Φ4 mm 10 pieces Flattened width 7 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-010 Φ5 mm 10 pieces Flattened width 9 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-011 Φ6 mm 10 pieces Flattened width 11 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-012 Φ7 mm 10 pieces Flattened width 12 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-013 Φ8 mm 10 pieces Flattened width 13 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-014 Φ9 mm 10 pieces Flattened width 15 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-015 Φ10 mm 10 pieces Flattened width 16 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-016 Φ12 mm 5 pieces Flattened width 18 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-017 Φ14 mm 5 pieces Flattened width 20 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-018 Φ16 mm 5 pieces Flattened width 25 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-019 Φ18 mm 5 pieces Flattened width 27 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-020 Φ20 mm 5 pieces Flattened width 30 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-021 Φ22 mm 2 pieces Flattened width 35 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-022 Φ25 mm 2 pieces Flattened width 40 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-023 Φ28 mm 2 pieces Flattened width 44 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-024 Φ30 mm 2 pieces Flattened width 50 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-025 Φ35 mm 1 piece Flattened width 52 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-026 Φ40 mm 1 piece Flattened width 65 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-027 Φ50 mm × pieces Flattened width 78 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-028 Φ60 mm 1 piece Flattened width 94 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-029 Φ1 mm 200 m × roll Flattened width 2.5 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-030 Φ1.5 mm 200 m × roll Flattened width 3.5 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-031 Φ2 mm 200 m × roll Flattened width 4 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-032 Φ2.5 mm 200 m × roll Flattened width 5 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-033 Φ3 mm 200 m × roll Flattened width 6 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-034 Φ4 mm 200 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-035 Φ5 mm 100 m × roll Flattened width 10 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-036 Φ6 mm 100 m × roll Flattened width 11 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-037 Φ7 mm 100 m × roll Flattened width 12 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-038 Φ8 mm 100 m × roll Flattened width 14 mm Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-039 Φ9 mm 100 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-040 Φ10 mm 100 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-041 Φ12 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-042 Φ14 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-043 Φ16 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-044 Φ18 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-045 Φ20 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-046 Φ22 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-047 Φ25 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-048 Φ28 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-049 Φ30 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-050 Φ35 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-051 Φ40 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-052 Φ50 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-053 Φ60 mm 50 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-054 Φ3.5 mm 200 m × roll Varnished braided fiberglass Roll / cut length Request a Quote
HT-079-055 Φ1 mm 5 pieces Flattened width 2.5 mm Varnished braided fiberglass Listed pack Request a Quote
HT-079-056 ID 10 mm 10 m 1 roll Flattened width 16 mm Varnished braided fiberglass Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

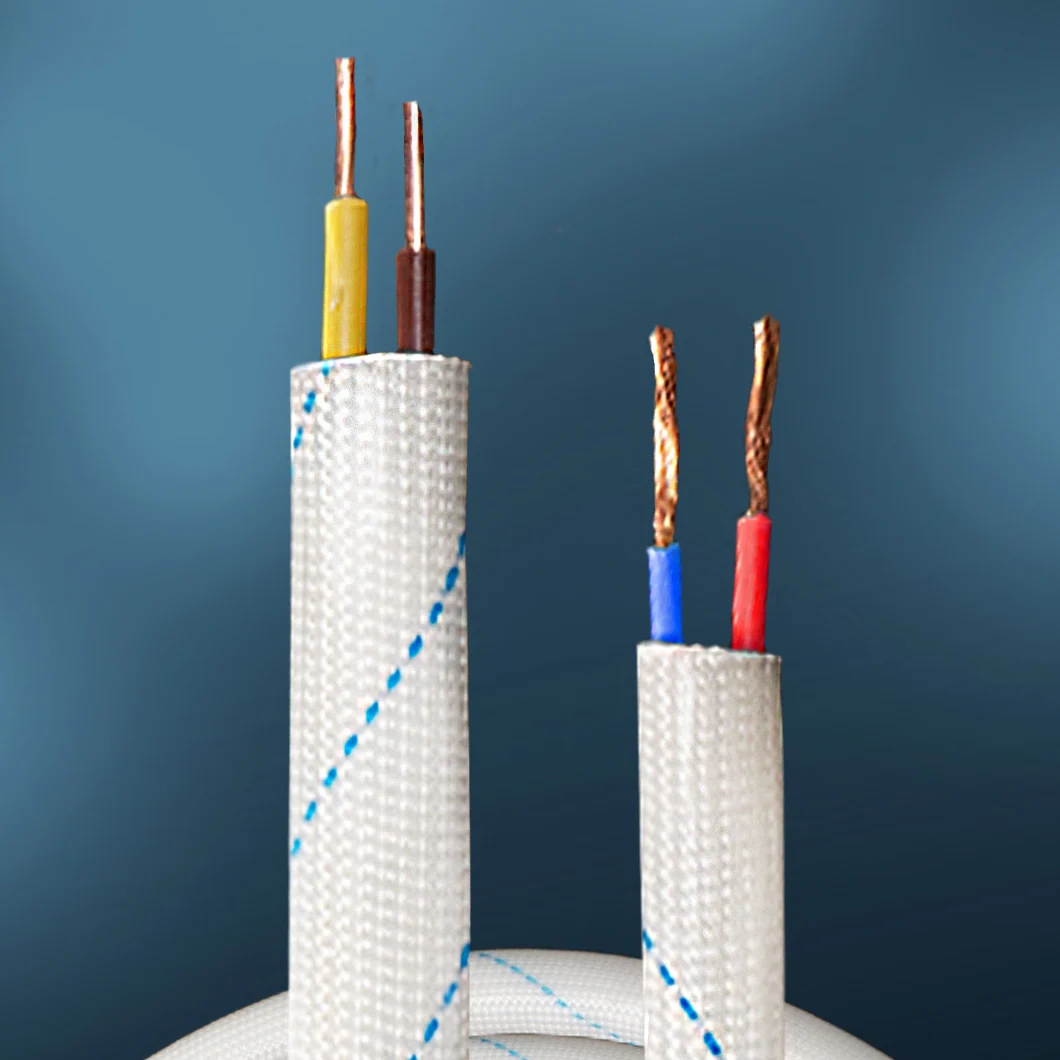

  • Winding lead protection
  • Compressor wiring covers

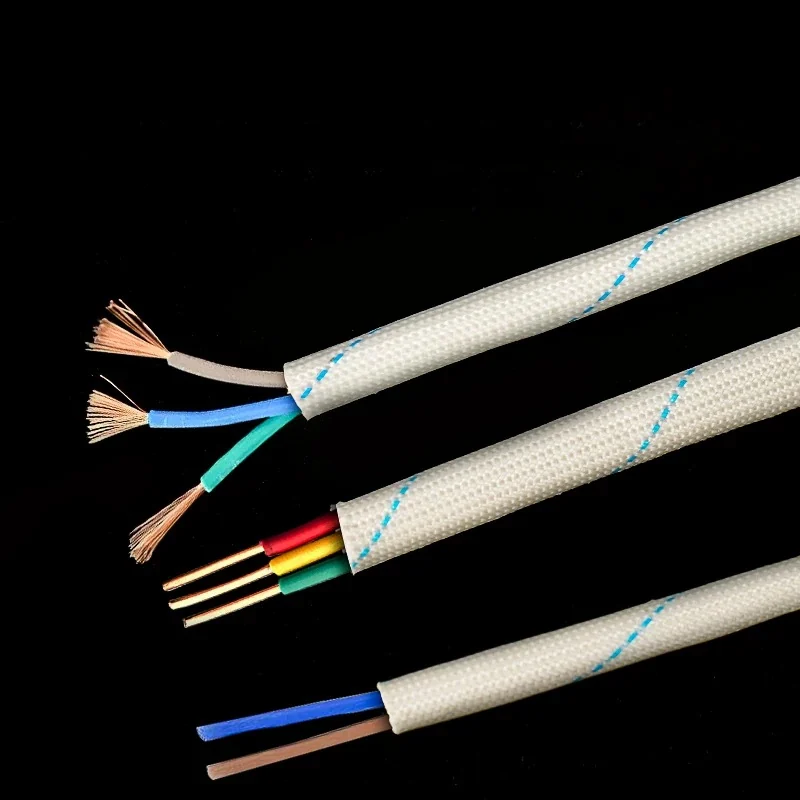

  • Electrical harness sleeves
Customization Options

Heavy Wall Varnished Fiberglass Wire Sleeves Ordering Options

Send Requirement ->

For Heavy Wall Varnished Fiberglass Wire Sleeves, specify inside diameter, outside diameter where applicable, cut length and connection layout.

  • Dimensions and construction Specify inside diameter, outside diameter where applicable, cut length and connection layout.
  • Material Varnished braided fiberglass
  • Supply and packing Coils or matched sets protected against sharp bends and packed in cartons.
FAQ

Frequently Asked Questions

How are inside size and flattened width shown for heavy-wall sleeves?

Several entries provide both a sleeve size and flattened width. For example, the 10 mm ten-piece entry states 16 mm flattened width, while the 1 mm ten-piece entry states 2.5 mm flattened width. Retain both labelled values when identifying the format.

Are cut-piece packs and long coils listed separately?

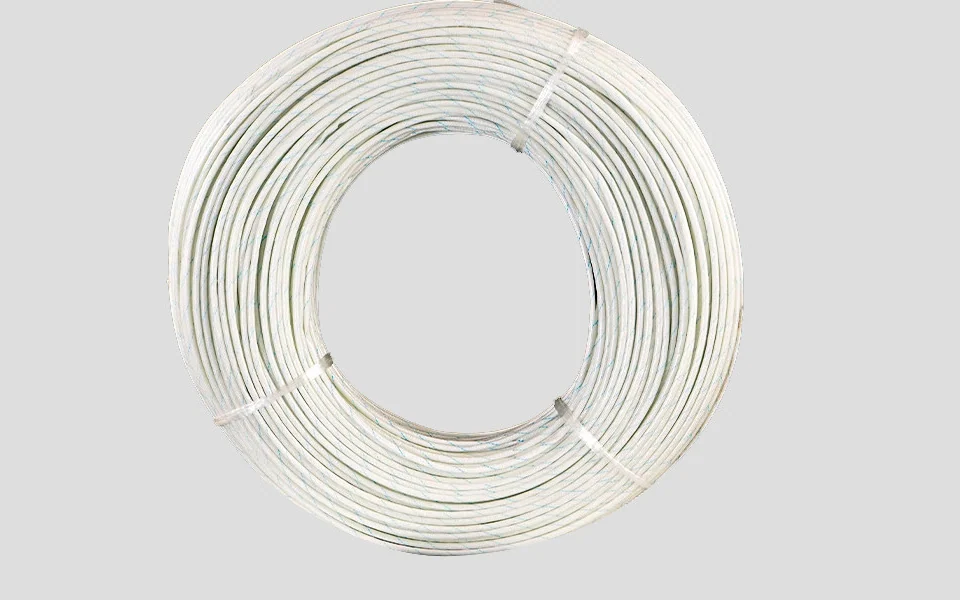

Yes. The table includes piece-count entries, such as ten 10 mm sleeves, and coil entries, such as 10 mm × 100 m. A separate ID 10 mm × 10 m roll is also listed. Choose the exact piece-count or roll-length description.

What material is used for Heavy Wall Varnished Fiberglass Wire Sleeves?

The specified material is varnished braided fiberglass.

What should I include in a quotation request?

For model HT-079, send the selected SKU and order quantity. Include sleeve inside size, flattened width where stated, cut-piece or coil format and pack quantity. Pricing is by quotation for the selected specification and quantity.
