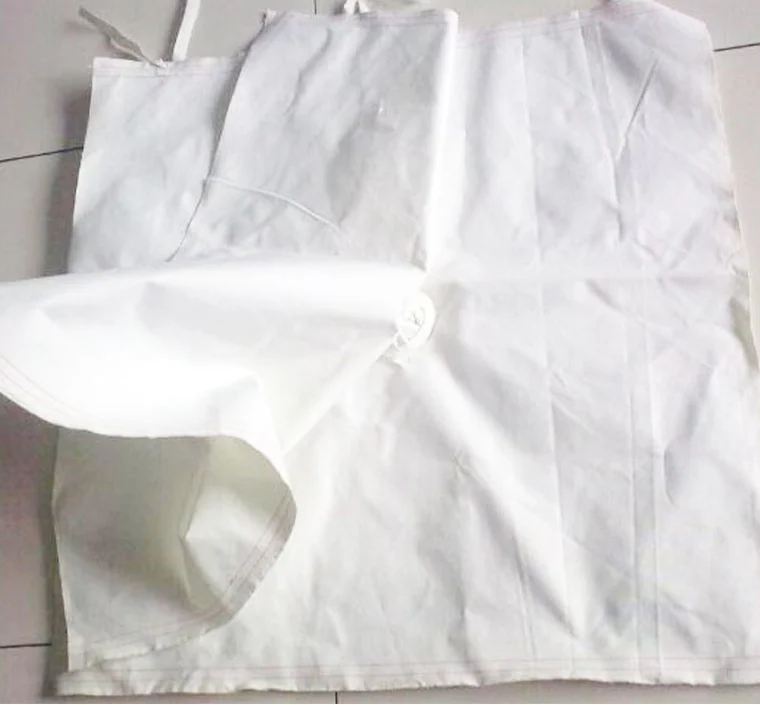

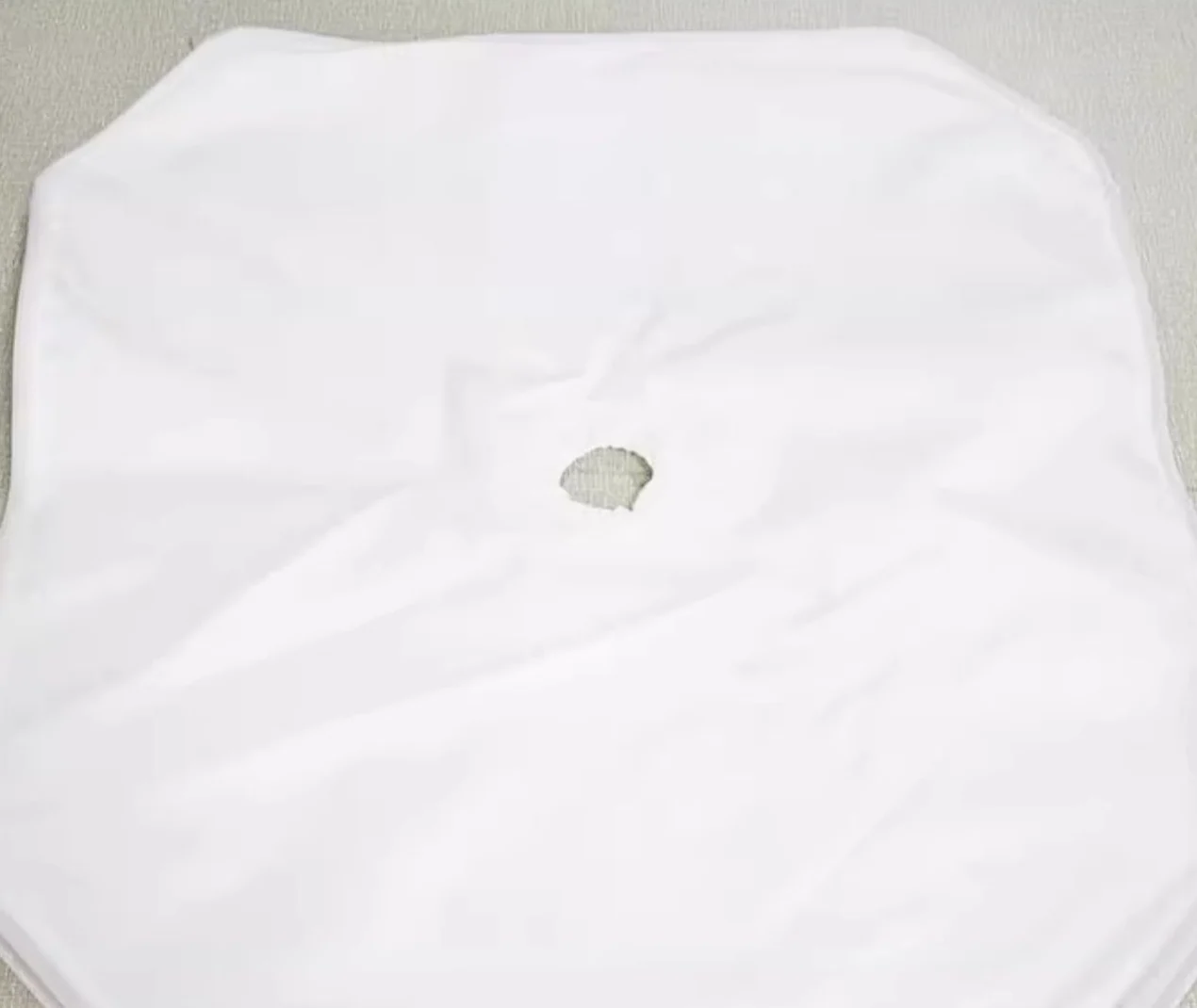

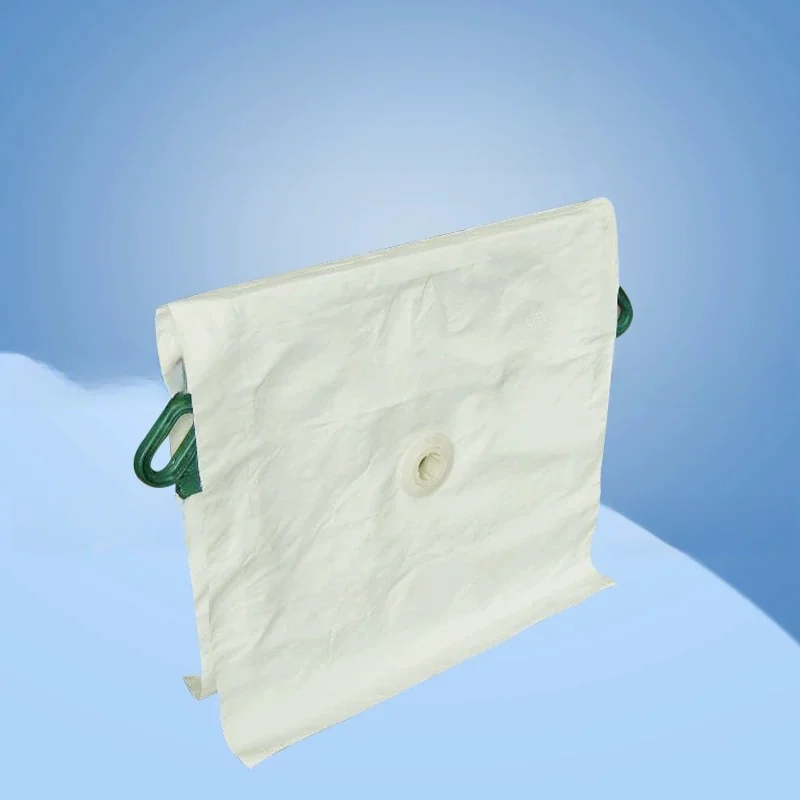

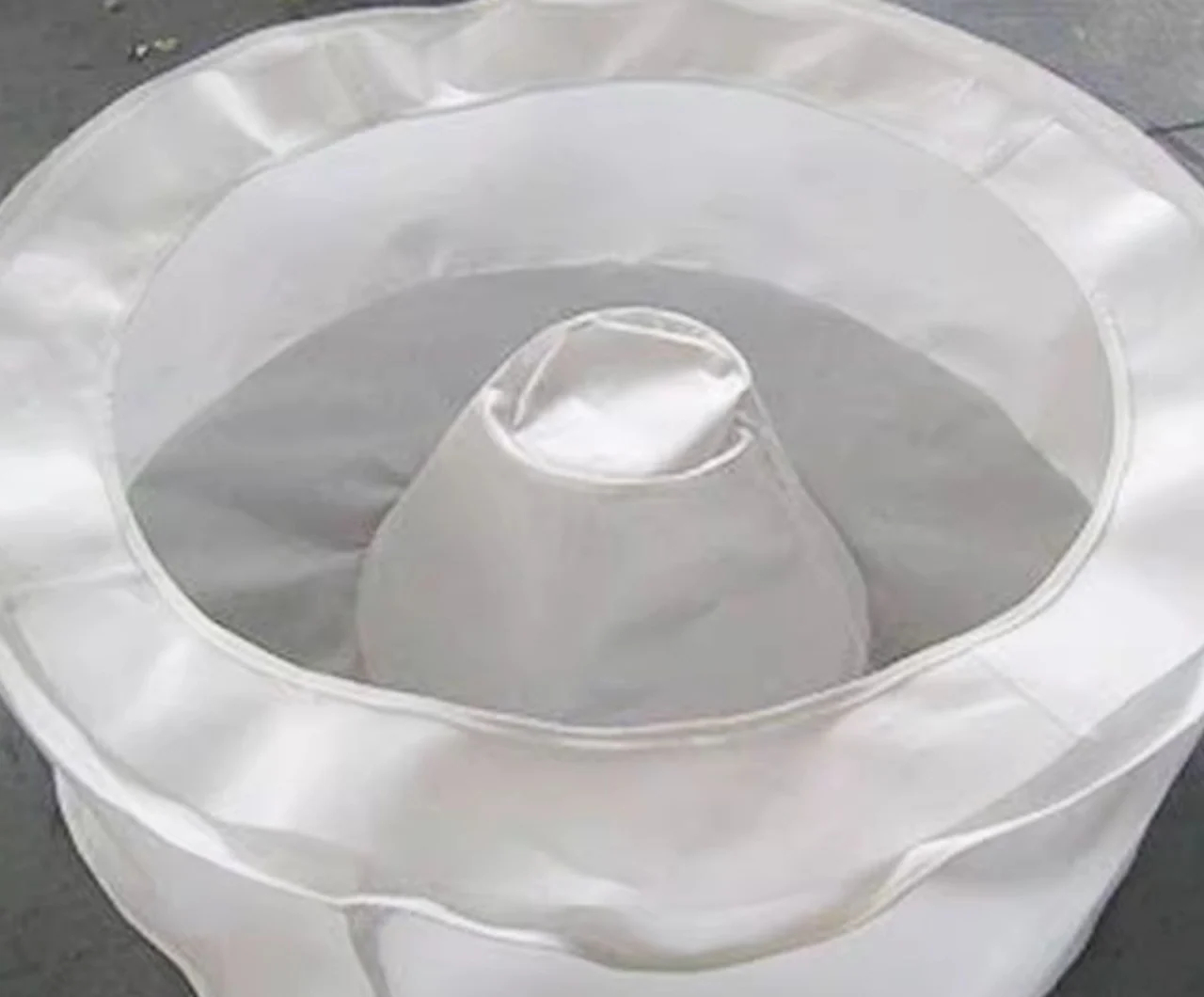

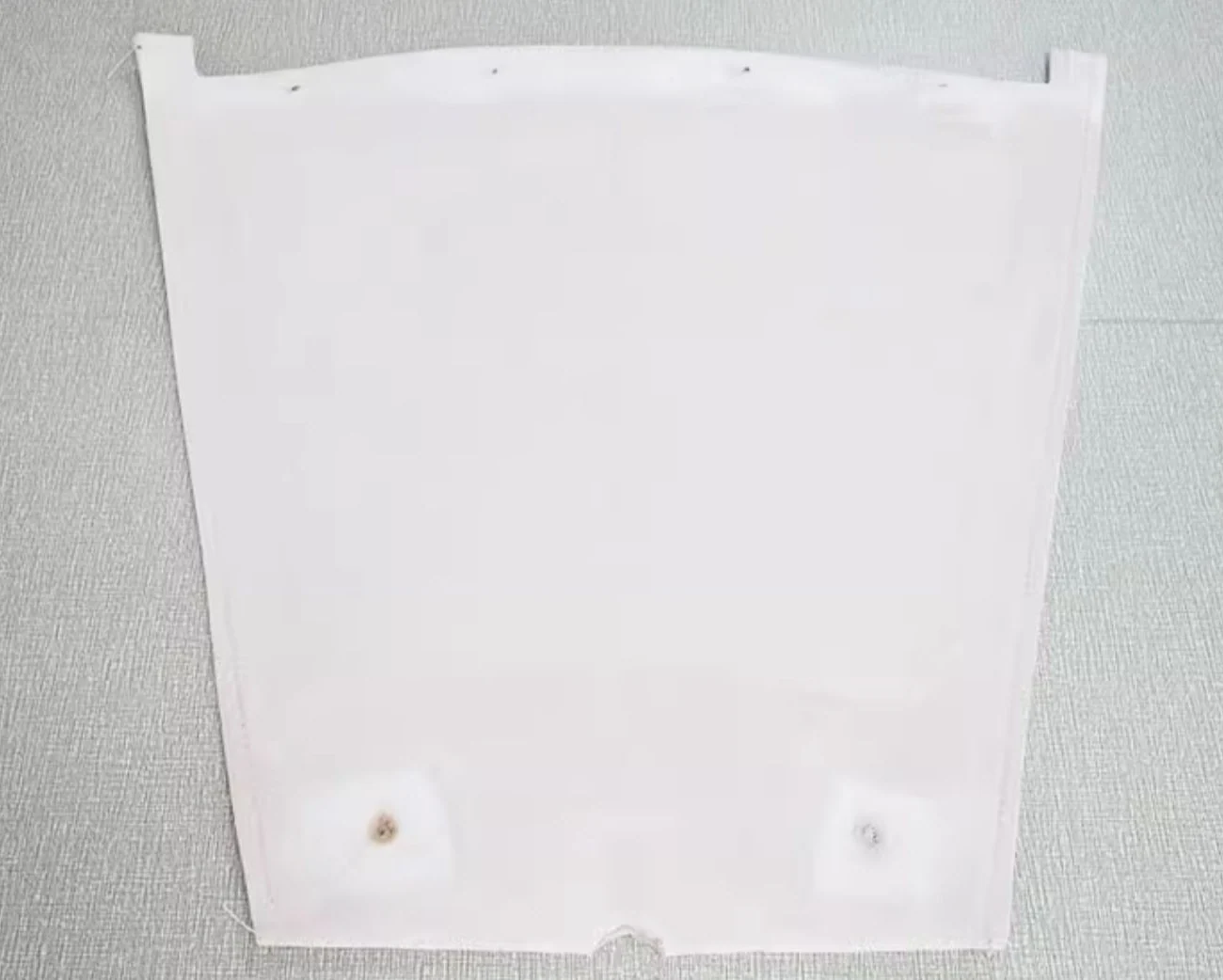

Filter Press Cloth Panels

Filter press cloth panels and media grades for plate-and-frame dewatering, sludge handling and industrial solids separation.

  • Multiple woven media grades
  • Panel and port layouts by drawing
  • Application-specific dewatering media
Request a Quote -> Custom Size ->
Product Overview

Filter Press Cloth Panels Supplier

The cloth must align with the plate ports, feed opening and sealing face. A media designation alone does not define a finished panel. Choose the fabric for the slurry, then specify plate size, hole positions, fixing tabs and seam layout so the cloth can seal and discharge correctly.

Technical Specifications

Product Parameters

Material and construction Polyester, polypropylene and other woven filter cloth grades
Standard formats 750B; 621; 120-7; 12 listed formats
Ordering model HT-023
Price Request a Quote
Construction options Multiple woven media grades; Panel and port layouts by drawing; Application-specific dewatering media
MOQ Quoted by the selected supply unit and quantity
Packaging Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-023-P005 750B Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P007 621 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P008 120-7 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P009 758 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P010 747 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P011 260 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P012 240 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P013 130 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P014 108C Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P015 3927 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P018 750A Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote
HT-023-P019 740 Polyester, polypropylene and other woven filter cloth grades Fabric grade / fitted panel Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Sludge dewatering
  • Sand washing presses
  • Coal washing filtration
Customization Options

Filter Press Cloth Panels Ordering Options

Send Requirement ->

For Filter Press Cloth Panels, specify plate dimensions, port positions, fixing details and cloth grade.

  • Dimensions and construction Specify plate dimensions, port positions, fixing details and cloth grade.
  • Material Polyester, polypropylene and other woven filter cloth grades
  • Supply and packing Rolls protected on cores; cut sheets separated and packed flat or rolled to suit the material.
FAQ

Frequently Asked Questions

Which filter-cloth grades are listed?

The 12 listed grade codes are 750B, 621, 120-7, 758, 747, 260, 240, 130, 108C, 3927, 750A and 740. The table does not assign a panel size or individual fiber composition to each code.

What layout details are needed for a filter-press cloth panel?

The construction options specify panel and port layouts by drawing. Include the panel outline and port positions with the selected media grade; grade selection alone does not define a finished panel.

What material is used for Filter Press Cloth Panels?

The specified material is polyester, polypropylene and other woven filter cloth grades.

What should I include in a quotation request?

For model HT-023, send the selected SKU and order quantity. Include media grade code, panel dimensions, port layout and drawing. Pricing is by quotation for the selected specification and quantity.
