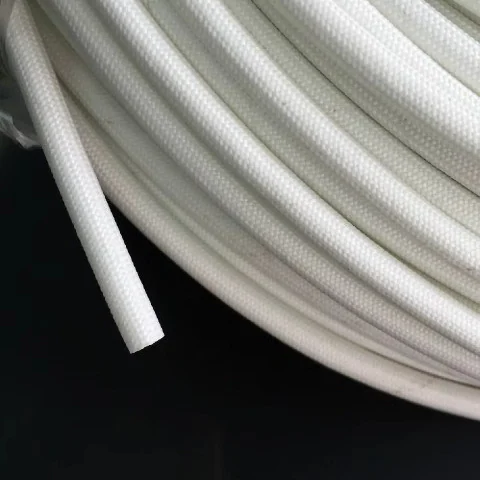

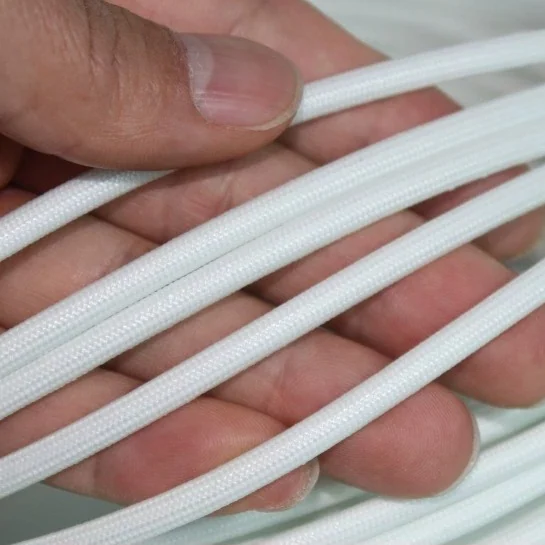

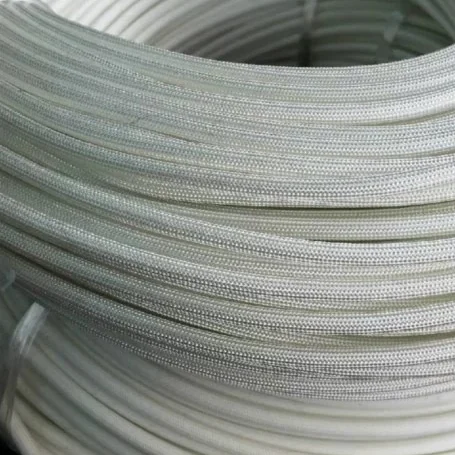

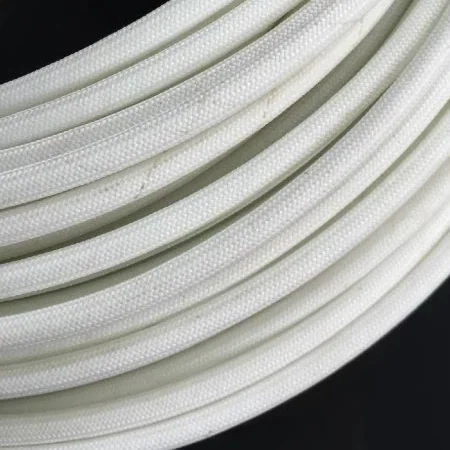

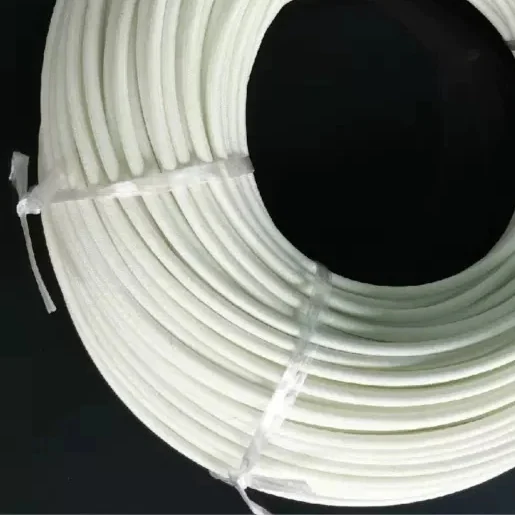

Coated Fiberglass Electrical Sleeving

Coated fiberglass sleeving in 1–30 mm listed sizes for motor leads, electrical harnesses and protective wire routing.

  • Coated glass-fiber braid
  • Wide diameter selection
  • 50–200 m listed coils
Request a Quote -> Custom Size ->
Product Overview

Coated Fiberglass Electrical Sleeving Supplier

The coated braid forms a flexible tube around insulated conductors. It is selected as a complete sleeve construction, not just as fiberglass yarn. Match the inside diameter to the finished bundle and choose the coating within the electrical assembly's design, including its bending and termination requirements.

Technical Specifications

Product Parameters

Material and construction Coated braided fiberglass sleeve
Standard formats 1 mm 200 m / roll; 1.5 mm 200 m / roll; 2 mm 200 m / roll; 19 listed formats
Ordering model HT-055
Price Request a Quote
Construction options Coated glass-fiber braid; Wide diameter selection; 50–200 m listed coils
MOQ Quoted by the selected supply unit and quantity
Packaging Cut pieces protected from deformation and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-055-P001 1 mm 200 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P002 1.5 mm 200 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P003 2 mm 200 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P004 2.5 mm 200 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P005 3 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P006 4 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P007 5 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P008 6 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P009 8 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P010 9 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P011 10 mm 100 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P012 12 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P013 14 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P014 16 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P015 18 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P016 20 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P017 22 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P018 25 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote
HT-055-P019 30 mm 50 m / roll Coated braided fiberglass sleeve Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Motor lead insulation
  • Electrical harness routing
  • Wire joint covers
Customization Options

Coated Fiberglass Electrical Sleeving Ordering Options

Send Requirement ->

For Coated Fiberglass Electrical Sleeving, specify finished thickness, width, cut outline and the required quantity.

  • Dimensions and construction Specify finished thickness, width, cut outline and the required quantity.
  • Material Coated braided fiberglass sleeve
  • Supply and packing Cut pieces protected from deformation and packed in cartons.
FAQ

Frequently Asked Questions

Which diameter and coil-length groups are listed for coated sleeving?

Listed 1, 1.5, 2 and 2.5 mm sizes use 200 m rolls. Selected 3–10 mm sizes use 100 m rolls, and selected 12–30 mm sizes use 50 m rolls. Use the exact diameter entry rather than treating those ranges as continuous.

Is a particular coating chemistry specified for the sleeving?

The material is described as coated braided fiberglass sleeve, but a specific coating chemistry is not named. Include any coating requirement along with the selected diameter and length so it can be confirmed.

What material is used for Coated Fiberglass Electrical Sleeving?

The specified material is coated braided fiberglass sleeve.

What should I include in a quotation request?

For model HT-055, send the selected SKU and order quantity. Include sleeve diameter, listed coil length and any required coating specification. Pricing is by quotation for the selected specification and quantity.
