Stainless Steel Shim Set

Assorted stainless steel shim plates for machine alignment, spacing adjustment, equipment maintenance, and precision fitting work.

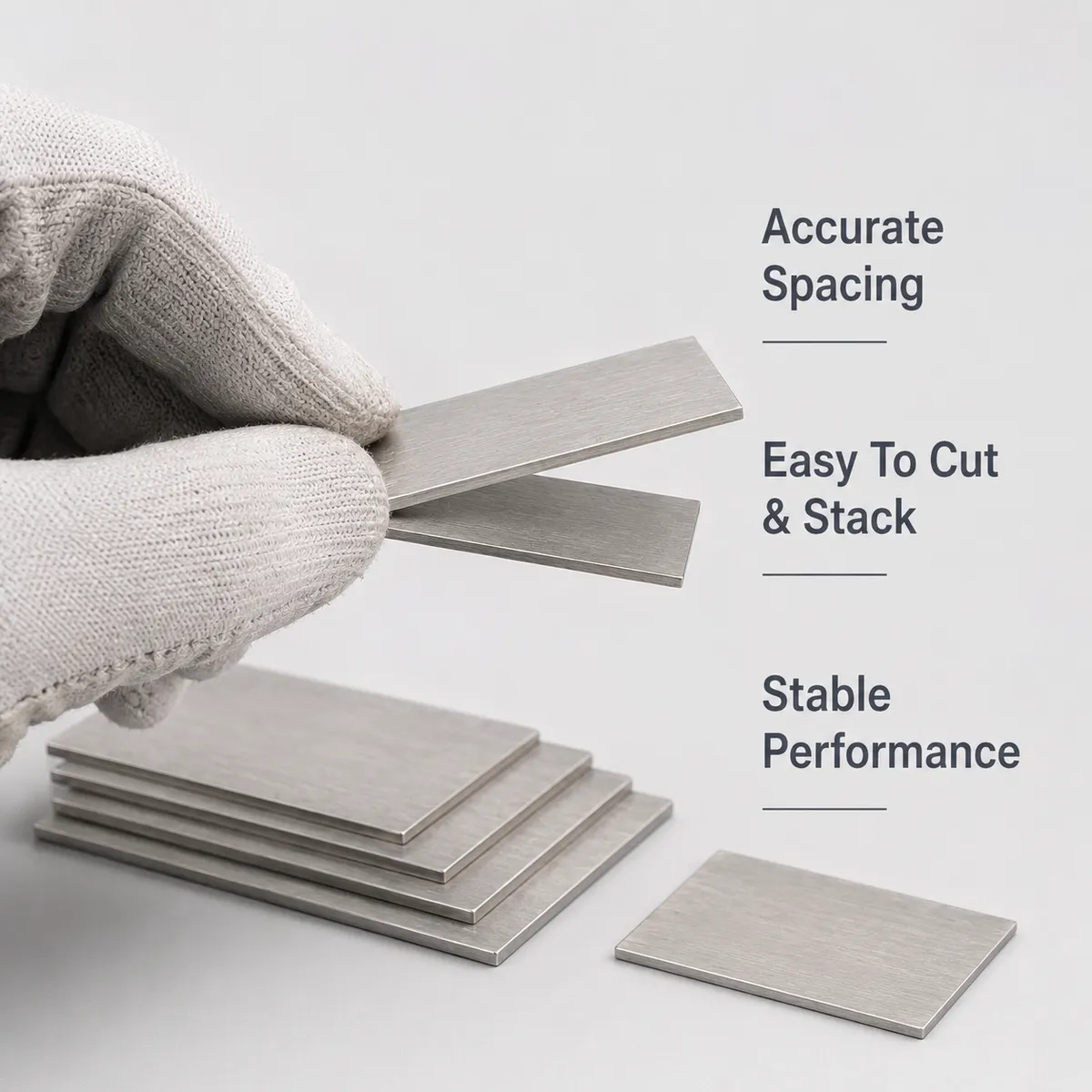

Flat stainless steel plates, easy to cut and stack, corrosion resistant, stable spacing, smooth brushed surface, suitable for maintenance kits and bulk supply
MOQ: Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements
Material options: 304 stainless steel, 316 stainless steel optional for custom orders

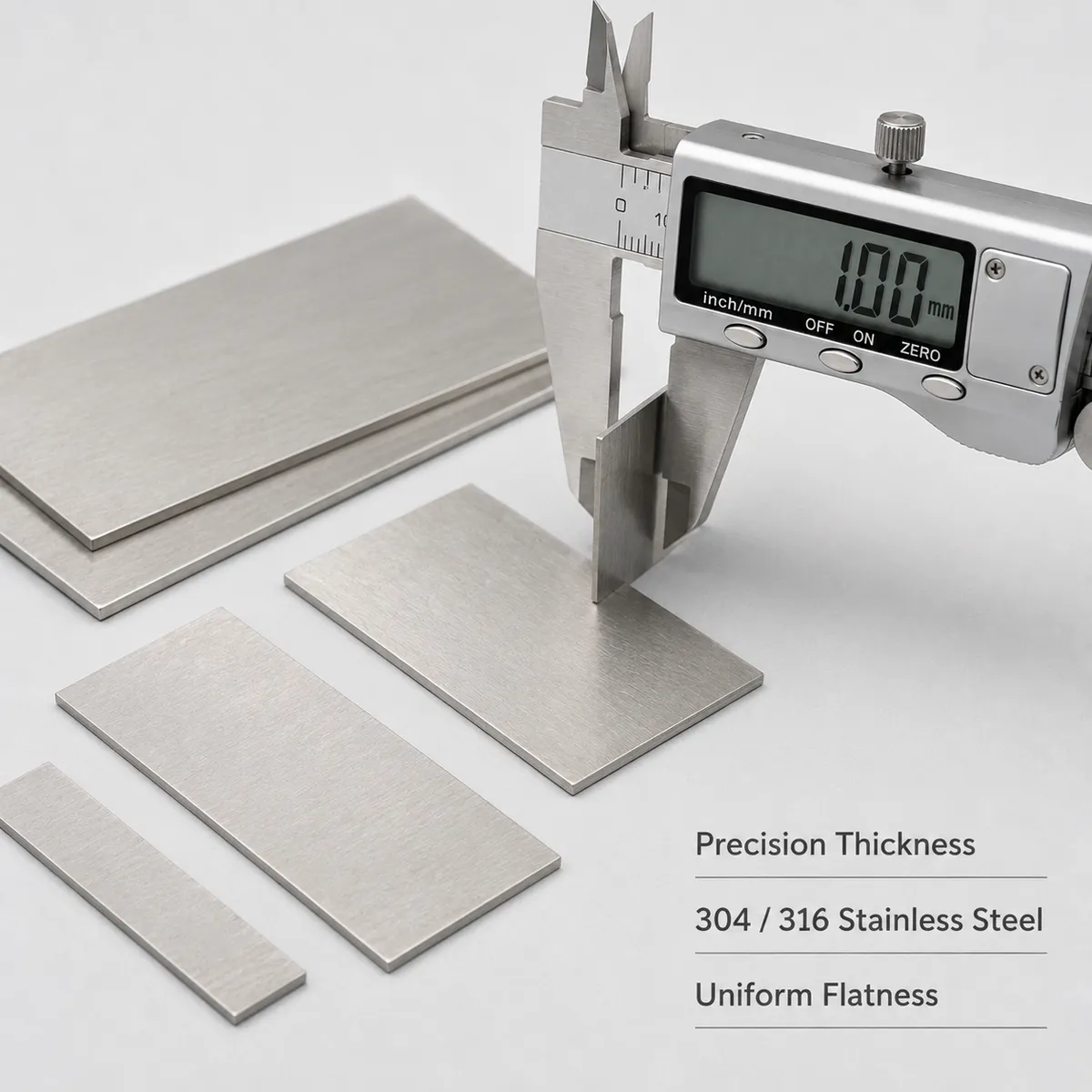

Size options: Common thicknesses include 0.10 mm, 0.20 mm, 0.50 mm, and 1.00 mm, custom thickness, width, length, and shapes available
Packaging: Carton packing, bulk packing or export packing can be discussed by order requirement.

Product Overview

Stainless Steel Shim Set Supplier

Assorted stainless steel shim plates for machine alignment, spacing adjustment, equipment maintenance, and precision fitting work. Typical use includes Machine alignment, equipment leveling, maintenance spacing, die setting, mold adjustment, motor base fitting, industrial repair kits. Formed or precision-cut industrial metal construction with the stated finish. Deburred cut edges; formed corners are checked for burrs before packing. Recommended operating range: Suitable for general industrial use; temperature performance depends on selected stainless steel grade and working environment

Technical Specifications

Product Parameters

Material	304 stainless steel; 316 stainless steel optional for custom orders
Temperature Range	Suitable for general industrial use; temperature performance depends on selected stainless steel grade and working environment
Size Options	Common thicknesses include 0.10 mm, 0.20 mm, 0.50 mm, and 1.00 mm; custom thickness, width, length, and shapes available
Color Options	Natural brushed stainless steel finish
Lead Time	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation

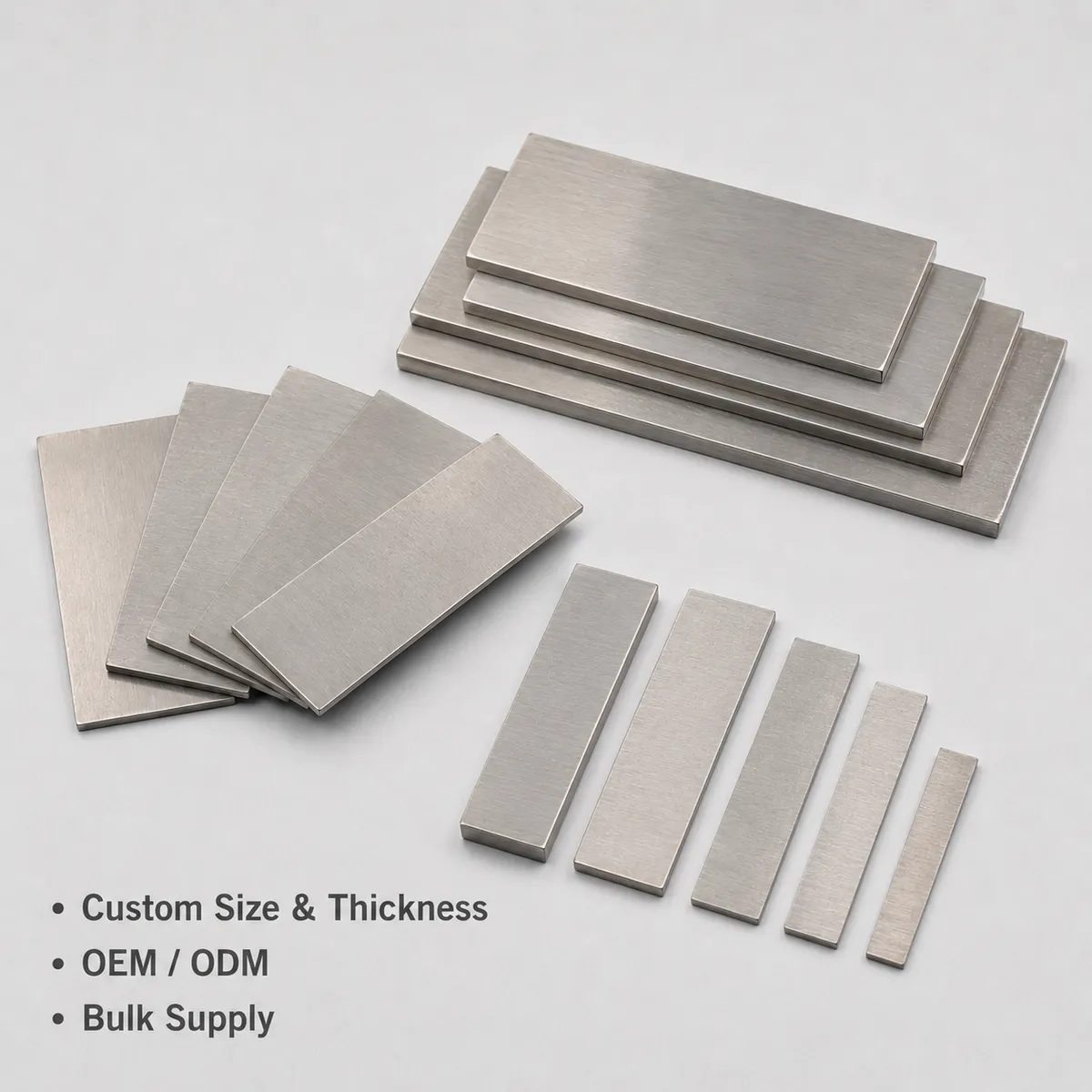

Customization	Custom thickness, cut size, hole position, shape, deburring, mixed kits, label packing, and OEM packing available
MOQ	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements
Packaging	Carton packing, bulk packing or export packing can be discussed by order requirement.

Purchasing and Engineering Notes

Stainless Steel Shim Set Procurement Details

Applicable sizes and tolerance	Common thicknesses include 0.10 mm, 0.20 mm, 0.50 mm, and 1.00 mm; custom thickness, width, length, and shapes available. Typical formed-part tolerance: +/-0.3 mm; hole position tolerance: +/-0.2 mm.
Structure, surface and edge	Formed or precision-cut industrial metal construction with the stated finish. Deburred cut edges; formed corners are checked for burrs before packing.
Reinforcement	Fiberglass reinforcement: not used unless stated in the selected material construction.
Material selection	304 stainless suits general industrial use; 316 is preferred when chloride exposure or stronger corrosion resistance is needed.
Recommended use temperature	Suitable for general industrial use; temperature performance depends on selected stainless steel grade and working environment
Packing and carton reference	10 or 20 pcs per labeled pack; 500 sets per carton
Standard MOQ	50 sets
Custom MOQ	300 sets
Sample policy	USD 10-20 plus freight for a stock set
Production cycle	Stock: 3-7 days; custom assortment: 10-15 days
Available test and inspection files	Dimensional inspection record, material declaration, finish reference photo and packing list.
Typical purchasing teams	Equipment fabricators, maintenance contractors, industrial distributors and OEM assemblers.

Ready Stock & Standard Sizes

Available Stock Specifications

The following specifications are available for quotation. MOQ and lead time are listed by standard size and custom requirement.

Request Stock Quote

SKU / Model	Size	Available Specification	Material	MOQ	Lead Time	Quotation Note
SS-SHIM-SET-010	50 x 100 mm / 100 x 100 mm common sizes	Assorted shim set, 0.10 mm thickness	304 stainless steel	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation	Ready stock for machine alignment and spacing
SS-SHIM-SET-020	50 x 100 mm / 100 x 100 mm common sizes	Assorted shim set, 0.20 mm thickness	304 stainless steel	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation	Suitable for maintenance and adjustment work
SS-SHIM-SET-050	50 x 100 mm / 100 x 100 mm common sizes	Assorted shim set, 0.50 mm thickness	304 stainless steel	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation	Common stock option for industrial spacing
SS-SHIM-SET-100	50 x 100 mm / 100 x 100 mm common sizes	Assorted shim set, 1.00 mm thickness	304 / 316 stainless steel optional	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation	Bulk supply and custom cutting available
SS-SHIM-CUSTOM	Made to drawing or sample	Custom thickness, width, length, and shape	304 / 316 stainless steel optional	Small MOQ available for standard sizes; custom sizes depend on thickness, material grade, and cutting requirements	Ready stock usually ships in 3–7 working days; custom cutting and packing usually need 10–20 working days after confirmation	For OEM orders, machine repair kits, and custom packs

Note: MOQ and lead time are based on the listed size, order quantity and packing requirement.

Send specification for quotation ->

Applications

Typical Applications

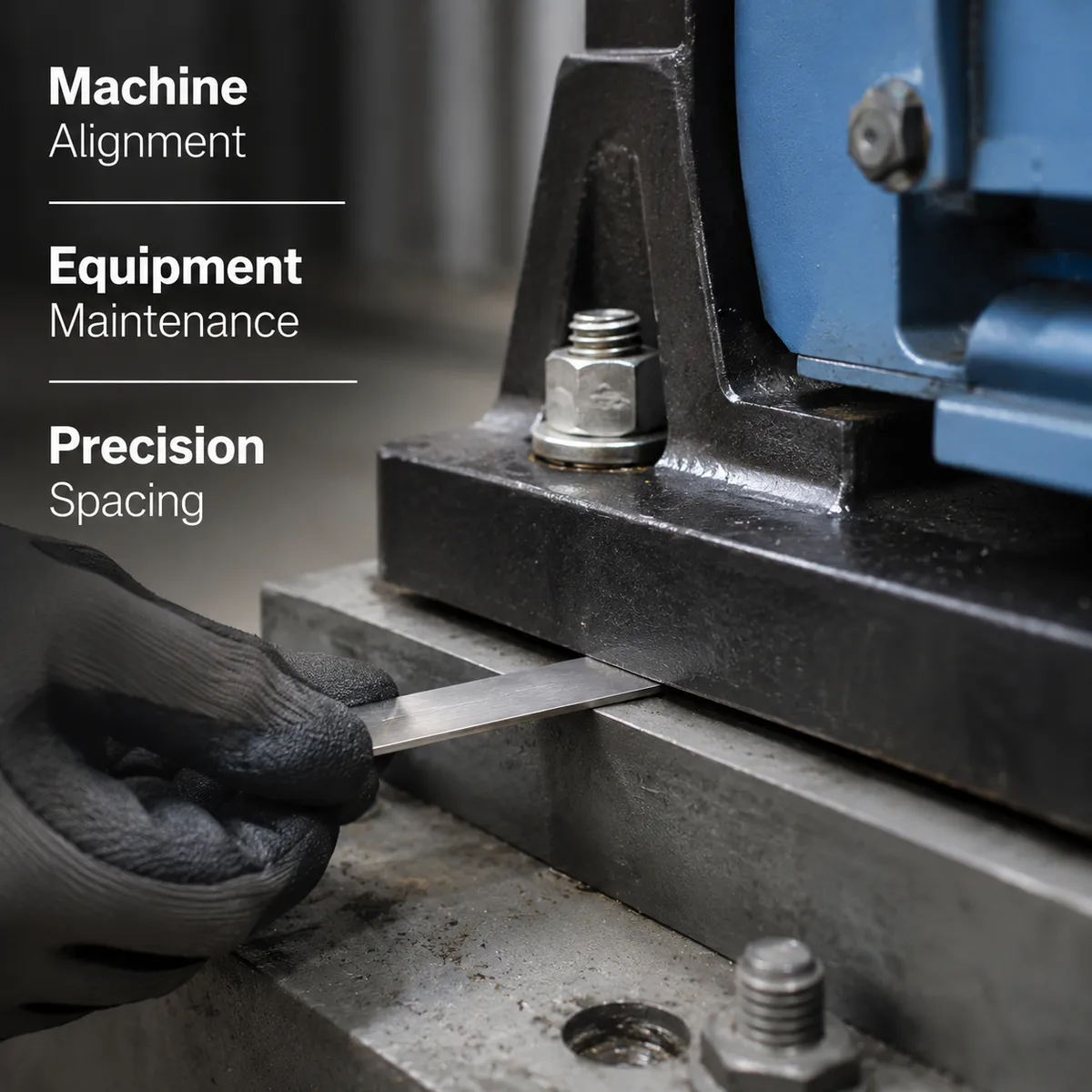

Machine alignment, equipment leveling, maintenance spacing, die setting, mold adjustment, motor base fitting, industrial repair kits

Customization Options

Size / Material / Color / Packaging / Logo

Send Requirement ->

Custom programme: Custom thickness, cut size, hole position, shape, deburring, mixed kits, label packing, and OEM packing available. Size and tolerance reference: Common thicknesses include 0.10 mm, 0.20 mm, 0.50 mm, and 1.00 mm; custom thickness, width, length, and shapes available. Typical formed-part tolerance: +/-0.3 mm; hole position tolerance: +/-0.2 mm. Packing and production reference: 10 or 20 pcs per labeled pack; 500 sets per carton Stock: 3-7 days; custom assortment: 10-15 days

Size Common thicknesses include 0.10 mm, 0.20 mm, 0.50 mm, and 1.00 mm, custom thickness, width, length, and shapes available
Material 304 stainless steel, 316 stainless steel optional for custom orders
Color Natural brushed stainless steel finish
Packaging Carton packing, bulk packing or export packing can be discussed by order requirement.
Logo Logo, label or buyer mark can be discussed by order requirement

FAQ

Frequently Asked Questions

Can you supply mixed thickness shim sets?

Yes, mixed thickness sets can be packed according to common maintenance needs or buyer-provided specifications.

Can the shim plates be cut to custom sizes?

Yes, custom length, width, thickness, hole position, and shape can be produced based on drawings or samples.

What stainless steel grades are available?

304 stainless steel is commonly supplied, and 316 stainless steel can be quoted for applications requiring higher corrosion resistance.

What information is needed for a quotation?

Please provide thickness, size, material grade, quantity, tolerance requirements, and whether custom packing is needed.

Do you support bulk packing or OEM shim kits?

Yes, bulk packing and custom shim kit packing are available for distributors, maintenance suppliers, and OEM buyers.

What are the standard and custom order quantities for Stainless Steel Shim Set?

Standard MOQ: 50 sets. Custom MOQ: 300 sets. Stock: 3-7 days; custom assortment: 10-15 days.

What packing and technical files can be supplied with Stainless Steel Shim Set?

10 or 20 pcs per labeled pack; 500 sets per carton Available files include: Dimensional inspection record, material declaration, finish reference photo and packing list.
