Metric and Imperial FEP Tubing

FEP tubing in metric and imperial connection sizes for visible liquid transfer and laboratory fluid assemblies.

  • Metric and imperial options
  • Visible fluid path
  • Colored routing variants
Request a Quote -> Custom Size ->
Product Overview

Metric and Imperial FEP Tubing Supplier

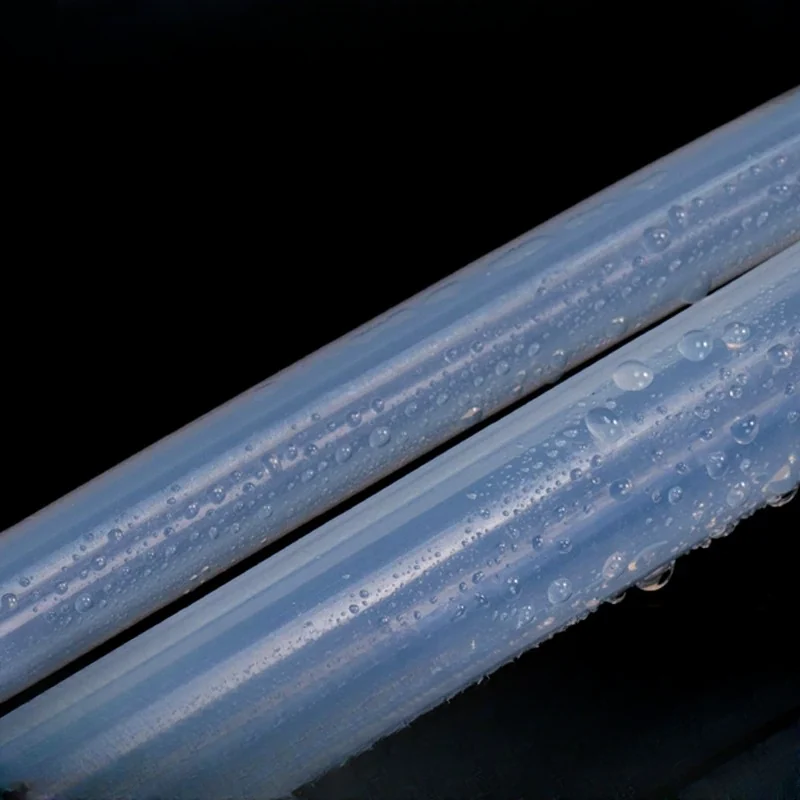

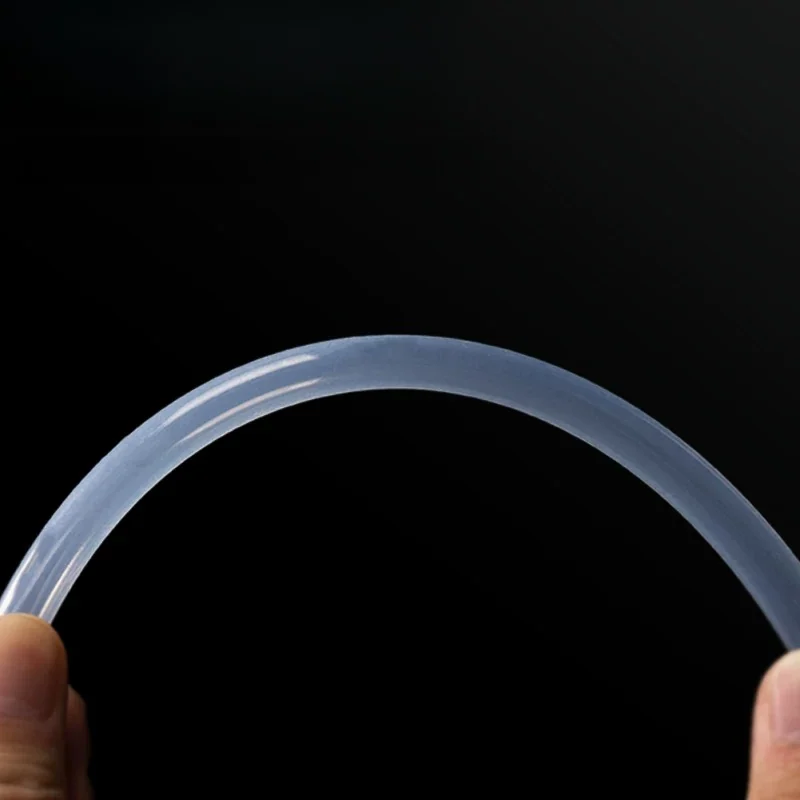

FEP provides a translucent or clear line for observing flow and routing small process circuits. Metric and imperial dimensions belong to different fitting systems even when they appear similar. Specify the actual inside and outside diameters, the fitting family and the required color before ordering a replacement line.

Technical Specifications

Product Parameters

Material and construction FEP fluoropolymer
Standard formats ID 0.8 mm × OD 1.6 mm × 5 m; ID 1 mm × OD 2 mm × 5 m; ID 1 mm × OD 3 mm × 5 m; 60 listed formats
Ordering model HT-038
Price Request a Quote
Construction options Metric and imperial options; Visible fluid path; Colored routing variants
MOQ Quoted by the selected supply unit and quantity
Packaging Coils or matched sets protected against sharp bends and packed in cartons.
Models & Available Formats

Available Stock Specifications

Choose a listed specification and quantity for a quotation. Dimensions, material construction and pack formats are shown by model.

Request Model Quote
SKU / Model Available Specification Material Supply Format Price
HT-038-001 ID 0.8 mm × OD 1.6 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-002 ID 1 mm × OD 2 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-003 ID 1 mm × OD 3 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-004 ID 1.5 mm × OD 3 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-005 ID 1.6 mm × OD 3.2 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-006 ID 2 mm × OD 3 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-007 ID 2 mm × OD 4 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-008 ID 2.5 mm × OD 4 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-009 ID 3 mm × OD 4 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-010 ID 3 mm × OD 5 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-011 ID 3 mm × OD 6 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-012 ID 4 mm × OD 5 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-013 ID 4 mm × OD 6 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-014 ID 4 mm × OD 7 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-015 ID 5 mm × OD 6 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-016 ID 5 mm × OD 7 mm × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-017 ID 5 mm × OD 8 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-018 ID 6 mm × OD 7 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-019 ID 6 mm × OD 8 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-020 ID 6 mm × OD 9 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-021 ID 6 mm × OD 10 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-022 ID 6.5 mm × OD 10 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-023 ID 7 mm × OD 9 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-024 ID 7 mm × OD 10 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-025 ID 8 mm × OD 10 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-026 ID 8 mm × OD 11 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-027 ID 8 mm × OD 12 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-028 ID 9 mm × OD 11 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-029 ID 9 mm × OD 12 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-030 ID 10 mm × OD 12 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-031 ID 10 mm × OD 13 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-032 ID 10 mm × OD 14 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-033 ID 11 mm × OD 13 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-034 ID 12 mm × OD 14 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-035 ID 12 mm × OD 16 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-036 ID 13 mm × OD 15 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-037 ID 14 mm × OD 16 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-038 ID 14 mm × OD 18 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-039 ID 15 mm × OD 17 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-040 ID 16 mm × OD 18 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-041 ID 16 mm × OD 19 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-042 ID 16 mm × OD 20 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-043 ID 17 mm × OD 19 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-044 ID 17 mm × OD 20 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-045 ID 18 mm × OD 20 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-046 ID 18 mm × OD 21 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-047 ID 18 mm × OD 22 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-048 ID 19 mm × OD 21 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-049 ID 19 mm × OD 23 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-050 ID 20 mm × OD 25 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-051 ID 25 mm × OD 29 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-052 ID 1.58 mm × OD 3.17 mm (1/8 in OD) × 5 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-053 ID 3.17 mm × OD 6.35 mm (1/4 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-054 ID 4.35 mm × OD 6.35 mm (1/4 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-055 ID 6.35 mm × OD 9.52 mm (3/8 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-056 ID 9.6 mm × OD 12.7 mm (1/2 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-057 ID 15.88 mm × OD 19.05 mm (3/4 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-058 ID 22.2 mm × OD 25.4 mm (1 in OD) × 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-059 Red; ID 4 mm × OD 6 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote
HT-038-060 Red; ID 6 mm × OD 8 mm 1 m FEP fluoropolymer Roll / cut length Request a Quote

Note: Each line identifies a specification for quotation. Pricing covers the selected format, quantity, packing and delivery schedule.

Send specification for quotation ->
Applications

Typical Applications

  • Laboratory fluid circuits
  • Process sampling connections
  • Small chemical transfer lines
Customization Options

Metric and Imperial FEP Tubing Ordering Options

Send Requirement ->

For Metric and Imperial FEP Tubing, specify inside diameter, outside diameter where applicable, cut length and connection layout.

  • Dimensions and construction Specify inside diameter, outside diameter where applicable, cut length and connection layout.
  • Material FEP fluoropolymer
  • Supply and packing Coils or matched sets protected against sharp bends and packed in cartons.
FAQ

Frequently Asked Questions

How are FEP tube sizes and lengths specified?

Entries give paired inside and outside diameters and, where stated, a length. Examples include ID 0.8 × OD 1.6 mm × 5 m, ID 5 × OD 8 mm × 1 m, and ID 6.35 × OD 9.52 mm × 1 m. Use the numerical diameter pair rather than an abbreviated size label.

Are colored FEP tube formats listed?

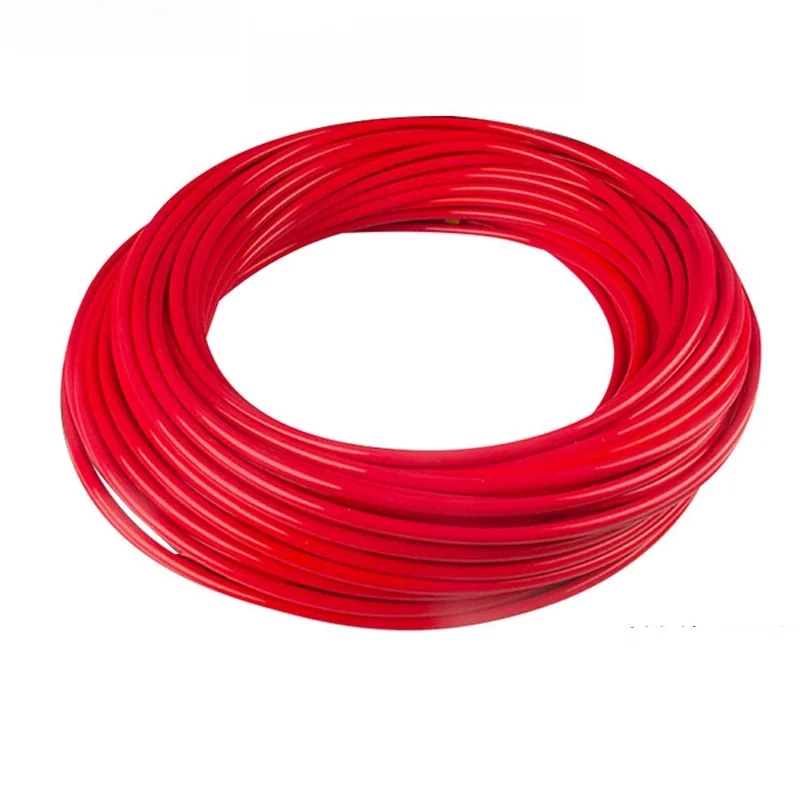

Yes. Separate red entries are listed at ID 4 × OD 6 mm × 1 m and ID 6 × OD 8 mm × 1 m. The construction options also describe a visible fluid path; color and dimensions should be selected together.

What material is used for Metric and Imperial FEP Tubing?

The specified material is FEP fluoropolymer.

What should I include in a quotation request?

For model HT-038, send the selected SKU and order quantity. Include inside diameter, outside diameter, listed length and color variant. Pricing is by quotation for the selected specification and quantity.
